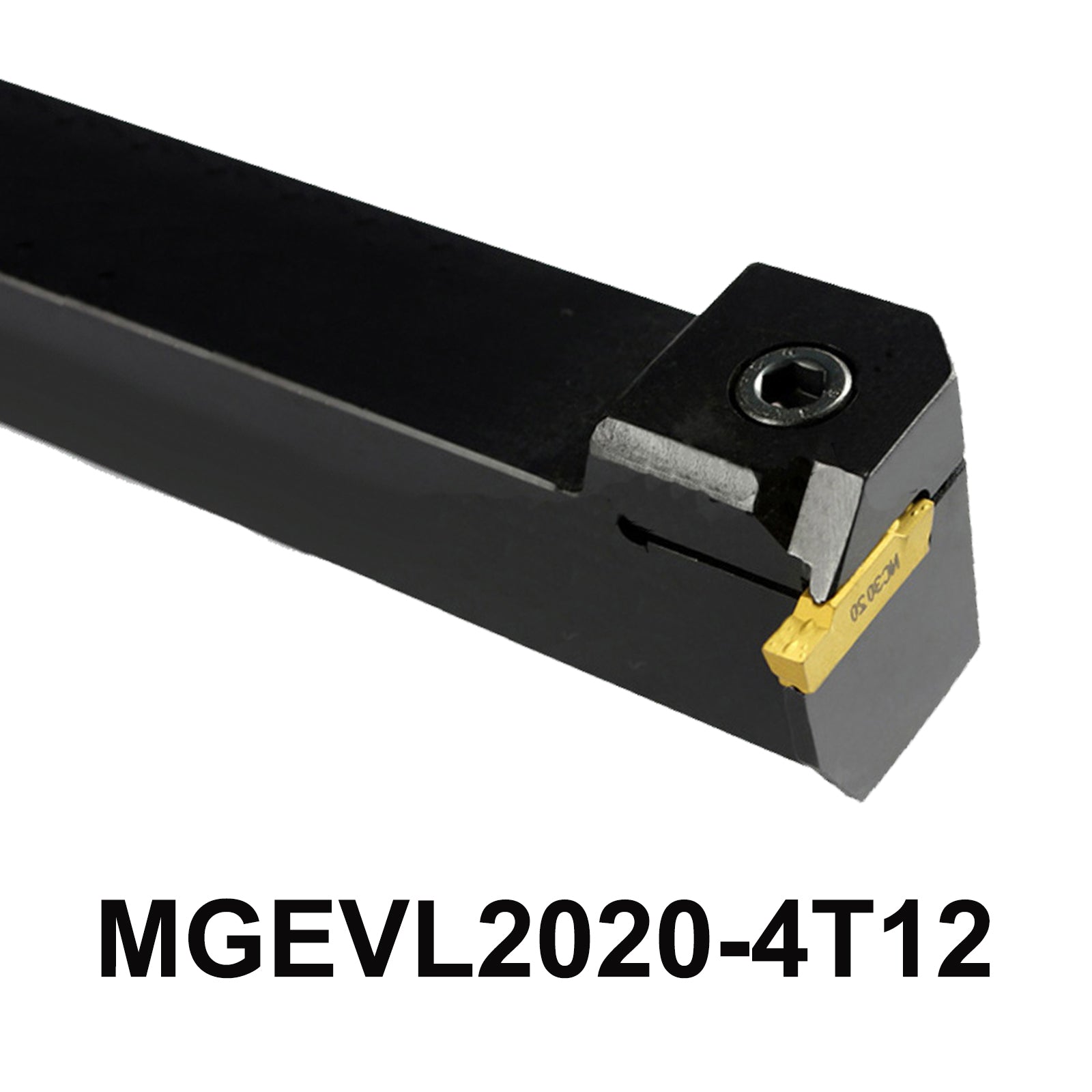

MGEVL2020-4T12 Slotting Tool Holder for Precision CNC Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MGEVL2020-4T12 Slotting Tool Holder is designed for CNC machining professionals seeking precision and efficiency.
With a compact size of 20mm x 20mm x 125mm and a cutting width of 4mm, this tool is perfect for detailed grooving tasks. Its robust construction allows for a maximum cutting depth of 6mm,compatible with MGMN400-M inserts,making it versatile for various applications
Product parameters:
-
Tool Holder Model: MGEVL2020-4T12
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 20 * 20 * 125 mm
- Tmax : 6 mm
-
Cutting Width : About 4 mm
-
Applicable blade : MGMN400-M
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVL2020-4T12 Slotting Tool Holder
1 * "T" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVL2020-4T12 External Grooving Turning Tools MGEVL2020-4T12 MGEVL2020 MGEVL2020 4T12 CNC Lathe Cutter Holder Machine Metal Tool
-
Precision Engineering: MGEVL2020-4T12 Slotting Tool Holder
-
Achieve Optimal Grooving Performance with MGEVL2020-4T12
5-Point Description
- Compact and Robust Design: The MGEVL2020-4T12 Slotting Tool Holder features a size of 20mm x 20mm x 125mm, providing a sturdy tool holder ideal for precision grooving operations in tight spaces.
- Efficient Cutting Width: With a cutting width of 4mm, this tool delivers clean, precise grooves, enhancing the quality of your machining projects.
- Maximum Cutting Depth: Capable of achieving a maximum cutting depth of 6mm, it offers versatility for various grooving applications without compromising stability.
- All-in-One Package: The tool holder comes complete with M6*20 screws and an L5 wrench, ensuring a hassle-free setup right out of the box.
- Versatile Insert Compatibility: Designed to work seamlessly with MGMN400-M inserts, this tool holder provides the flexibility needed for diverse materials and applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
