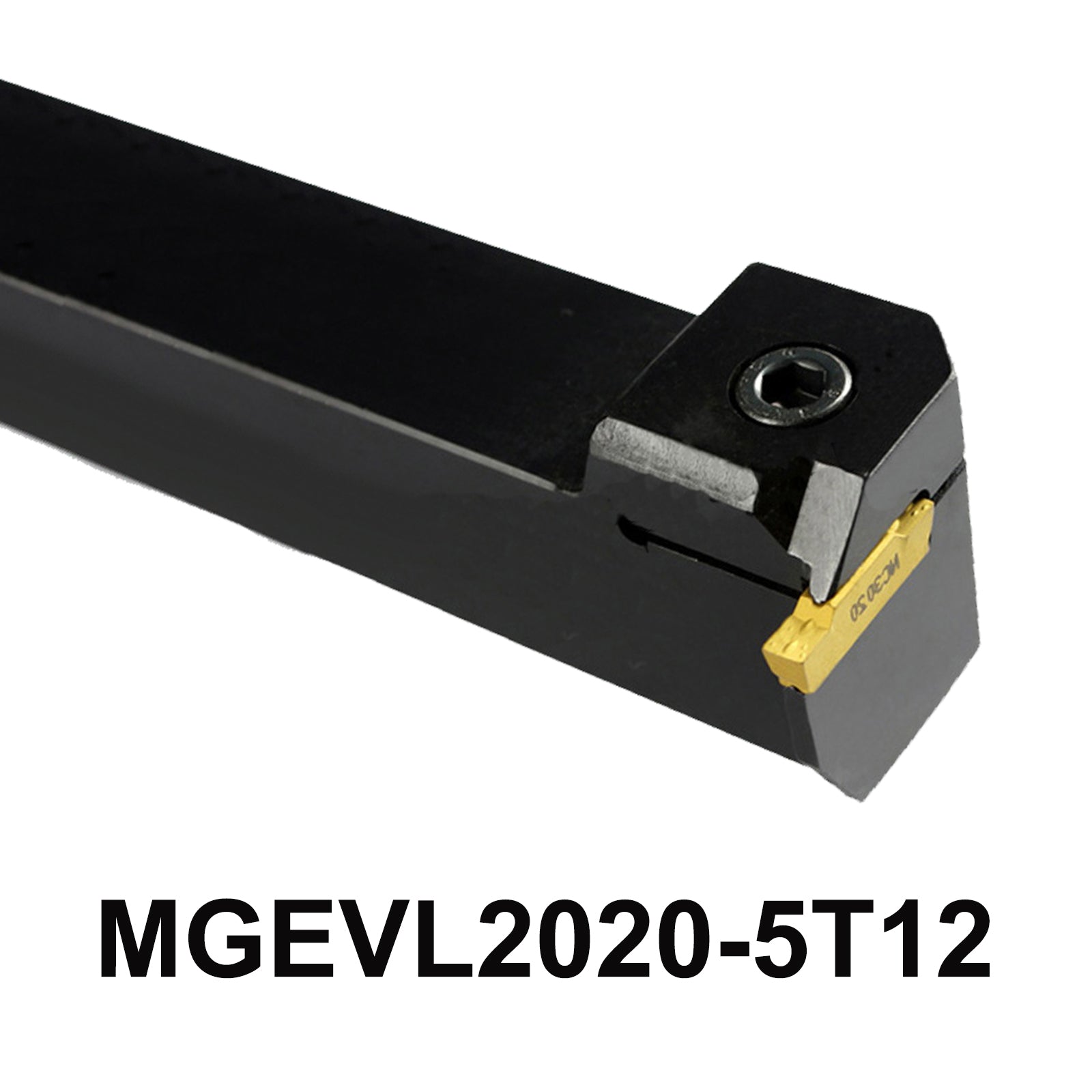

High-Quality MGEVL2020-5T12 External Grooving Tool Holder | CNC Lathe Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MGEVL2020-5T12 External Grooving Tool Holder is designed for CNC machining professionals seeking precision and efficiency.
With a compact size of 20mm x 20mm x 125mm and a cutting width of 5mm, this tool is perfect for detailed grooving tasks. Its robust construction allows for a maximum cutting depth of 6mm,compatible with MGMN500 inserts,making it versatile for various applications
Product parameters:
-
Tool Holder Model: MGEVL2020-5T12
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 20 * 20 * 125 mm
- Tmax : 6 mm
-
Cutting Width : About 5 mm
-
Applicable blade : MGMN500
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVL2020-5T12 External Grooving Tool Holder
1 * "T" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVL2020-5T12 External Grooving Turning Tools MGEVL2020-5T12 MGEVL2020 MGEVL2020 5T12 CNC Lathe Cutter Holder Machine Metal Tool
-
Key Features of the MGEVL2020-5T12 External Grooving Tool Holder
-
Why Choose This Grooving Tool Holder for Your CNC Needs
5-Point Description
-
Precision Design: The MGEVL2020-5T12 External Grooving Tool Holder measures 20x20x125mm with a cutting width of 5mm, engineered to deliver precise and consistent grooves in your machining projects.
-
Maximum Depth Capability: Featuring a maximum cutting depth of 6mm, this tool holder is versatile enough for various grooving applications, enhancing your machining flexibility.
-
Complete Installation Kit: The package includes M6 screws and an L5 wrench, ensuring you have all the essential tools needed for quick and easy setup, so you can start working right away.
-
Wide Compatibility: Designed for use with MGMN500 inserts, this holder supports a variety of machining materials, making it an invaluable addition to your CNC toolkit.
-
Durable Construction: Made from high-quality materials, this grooving cutting holder is built to withstand the demands of CNC machining, providing you with long-lasting performance and reliability.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
