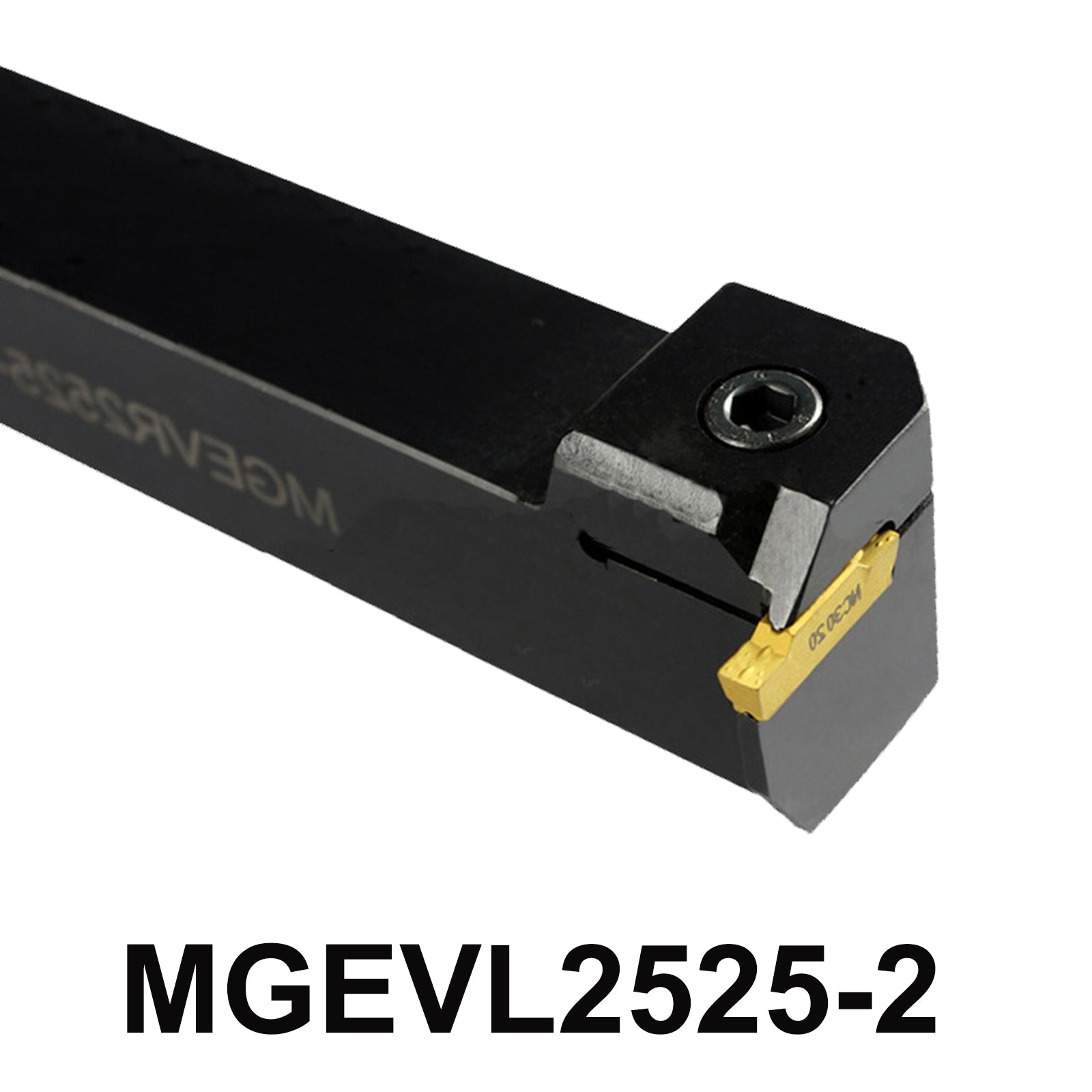

Buy MGEVL2525-2 External Lathe Grooving Cut Off Tool Holder| 2mm Cutting Width, MGMN200 Inserts Compatible
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MGEVL2525-2 External Lathe Grooving Cut Off Tool Holder is engineered for precision and durability in external grooving operations.
With dimensions of 25x25x150mm and a cutting width of 2mm. Compatible with MGMN200 inserts
Product parameters:
-
Tool Holder Model: MGEVL2525-2
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 150 mm
- Tmax : 6 mm
-
Cutting Width : About 2 mm
-
Applicable blade : MGMN200
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVL2525-2 External Lathe Grooving Cut Off Tool Holder
1 * "T" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVL2525-2 External Lathe Grooving Cut Off Tool Holder MGEVL2525-2 MGEVL2525 MGEVL2525 2 CNC Lathe Cutter Holder Machine Metal Tool
High-Performance External Grooving Toolholder for CNC Lathes | MGEVL2525-2
Key Features of the MGEVL2525-2 External Grooving Toolholder
5-Point Description
-
Precision External Grooving: The MGEVL2525-2 External Grooving Toolholder features a cutting width of 2mm and a maximum cutting depth (Tmax) of 6mm, allowing for precise external grooving in a wide range of CNC lathe applications. Perfect for producing clean, sharp grooves with exceptional accuracy.
-
Durable, High-Quality Alloy Construction: Crafted from high-quality hard alloy, the MGEVL2525-2 offers superior wear resistance and extended tool life. The wear-resistant coating ensures consistent performance even under demanding machining conditions, making it ideal for long-lasting use in industrial environments.
-
Optimized Cutting Geometry: This toolholder is designed with a smooth cutting geometry to minimize cutting resistance, reduce tool wear, and achieve optimal surface finishes. Its advanced design enhances cutting efficiency, helping you get the most out of your CNC machine.
-
Comprehensive Tool Kit: The MGEVL2525-2 package includes the toolholder, M6*20 screws, and an L5 wrench, providing all necessary components for easy installation and quick setup. The inclusion of the appropriate screws and wrench ensures secure mounting, reducing setup time and increasing productivity.
-
Compatible with MGMN200 Inserts: The toolholder is fully compatible with MGMN200 inserts, known for their superior cutting performance and versatility. The combination of the MGEVL2525-2 toolholder and MGMN200 inserts is designed to provide reliable, high-precision results across a wide range of machining applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
