Buy MGEVR1616-1.5 CNC External Grooving Toolholder | Durable, Wear-Resistant, Smooth Cutting Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

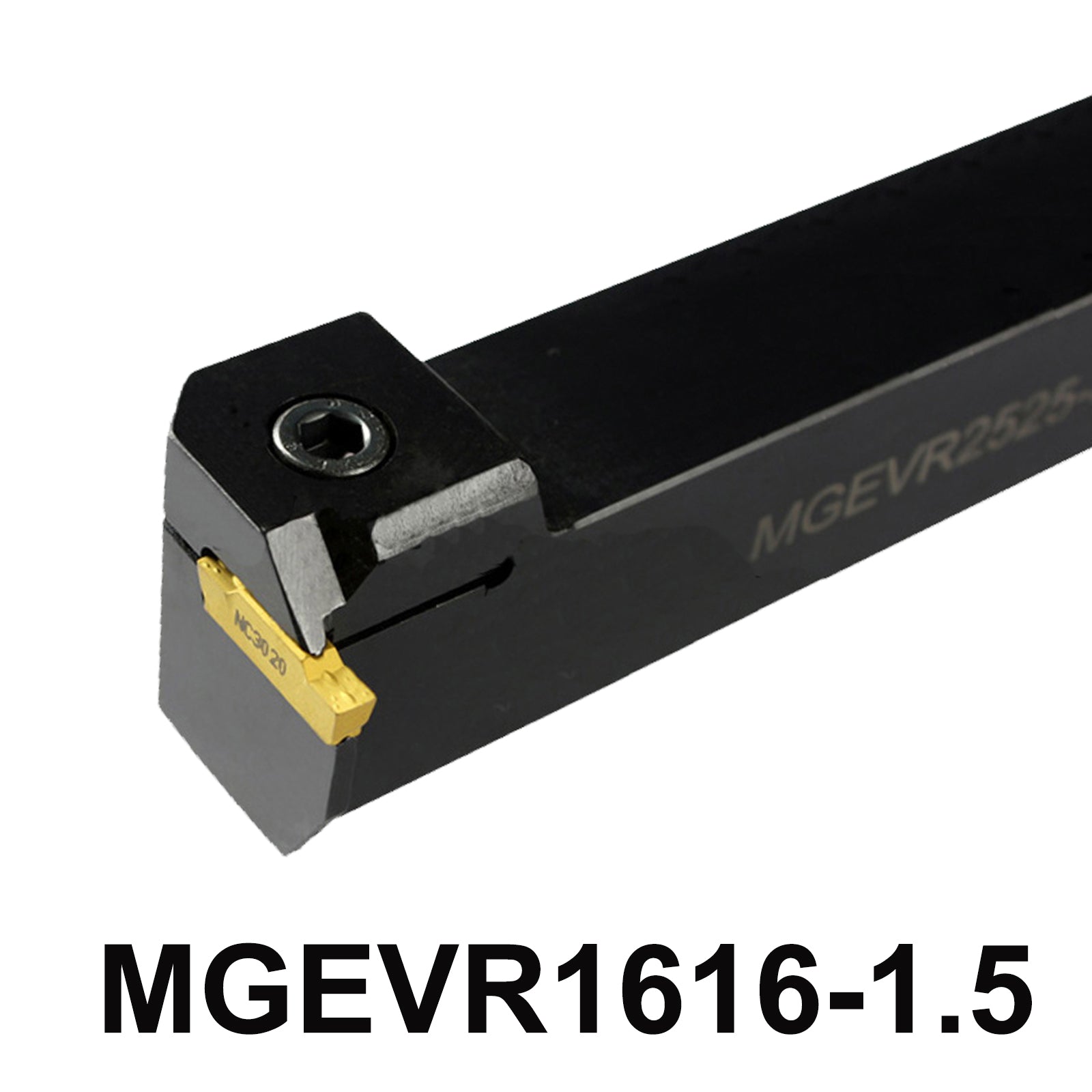

The MGEVR1616-1.5 CNC External Grooving Toolholder is engineered for precision and durability in external grooving operations.
With dimensions of 16x16x100mm and a cutting width of 1.5mm. Compatible with MGMN150-M inserts
Product parameters:
-
Tool Holder Model: MGEVR1616-1.5
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
- Tmax : 5 mm
-
Cutting Width : About 1.5 mm
-
Applicable blade : MGMN150-M
-
Screw : M5*20
-
Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVR1616-1.5 External Grooving Turning Tool
1 * "T" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVR1616-1.5T10 External Grooving Turning Tools MGEVR1616-1.5T10 MGEVR1616 MGEVR1616 1.5T10 CNC Lathe Cutter Holder Machine Metal Tool
Elevate Your Machining with the MGEVR1616-1.5 External Grooving Toolholder
Durable, High-Quality Toolholder Designed for Smooth, Efficient Grooving
5-Point Description
-
Precision External Grooving: The MGEVR1616-1.5 toolholder is optimized for external grooving operations with a cutting width of 1.5mm and a maximum cutting depth of 5mm, ideal for precise groove cutting on a variety of materials.
-
Built for Durability: Manufactured from high-quality hard alloy, the MGEVR1616-1.5 toolholder features a wear-resistant coating that enhances the tool's lifespan and minimizes the need for frequent replacements, making it a cost-effective solution.
-
Smooth Cutting Geometry: The toolholder is designed with a smooth cutting geometry that ensures clean and precise cuts while reducing vibrations, offering superior performance and a smoother machining experience.
-
Easy Setup and Compatibility: The MGEVR1616-1.5 package includes everything you need for easy installation: M5*20 screws and a L4 wrench. It's also compatible with MGMN150-M inserts, giving you flexibility and consistent performance for a wide range of applications.
-
Improved Tool Longevity: Thanks to its robust construction and wear-resistant coating, this toolholder effectively improves tool life, allowing for longer continuous operations with minimal maintenance, which translates into increased productivity and reduced downtime.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
