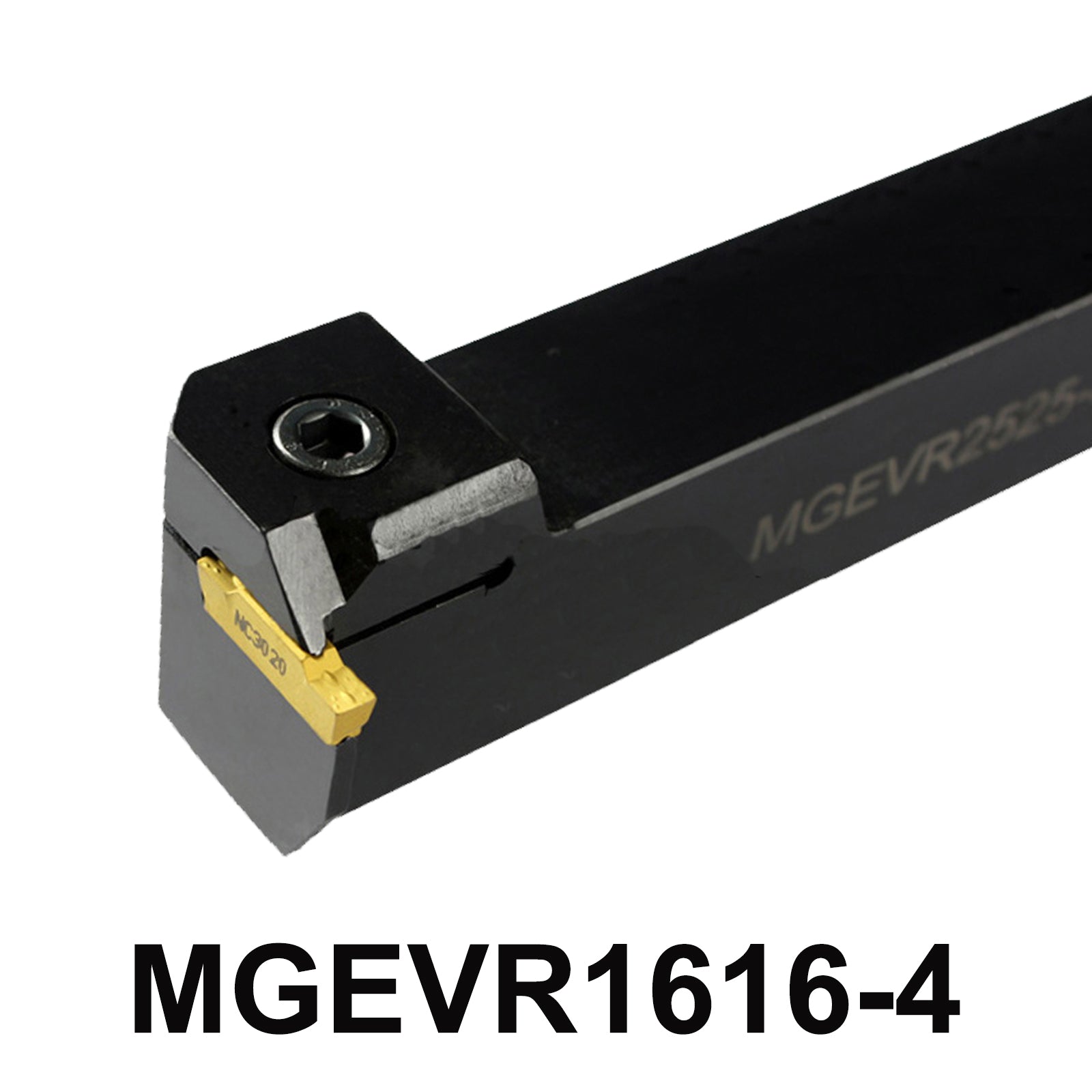

MGEVR1616-4 External Grooving Turning Tool Holder for CNC Lathes - High Quality, Wear-Resistant & Precision Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MGEVR1616-4 External Grooving Turning Tool is a high-performance CNC lathe accessory designed for precision grooving tasks.
With dimensions of 16x16x100mm and a cutting width of 4mm. Compatible with MGMN400-M inserts
Product parameters:
-
Tool Holder Model: MGEVR1616-4
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
- Tmax : 7mm
-
Cutting Width : About 4 mm
-
Applicable blade : MGMN400-M
-
Screw : M5*20
- Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVR1616-4 External Grooving Turning Tool
1 * "T" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVR1616-4 External Grooving Turning Tool MGEVR1616-4 MGEVR1616 MGEVR1616 4 CNC Lathe Cutter Holder Machine Metal Tool
-
High-Quality Tool Holder for Grooving and Turning – Improve Efficiency and Tool Life
-
Durable, Wear-Resistant CNC Lathe Cutter with Smooth Cutting Geometry
5-Point Description
-
Premium Build Quality: The MGEVR1616-4 External Grooving Turning Tool is crafted from high-quality hard alloy, ensuring durability and excellent resistance to wear and tear for long-lasting performance.
-
Enhanced Tool Life: Featuring a smooth cutting geometry and a high-quality wear-resistant coating, this CNC lathe tool holder effectively extends the tool life, reducing the frequency of replacements and improving overall efficiency.
-
Wide Compatibility: Designed to be compatible with the MGMN400-M inserts, this tool holder is ideal for external grooving and turning applications, ensuring versatility across various machining tasks.
-
Precision and Accuracy: With a cutting width of 4mm and a maximum cutting depth (Tmax) of 7mm, this tool provides excellent precision and accuracy for fine grooving and turning operations on CNC machines.
-
Complete Package: The package includes the tool holder, necessary M5x20 screws, and an L4 wrench for easy setup and use. Everything you need to start machining right out of the box.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
