Purchase MGEVR2020-2.5T12 Grooving Lathe Tool Holder – Ideal for CNC Machining Excellence
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the MGEVR2020-2.5T12 Grooving Lathe Tool Holder , your ideal solution for precise and efficient grooving in CNC lathe applications.
With dimensions of 20x20x125mm and a cutting width of 2.5mm. Compatible with MGMN250 inserts
Product parameters:
-

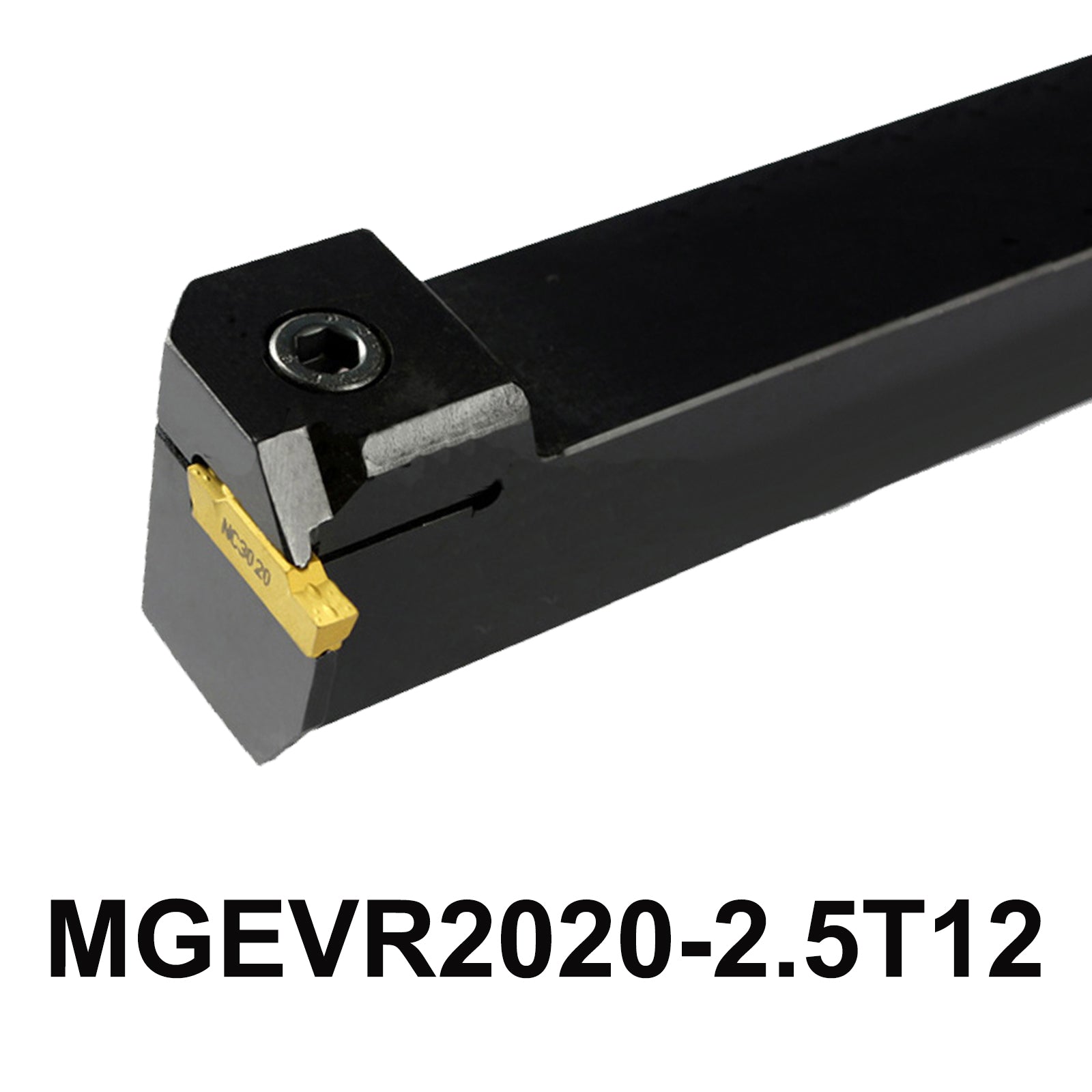

Tool Holder Model: MGEVR2020-2.5T12
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 20 * 20 * 125 mm
- Tmax : 6 mm
-
Cutting Width : About 2.5 mm
-
Applicable blade : MGMN250
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVR2020-2.5T12 Grooving Lathe Tool Holder
1 * "T" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVR2020-2.5T12 Grooving Lathe Tool Holder MGEVR2020-2.5T12 MGEVR2020 MGEVR2020 2.5T12 CNC Lathe Cutter Holder Machine Metal Tool
-
Transform Your CNC Machining with the MGEVR2020-2.5T12 Tool Holder
-
Key Features of the MGEVR2020-2.5T12 Grooving Lathe Tool Holder
5-Point Description
-
Precision Cutting Performance: With a compact size of 20mm x 20mm x 125mm and a cutting width of 2.5mm, the MGEVR2020-2.5T12 Grooving Lathe Tool Holder is designed for detailed grooving tasks, ensuring clean and accurate cuts every time.
-
Complete Installation Package: Each purchase includes the essential tool holder, M6*20 screws, and an L5 wrench, providing everything needed for a straightforward and hassle-free setup.
-
Wide Insert Compatibility: Compatible with MGMN250 inserts, this tool holder expands the versatility of your CNC lathe, allowing you to handle various materials and applications effectively.
-
Durable and Reliable Construction: Built from high-quality materials, the MGEVR2020-2.5T12 is designed to withstand the rigors of CNC machining, ensuring longevity and consistent performance in demanding environments.
-
Ideal for All Skill Levels: Whether you're a seasoned professional or a DIY enthusiast, this grooving tool holder provides the precision and reliability needed for superior machining results.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
