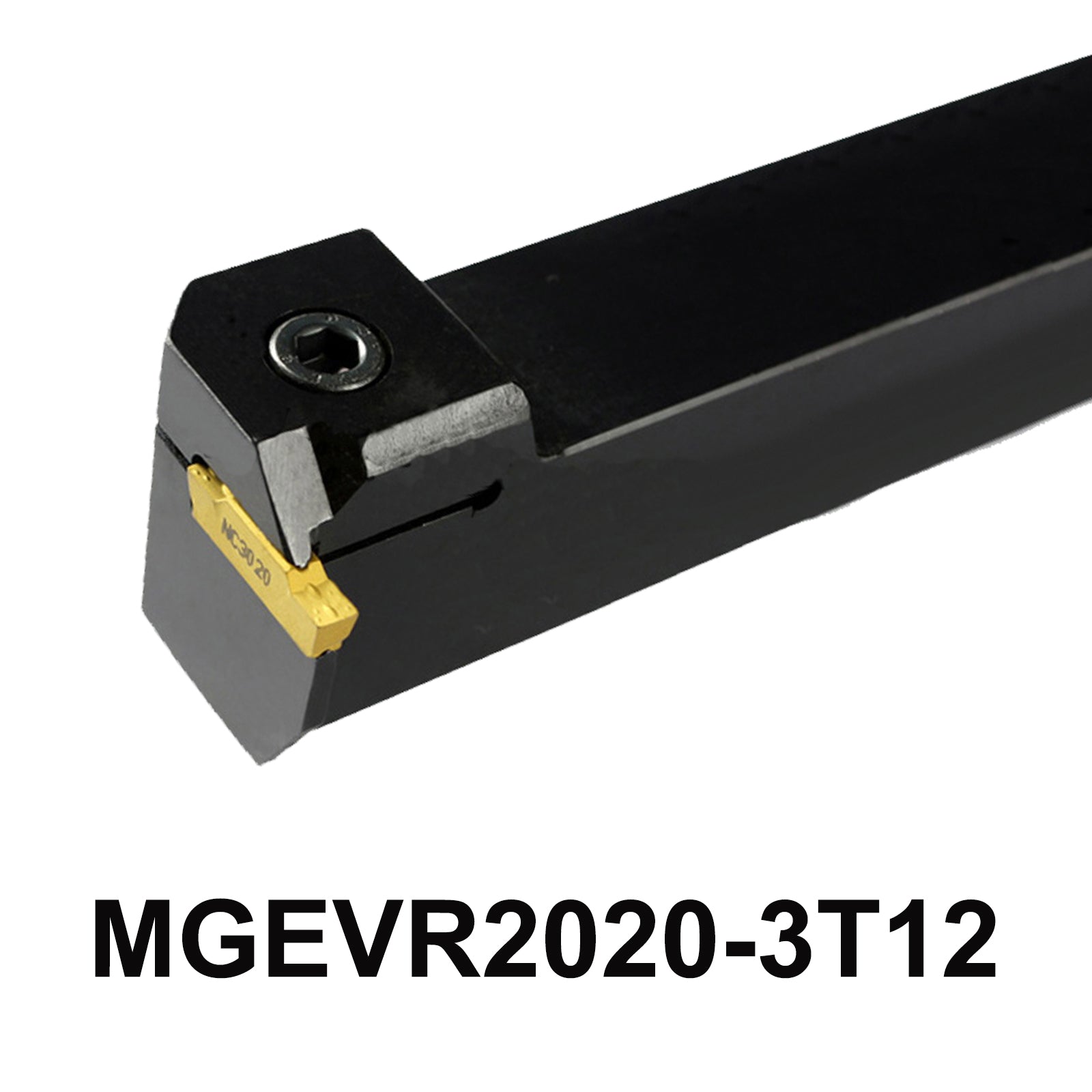

MGEVR2020-3T12 Slotting Machine Cutting Tool | 3mm Cutting Width, 6mm Depth
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the MGEVR2020-3T12 Slotting Machine Cutting Tools , your ideal solution for precise and efficient grooving in CNC lathe applications.
With dimensions of 20x20x125mm and a cutting width of 3mm. Compatible with MGMN300 inserts
Product parameters:
-
Tool Holder Model: MGEVR2020-3T12
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 20 * 20 * 125 mm
- Tmax : 6 mm
-
Cutting Width : About 3 mm
-
Applicable blade : MGMN300
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVR2020-3T12 Slotting Machine Cutting Tools
1 * "T" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVR2020-3T12 External Grooving Turning Tools MGEVR2020-3T12 MGEVR2020 MGEVR2020 3T12 CNC Lathe Cutter Holder Machine Metal Tool
-
Your Go-To Solution for Accurate Slotting
-
Compact Design for Optimal Performance
-
Tailored for Versatile Applications
-
Engineered for Durability and Reliability
5-Point Description
-
Compact and Effective Design: The MGEVR2020-3T12 Slotting Machine Cutting Tools features a size of 20mm x 20mm x 125mm and a cutting width of 3mm, perfect for precise slotting operations in tight spaces and detailed work.
-
Maximum Slotting Depth of 6mm: With a maximum depth of 6mm, this tool allows for effective and clean cuts, catering to a variety of machining tasks across different materials.
-
All-Inclusive Tool Kit: The package comes complete with the tool holder, M6*20 screws, and an L5 wrench, ensuring you have everything you need for quick and easy installation.
-
Versatile Insert Compatibility: Designed to work seamlessly with MGMN300 inserts, this tool holder offers flexibility for various slotting applications, making it suitable for a range of projects.
-
Built for Longevity: Crafted from high-quality materials, the MGEVR2020-3T12 Slotting Machine Cutting Tools is built to withstand demanding machining conditions, ensuring consistent performance and extended tool life.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
