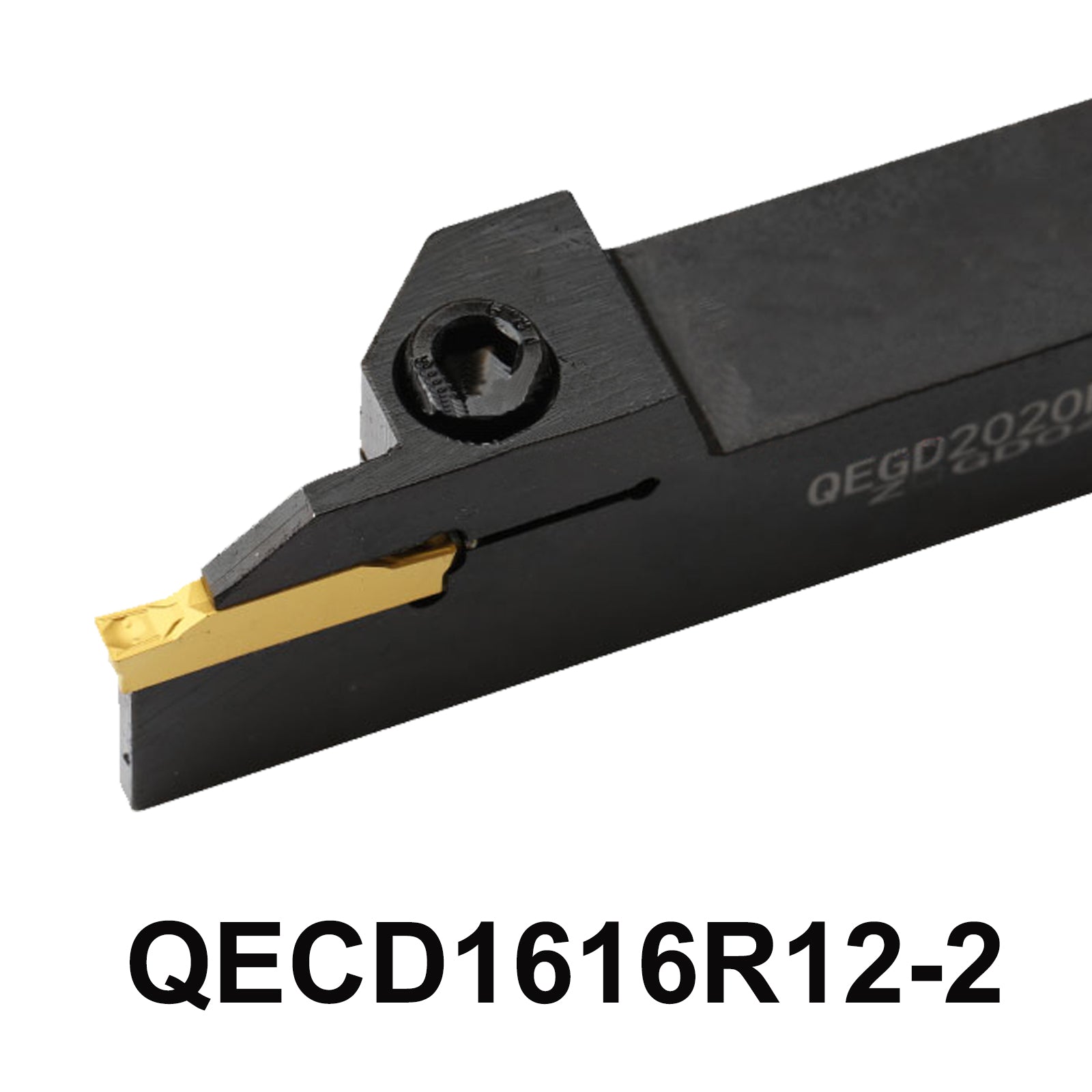

QECD1616R12-2 CNC Lathe Outer Grooving Tool Holder | 2mm Width, ZTBD0202 Inserts Compatible
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Elevate your CNC lathe machining with the QECD1616R12-2 Outer Grooving Tool Holder.
Built to fit lathe sizes of 16mm x 16mm x 100mm, this tool holder offers a cutting width of 2mm and can accommodate inserts with a maximum depth of cut (Tmax) up to 12mm. The holder is compatible with ZTBD0202 inserts, ensuring superior performance in a variety of machining applications.
Product parameters:
-
Tool Holder Model: QECD1616R12-2
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
- Tmax : 12mm
-
Cutting Width : About 2 mm
-
Applicable blade : ZTBD0202
- Screw : M5*20
- Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * QECD1616R12-2 External Grooving Holders
1 * "L" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND QECD1616R12-2 Outer Grooving Tool Holder QECD1616R12-2 QECD 1616 QECD1616R12 2 CNC Lathe Cutter Holder Machine Metal Tool
-
Maximize Efficiency and Precision with the QECD1616R12-2 Outer Grooving Tool Holder
-
Designed for Precision Grooving with 2mm Cutting Width
-
Built to Last: High-Quality Materials and Durable Construction
-
Full Package for Quick Setup and Immediate Use
-
Compatible with ZTBD0202 Inserts for Superior Performance
-
Compact Size and Versatile for Various CNC Lathe Applications
5-Point Description
-
Precision Grooving Performance: The QECD1616R12-2 outer grooving tool holder offers a cutting width of 2mm and a maximum cutting depth of 12mm (Tmax), ensuring precise, clean cuts for a wide range of grooving applications.
-
Robust Construction: Crafted from high-quality materials, this tool holder is built for strength and durability, ensuring a long lifespan even under demanding machining conditions.
-
Complete Setup Included: Each package includes the tool holder, M5*20 screws, and an L4 wrench, giving you all the essential components for quick installation and immediate use, reducing downtime.
-
Compatibility with ZTBD0202 Inserts: Designed to work seamlessly with ZTBD0202 inserts, this tool holder guarantees reliable performance and superior cutting efficiency, maximizing your machining productivity.
-
Compact and Versatile: With a lathe size of 1616100mm, the QECD1616R12-2 tool holder is compact yet highly effective, making it ideal for both large and small CNC lathe machines, expanding the range of tasks you can perform.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
