Buy QECD2020R15-2 Grooving Tool Holder for CNC Lathes | Precision Tooling for Grooving
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

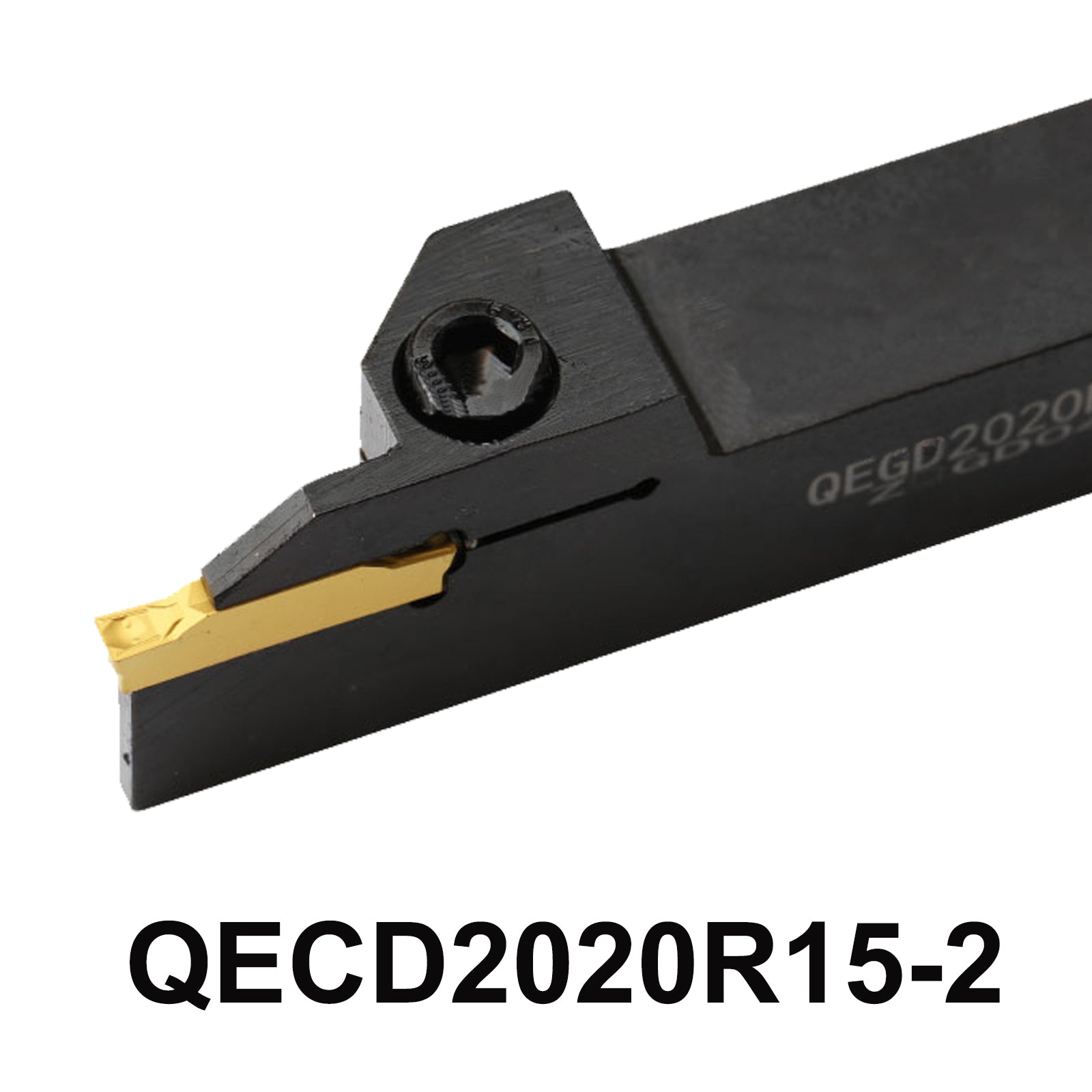

Elevate your CNC lathe machining with the QECD2020R15-2 Grooving Lathe Tool Holder
Built to fit lathe sizes of 20mm x 20mm x 125mm, this tool holder offers a cutting width of 2mm and can accommodate inserts with a maximum depth of cut (Tmax) up to 15mm. The holder is compatible with ZTBD0202 inserts, ensuring superior performance in a variety of machining applications.
Product parameters:
-
Tool Holder Model: QECD2020R15-2
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 20* 20 * 125 mm
- Tmax : 15mm
-
Cutting Width : About 2 mm
-
Applicable blade : ZTBD0202
- Screw : M6*20
- Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * QECD2020R15-2 Grooving Lathe Tool Holder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND QECD2020R15-2 Grooving Lathe Tool Holder QECD2020R15-2 QECD 2020 QECD2020R15 2 CNC Lathe Cutter Holder Machine Metal Tool
-
Maximize Efficiency and Precision with the QECD2020R15-2 CNC Grooving Tool Holder
- Key Features of the QECD2020R15-2 Grooving Lathe Tool Holder for Optimal Machining
5-Point Description
-
Precision Grooving Performance: With a cutting width of 2mm and a maximum cutting depth of 15mm, the QECD2020R15-2 is engineered to deliver precise and smooth grooving results, making it ideal for a wide range of CNC lathe applications.
-
Durable and Reliable Construction: Constructed from high-quality materials, this tool holder offers exceptional durability, ensuring that it can withstand the demands of both high-speed and heavy-duty machining processes.
-
Compatibility with ZTBD0202 Inserts: The QECD2020R15-2 is designed for use with ZTBD0202 inserts, providing flexibility and ease of use while ensuring consistent cutting performance and superior chip control during grooving operations.
-
Complete and Easy-to-Use Kit: The product comes with the tool holder, M6*20 screws, and a L5 wrench, so you can quickly install the tool holder without any hassle—reducing downtime and boosting overall productivity in your operations.
-
Compact and Space-Saving Design: Measuring 2020125mm, this tool holder is ideal for machines where space is limited, offering optimal performance without occupying excessive room on your CNC lathe.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
