Buy QEGD2525R22-4 Grooving Lathe Tool for CNC – High-Precision Cutter Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

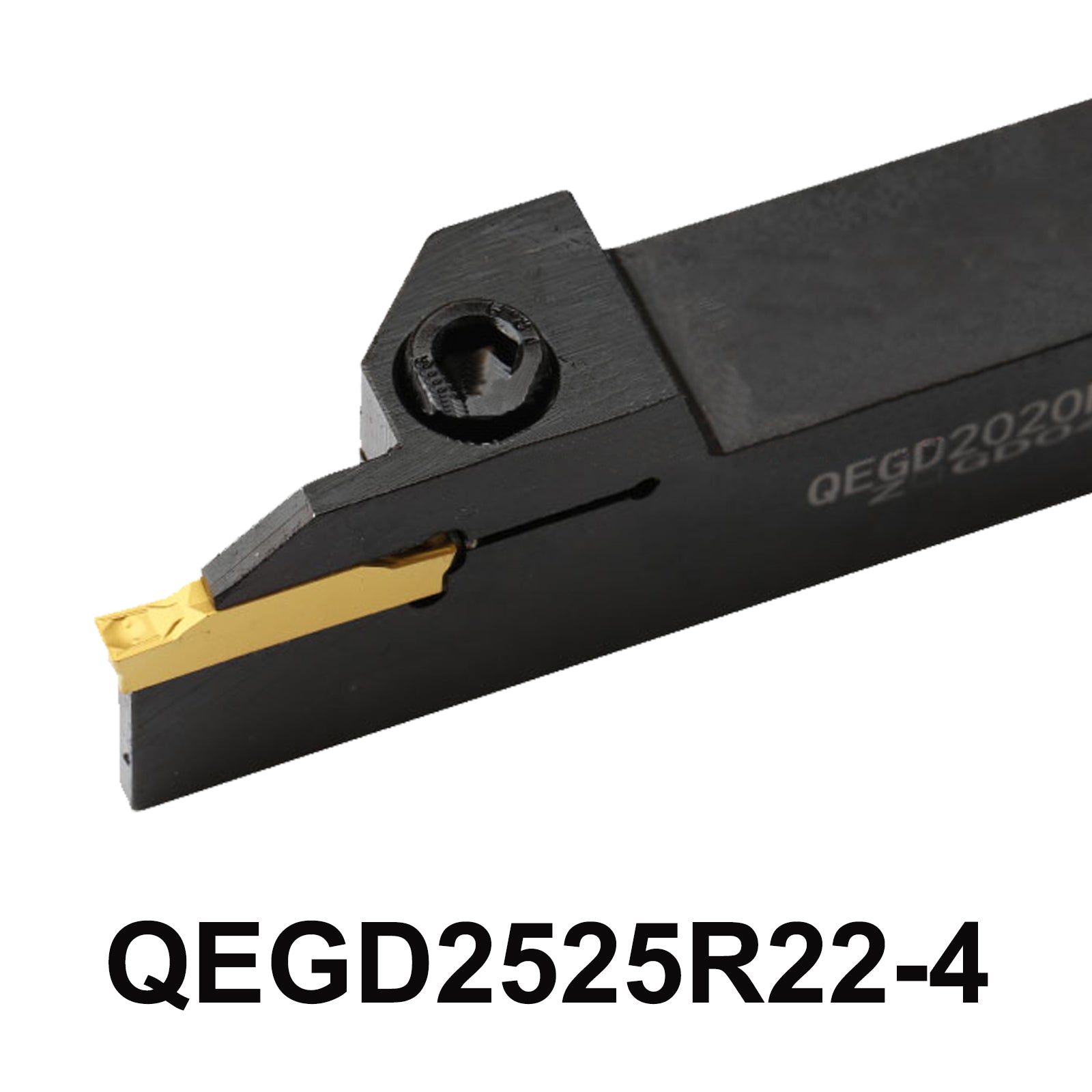

Elevate your CNC lathe machining with the QEGD2525R22-4 External Grooving Cutting Holder
Built to fit lathe sizes of 25mm x 25mm x 150mm, this tool holder offers a cutting width of 4mm and can accommodate inserts with a maximum depth of cut (Tmax) up to 22mm. The holder is compatible with ZTGD0404 inserts, ensuring superior performance in a variety of machining applications.
Product parameters:
-
Tool Holder Model: QEGD2525R22-4
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 150 mm
- Tmax : 22mm
-
Cutting Width : About 4 mm
-
Applicable blade : ZTGD00404
- Screw : M6*20
- Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * QEGD2525R22-4 External Grooving Cutting Holder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND QEGD2525R22-4 External Grooving Turning Tools QEGD2525R22-4 QEGD 2525 QEGD2525R22 4 CNC Lathe Cutter Holder Machine Metal Tool
-
High-Quality QEGD2525R22-4 Grooving Tool Holder for Professional CNC Applications
-
Key Features of the QEGD2525R22-4 Grooving Lathe Tool
5-Point Description
-
Sturdy and Precise Design: With a lathe size of 25mm x 25mm x 150mm, the QEGD2525R22-4 tool holder offers stability and excellent machining precision, making it ideal for tight tolerances and high-demand applications.
-
Versatile Cutting Width: The 4mm cutting width and a maximum depth of cut (Tmax) of 22mm allow you to achieve clean, precise grooves for a wide range of machining tasks, ensuring versatility across various materials.
-
Complete Setup Included: The package includes everything you need to get started—tool holder, M6*20 screws, and an L5 wrench, simplifying installation and ensuring you can hit the ground running.
-
Compatible with ZTGD0404 Inserts: The QEGD2525R22-4 is designed to work seamlessly with ZTGD0404 inserts, enhancing its performance and cutting efficiency, and allowing you to optimize your CNC machining workflow.
-
Durability and Reliability: Built to withstand the rigors of CNC machining, this tool holder is crafted from high-quality materials to ensure long-lasting performance, helping to reduce downtime and improve productivity.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
