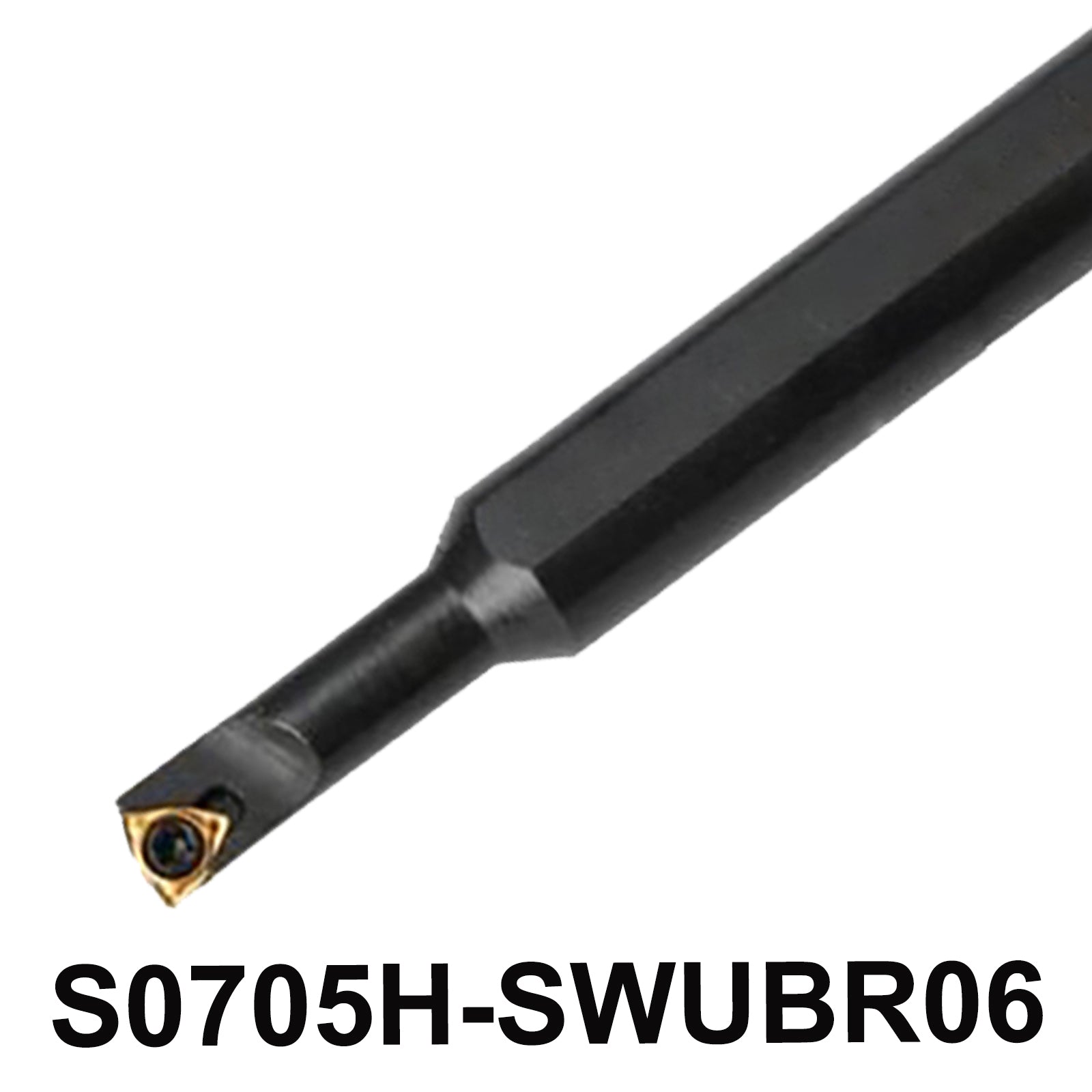

S0705H-SWUBR06 Information Overview
-
Overview
Elevate your CNC machining capabilities with the S0705H-SWUBR06 Internal Boring Bar Tool Holder. Designed for precision and durability, this tool holder ensures efficient internal turning operations, making it an essential addition to your machine shop.
-
Dimensions and Specifications of S0705H-SWUBR06 Carbide Boring Bars
-
Features and Specifications
- Model: S0705H-SWUBR06
- Package Includes: S0705H-SWUBR06 Tool Holder and compatible Screws, and Wrenches
- 95° cutting edge angle and 7° relief angle.
- Material: alloy steel
- Type: S-Type (Screw-type)
- Handle Diameter: 7mm
- Total Length: 100mm
- Cutting Blade Length: 6mm
- Screw Size: M2.2*5
- Wrench: T6
- Compatible Blades: WBGT060102
-
5-Point Description
- Accurate Cutting Angles: Features a 93° cutting edge angle for precise machining.
- Robust Design: Crafted from high-quality alloy steel for superior durability and longevity.
- Compact Size: 7mm handle diameter and 100mm total length for easy handling and control.
- Versatile Compatibility: Works seamlessly with WBGT060102 carbide inserts, suitable for various applications.
-
User-Friendly: S-type screw design with included T6 wrench allows for quick adjustments and maintenance.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
