Key Features:

• Cutting Edge Angle: 62.5°
• Relief Angle: 7°
• Material: High-grade alloy steel
• Diameter of Handle: 8mm
• Total Length: 125mm
• Length of Cutting Blade: 7mm
• Screw Type: M2.5*6
• Wrench Type: T8
• Compatible Blades: DCMT070202,DCMT070204,DCMT070208, DCMT2(1.5)0, DCMT2(1.5)1,DCMT2(1.5)2

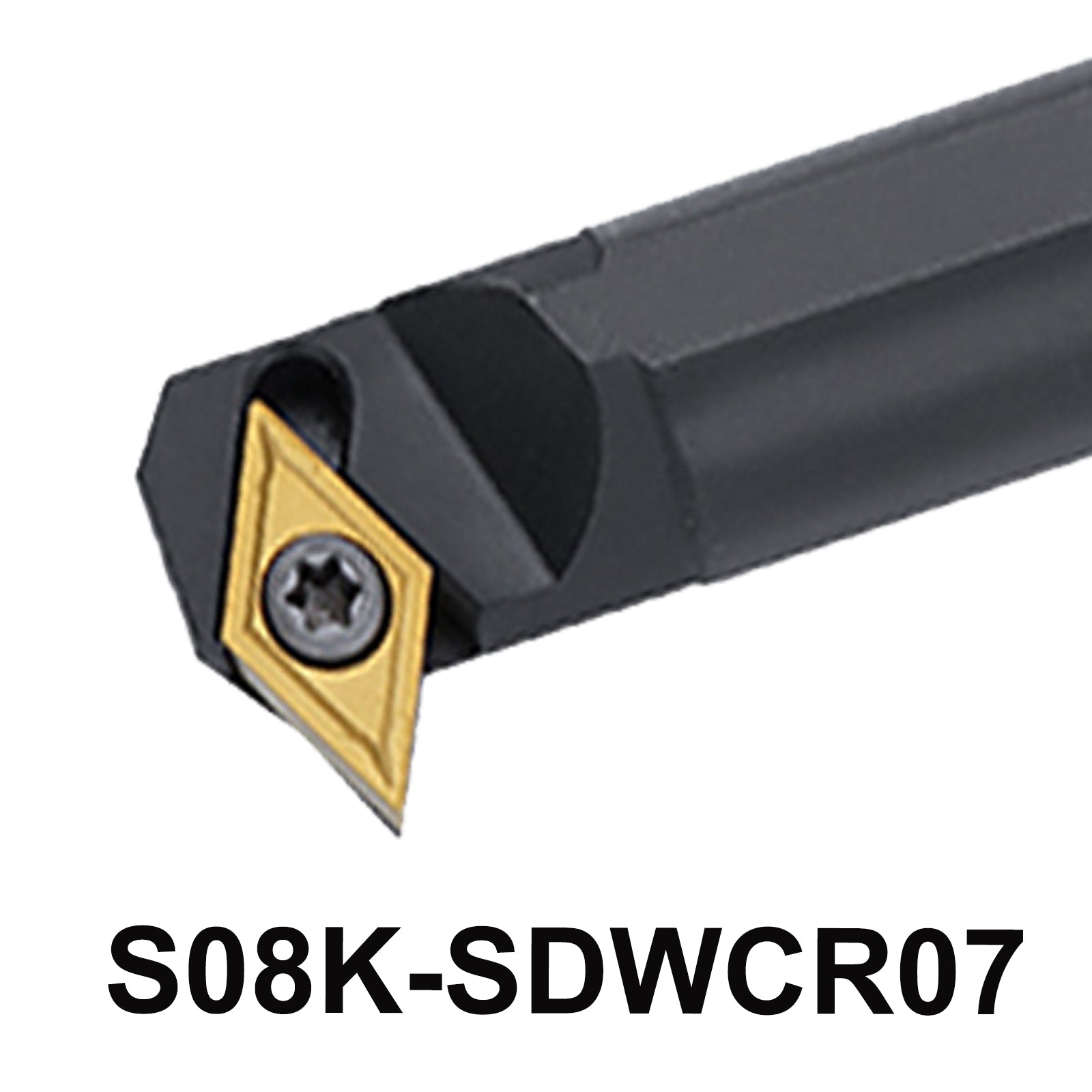

S08K-SDWCR07 CNC Internal Boring Bar Tool Holder – Precision Engineering in a Compact Design

• Efficient Internal Turning with 62.5° Cutting Edge Angle

• Durable Alloy Steel Construction for Reliable Performance

• Compact and Versatile Design for CNC Applications

• Enhanced Cutting Precision with 7° Blade Relief Angle

• Stable Operation with 8mm Diameter Handle

• Compatibility with Multiple DCMT Carbide Inserts

Application

The S08K-SDWCR07 is designed for internal turning operations in CNC machine tools and lathes. Its precision and durability make it suitable for a range of complex machining tasks requiring high accuracy.

5-Point Description

1. Precision Cutting: Equipped with a 62.5° cutting edge angle and 7° blade relief angle for high-accuracy internal turning.
2. Durable Construction: Made from alloy steel to ensure long-term performance and resistance to wear.
3. Compact Design: The 8mm handle diameter provides excellent stability and control in a compact form factor.
4. Versatile Compatibility: Supports various carbide inserts like DCMT070202, DCMT070204, DCMT070208, DCMT2(1.5)0, DCMT2(1.5)1, and DCMT2(1.5)2 for flexible machining options.
5. Secure Adjustment: Features an S-type (screw-type) mechanism for precise blade positioning.

Overview

The S08K-SDWCR07 CNC Internal Boring Bar Tool Holder offers a blend of precision and compact design, making it ideal for internal turning tasks. With a 62.5° cutting edge angle and a 7° blade relief angle, this tool holder ensures sharp, accurate cuts and a smooth surface finish. Constructed from durable alloy steel, it promises long-lasting performance. The 8mm handle diameter provides stability, while its compatibility with a range of carbide inserts—including DCMT070202, DCMT070204, and DCMT070208—makes it versatile for various CNC machine tools and lathes.

Advantages

High Precision: Ensures accurate internal turning with optimal cutting angles.
Robust Material: Alloy steel construction offers long-lasting performance.
Compact and Stable: The 8mm handle diameter provides stability in a compact tool holder.
