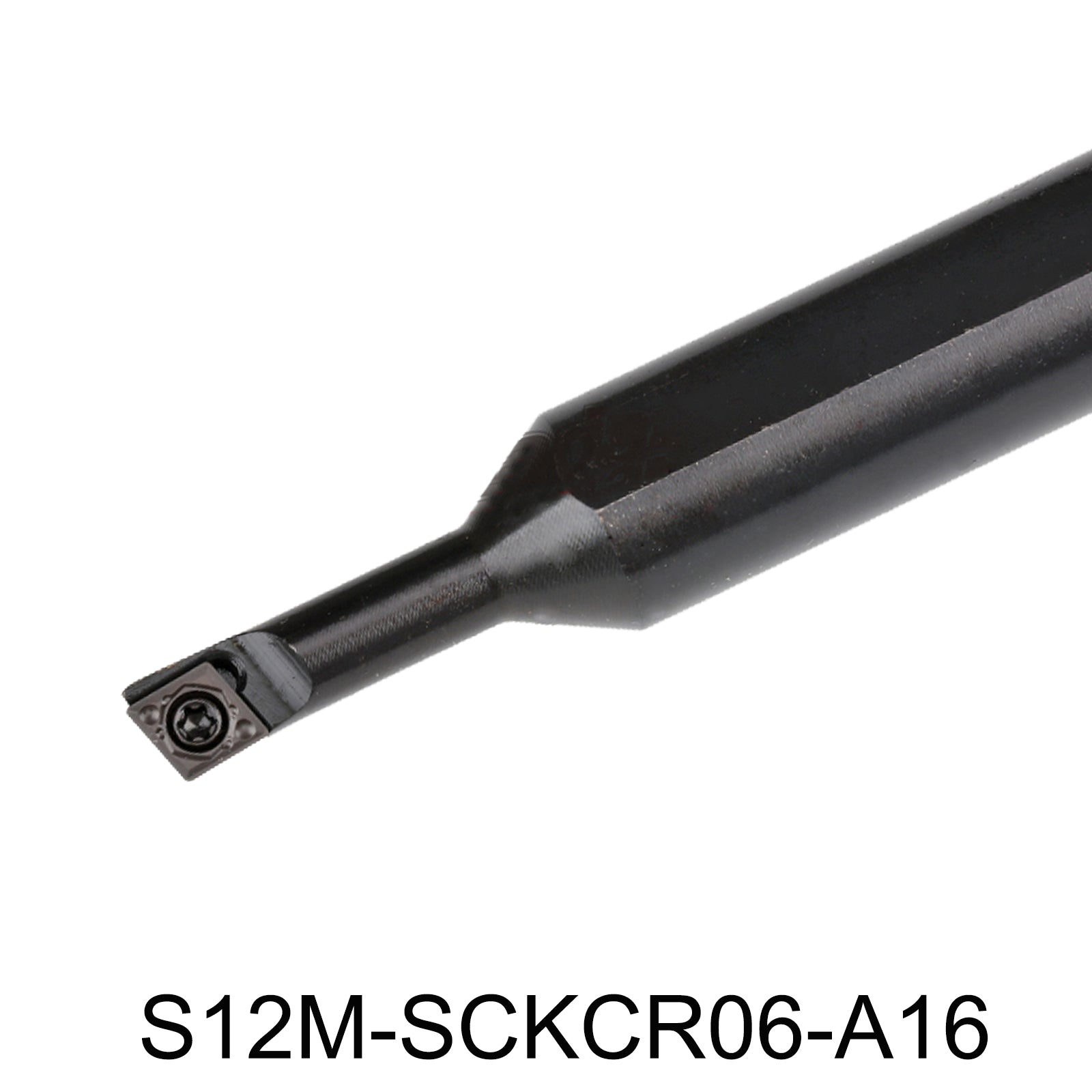

S12M-SCKCR06-A16 Alloy Steel, 16*150*6mm CNC Internal Boring Bar Tool Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S12M-SCKCR06-A16 CNC Internal Boring Bar Tool Holder | mill boring bar
Precision Internal Turning Tool Holder, Alloy Steel
12mm Diameter, CCMT Inserts
5-Point Description
-
Precision Machining: Engineered for CNC lathes and machine tools, featuring a 75° cutting edge angle and 7° relief angle for precise internal turning operations.
-
Durable Construction: Made from high-quality alloy steel, ensuring longevity and reliability in demanding machining environments.
-
Versatile Compatibility: Supports a range of CCMT carbide inserts (CCMT060202, CCMT060204, CCMT060208, CCMT210, CCMT211, CCMT212) for flexibility in various machining applications.
-
Efficient Chip Control: Optimized design for effective chip evacuation, enhancing machining efficiency and surface finish.
-
Easy Setup and Maintenance: Includes necessary screws (M2.5*5) and a T8 wrench for convenient installation and adjustments, making it user-friendly for operators.
Overview: The S12M-SCKCR06-A16 is a robust CNC internal boring bar tool holder designed for precise machining operations on CNC lathes and machine tools. Featuring a 75° cutting edge angle and a 7° relief angle, it ensures efficient chip control and superior surface finish. Constructed from high-quality alloy steel and designed in an S-type (Screw-type) model, this tool holder accommodates a variety of CCMT carbide inserts, making it versatile for a range of internal turning applications.

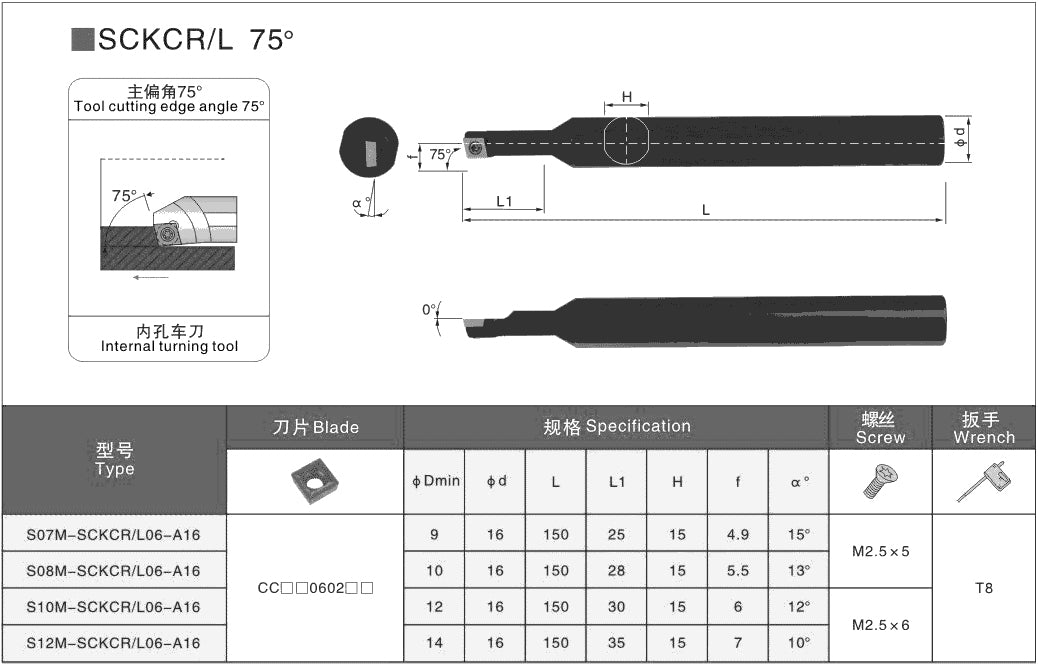

Detailed Specifications
- Material: Alloy steel
- Tool Cutting Edge Angle: 75°
- Relief Angle of Blade: 7°
- Model: S12M-SCKCR06-A16
- Dimensions: Diameter of handle 16mm, total length 150mm, cutting blade length 6mm
- Included Accessories: M2.5*5 screw, T8 wrench
- Blade Compatibility: CCMT060202, CCMT060204, CCMT060208, CCMT2(1.5)0, CCMT(1.5)1, CCMT(1.5)2
Applications:
Ideal for precision machining tasks on CNC machine tools and lathes
Advantages:
- Durable alloy steel construction ensures extended tool life.
- Optimized cutting edge and relief angles for superior cutting performance.
- Compatibility with a variety of inserts enhances versatility.
Choose Reason:
Choose the S12M-SCKCR06-A16 CNC internal boring bar tool holder for its robust construction, optimized design, and compatibility with a wide range of inserts, ensuring reliable and efficient machining operations.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
