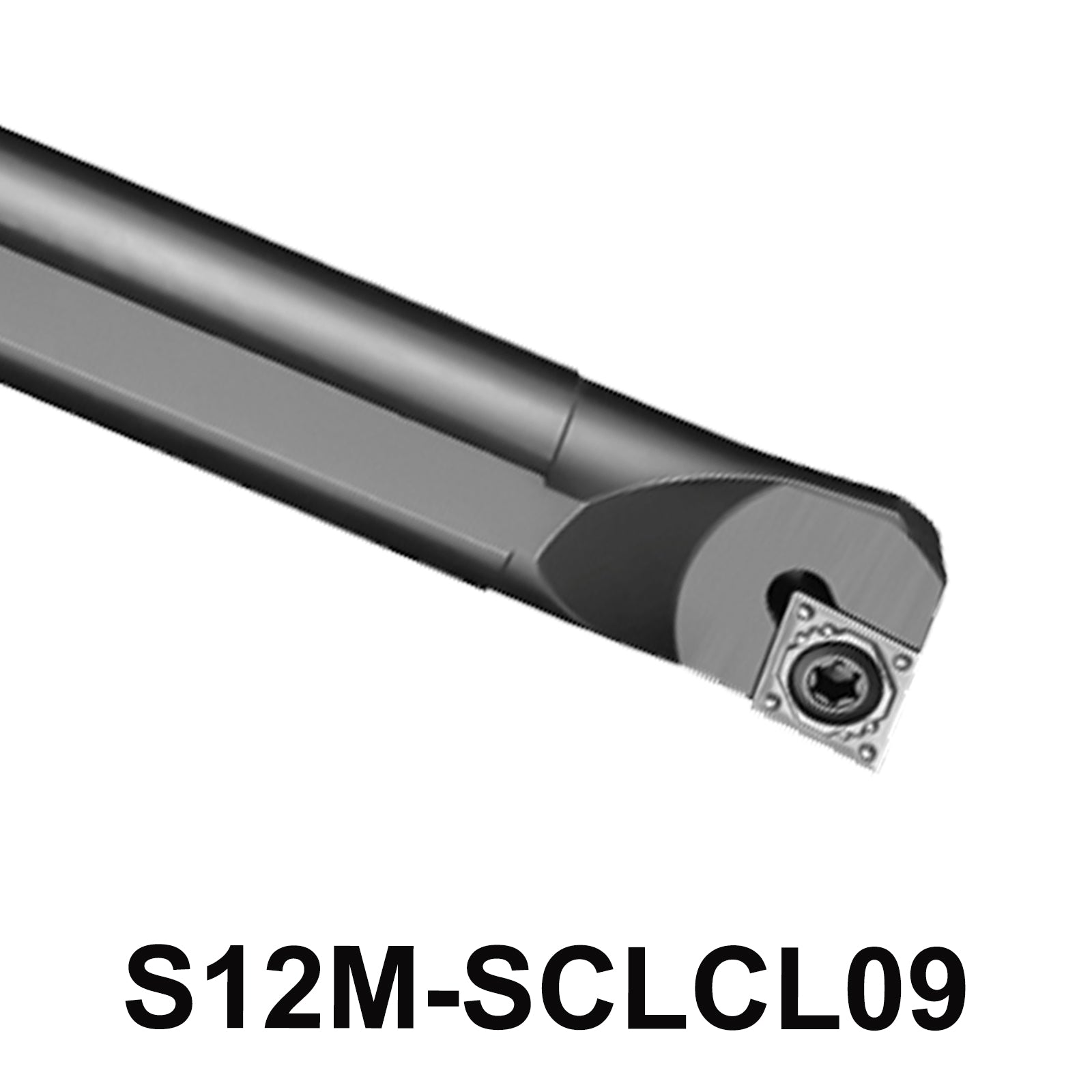

Overview: The S12M-SCLCL09 is a robust CNC internal boring bar tool holder designed for precision machining operations on CNC lathes and machine tools. Made from durable alloy steel, it features a 95° cutting edge angle and a 7° relief angle on the blade, ensuring efficient chip control and reduced vibration during machining. Compatible with a range of carbide inserts, it offers versatility and reliability for various machining applications.

Key Features:

• Material: Alloy Steel
• Cutting Edge Angle: 95°
• Relief Angle of Blade: 7°
• Diameter of Handle: 12mm
• Total Length: 150mm
• Length of Cutting Blade: 9mm
• Screw: M4*8
• Wrench: T15
• Blade Compatibility: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2

Applications:

• Ideal for CNC machine tools and lathes
• Suitable for boring bar setups
• Precision internal turning operations

Advantages:

• Durable alloy steel construction for longevity
• Optimized cutting edge and relief angles for efficient machining
• Versatile compatibility with multiple carbide insert types
• Easy handling and setup with included screw and wrench
• Enhanced chip control and reduced vibration during operation

Reasons to Choose:

• Ensures precise and efficient internal turning operations
• Provides durability and reliability in machining applications
• Versatile compatibility with various carbide inserts for flexibility
• Designed for ease of use and minimal setup time
• Suitable for both professionals and hobbyists in CNC machining

S12M-SCLCL09 CNC Internal Boring Bar Tool Holder S12M SCLCL09 boring bar stand

• Applications of S12M-SCLCL09 Tool Holder

• Advantages of S12M-SCLCL09 in CNC Machining

• Specifications and Features of S12M-SCLCL09

• Compatible with CCMT Inserts

• 95° Cutting Edge Angle for CNC Machining

• Durable Screw-type Construction

5-Point Description:

1. Precision Machining: Designed for CNC lathes and machine tools, this tool holder ensures precise internal turning operations, making it ideal for high-accuracy machining tasks.

2. Durable Construction: Crafted from robust alloy steel, the S12M-SCLCL09 offers durability and longevity, capable of withstanding demanding machining environments.

3. Optimized Cutting Edge: Featuring a 95° cutting edge angle and a 7° relief angle on the blade, it provides efficient chip control and reduced vibration during cutting, enhancing overall machining performance.

4. Versatile Compatibility: Compatible with a variety of carbide inserts including CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, and CCMT3(2.5)2, offering versatility for different machining needs.

5. Easy Setup and Use: Includes M4*8 screw and T15 wrench for convenient setup and adjustment, ensuring ease of use and minimal downtime during tool changes.
