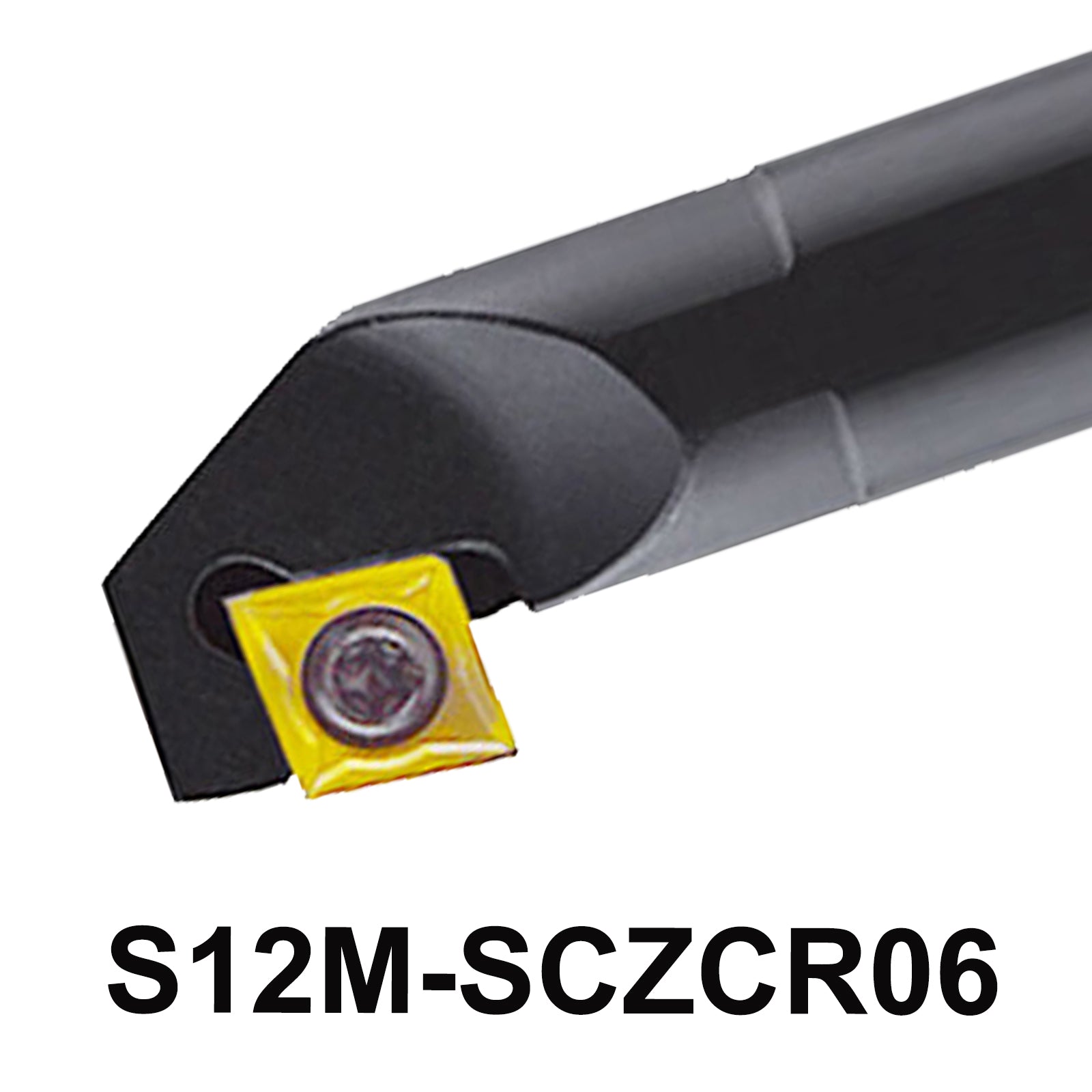

S12M-SCZCR06 CNC Internal Boring Bar Tool Holder – 93° Cutting Edge, Alloy Steel, 12mm Handle
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Application
Perfect for CNC machine tools and lathes, the S12M-SCZCR06 is designed for internal boring tasks, delivering precision and reliability for various machining needs.
S12M-SCZCR06 CNC Internal Boring Bar Tool Holder S12M SCZCR06 lathe boring bar
-
Superior Design for Precise Internal Boring
-
Robust and Versatile Tool Holder
-
Optimal Performance for CNC Machining
-
Detailed Specifications and Dimensions
-
High-Quality Material and Construction
-
Compatibility with CCMT Inserts
Overview
The S12M-SCZCR06 CNC internal boring bar tool holder is engineered for high-precision internal turning with its 93° cutting edge angle and 7° relief angle. Constructed from durable alloy steel, this tool features a 12mm handle diameter and a 150mm total length, supporting a variety of CCMT carbide inserts. Ideal for CNC machine tools and lathes, it ensures accurate and efficient boring operations.
Detail Page
- Material: Alloy Steel
- Type: S-Type (Screw-type)
- Model: S12M-SCZCR06
- Handle Diameter: 12mm
- Total Length: 150mm
- Cutting Blade Length: 6mm
- Included Accessories: M2.5*6 Screw, T8 Wrench
- Compatible Inserts: CCMT060202, CCMT060204, CCMT060208, CCMT2(1.5)0, CCMT(1.5)1, CCMT(1.5)2
5-Point Description
- Precision Boring: Designed with a 93° cutting edge angle and 7° relief angle for accurate internal machining.
- Durable Alloy Steel: Constructed from robust alloy steel for long-lasting performance.
- Versatile Compatibility: Accommodates multiple CCMT carbide inserts, offering flexibility in applications.
- Easy Installation: Comes with M2.5*6 screw and T8 wrench for straightforward setup.
- Enhanced Efficiency: Optimized for use with CNC lathes, providing reliable and efficient boring operations.
Advantages
- Precision Engineering: Ensures exact cuts with its detailed cutting edge design.
- High Durability: Alloy steel construction withstands rigorous machining conditions.
- Flexible Usage: Supports a wide range of CCMT inserts for different tasks.
- Convenient Setup: Includes all necessary components for quick and easy installation.
- Effective Performance: Tailored for CNC lathes, enhancing productivity and machining quality.
Choosing Reasons
-
High Precision: Provides accurate and consistent results for internal boring.
-
Durable Material: Alloy steel ensures longevity and resilience under tough conditions.
-
Versatile Compatibility: Suitable for a variety of CCMT inserts, accommodating diverse machining needs.
- Performance Optimization: Ideal for CNC lathes, boosting efficiency and machining effectiveness.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
