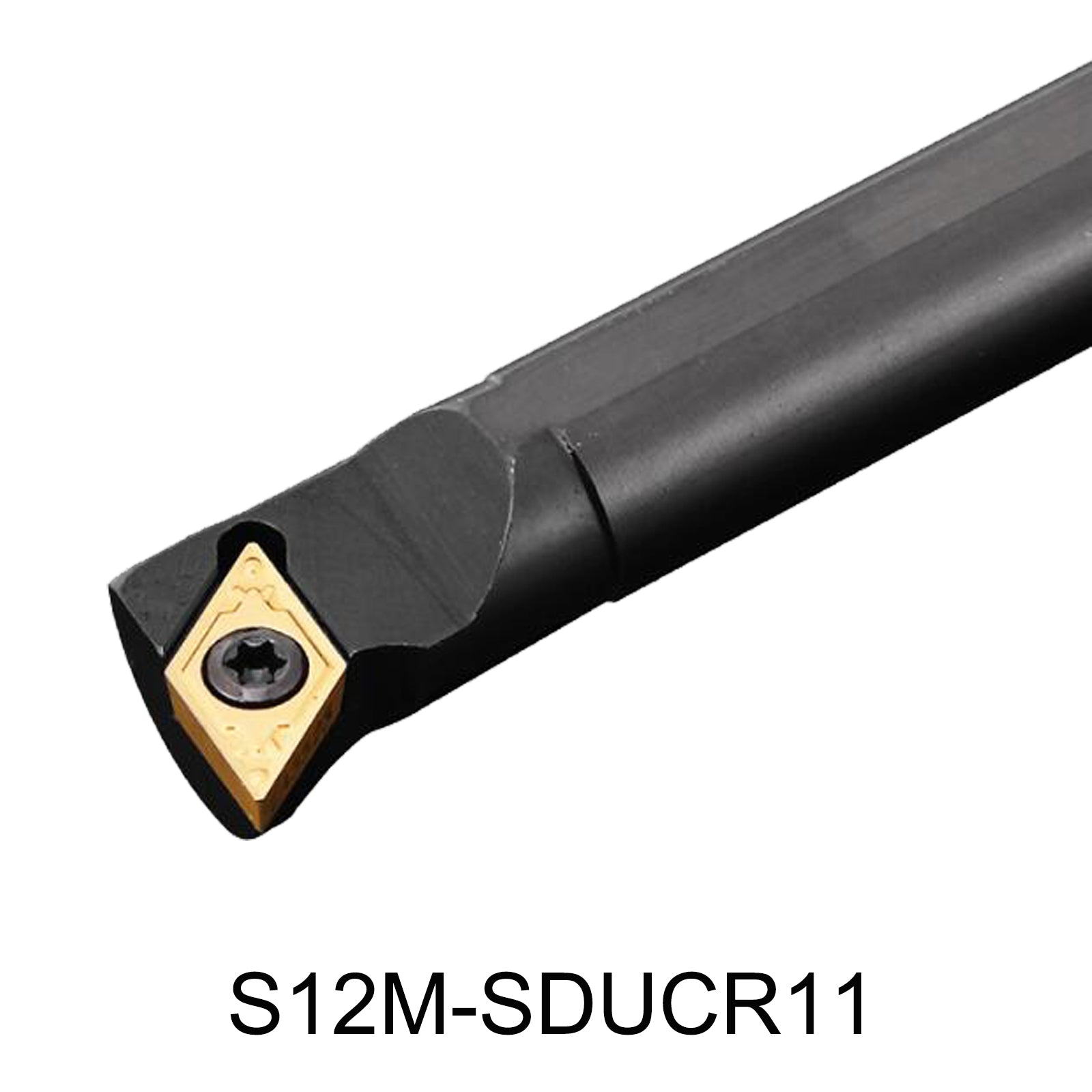

S12M-SDUCR11 CNC Internal boring bar holders – 95° Cutting Angle | Durable Alloy Steel | 12mm Handle Diameter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Elevate Precision with the S12M-SDUCR11 CNC Internal Boring Bar Tool Holder
-
Precision Engineering for Superior Internal Boring
-
12mm Handle Diameter for Enhanced Control
-
Built to Last with High-Quality Alloy Steel
-
Ideal for CNC Machines and Lathes
-
Compatible with Various DCMT Inserts
-
Includes M4*8 Screws and T15 Wrench
Overview
The S12M-SDUCR11 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered for precision and durability, making it an essential tool for CNC machining. Featuring a 95° cutting edge angle and a 7° relief angle, this tool holder provides exceptional accuracy for internal boring tasks. Constructed from high-quality alloy steel, it ensures long-term reliability and robustness. With a 12mm handle diameter and 150mm total length, it offers excellent control and reach. The S-type screw mechanism ensures a secure fit, and it is compatible with a range of DCMT inserts, including DCMT11T302 and DCMT3(2.5)1. Included are M4*8 screws and a T15 wrench for straightforward installation.
Key Features
- Cutting Edge Angle: 95°
- Relief Angle: 7°
- Material: Alloy Steel
- Handle Diameter: 12mm
- Total Length: 150mm
- Blade Length: 11mm
- Compatible Inserts: DCMT11T302, DCMT11T304, DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1, DCMT3(2.5)2
- Includes: M4*8 Screws, T15 Wrench
5-Point Description
- Precision Cutting: Features a 95° cutting edge angle for accurate internal boring.
- Durable Construction: Made from high-quality alloy steel for long-lasting use.
- Versatile Compatibility: Works with a variety of DCMT inserts, enhancing its application range.
- Enhanced Control: 12mm handle diameter and 150mm total length provide superior handling and reach.
- Convenient Setup: Comes with M4*8 screws and a T15 wrench for easy assembly and adjustment.
Applications
- CNC Machine Tools: Perfect for precision boring and turning tasks in CNC lathes.
- Internal Boring: Ideal for detailed internal cutting tasks across various materials.
- Versatile Machining: Supports a range of carbide inserts for different machining needs.
Advantages
- High Precision: Ensures accurate and reliable internal boring with a 95° cutting edge.
- Robust Build: Alloy steel construction provides durability and long-term performance.
- Versatile Use: Compatible with multiple DCMT inserts, allowing for flexibility in applications.
- User-Friendly: Includes screws and wrench for straightforward installation and operation.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
