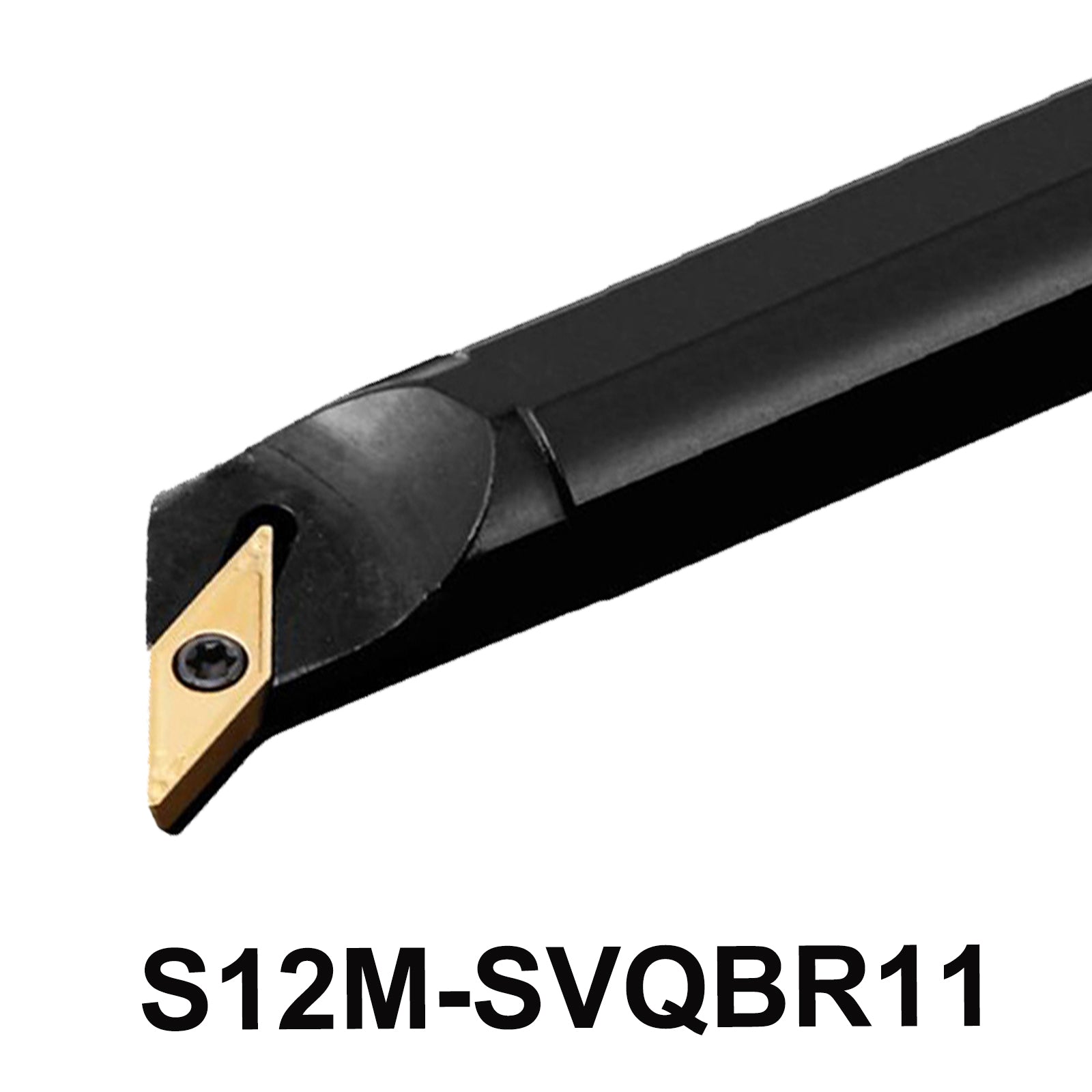

S12M-SVQBR11 Solid Carbide Boring Bars Holder – 117.5° Cutting Edge, 5° Blade Relief, Compatible with VBMT Blades
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND S12M-SVQBR11 Solid Carbide Boring Bar Holder S12M SVQBR11 SVQBR 11 Boring Bar CNC Lathe Cutter Machine SVQBR Carbide Inserts VBMT1103
-
S12M-SVQBR11 Information Overview
-
Overview
Introducing the S12M-SVQBR11 lathe boring bars, engineered to deliver exceptional precision in internal turning operations. Featuring a cutting edge angle of 117.5° and a 5° blade relief angle, this tool holder ensures optimal cutting performance and efficiency. Constructed from high-strength alloy steel, it includes a 12mm handle diameter and 150mm total length for enhanced control and stability. Designed to work with VBMT110304 and VBMT110308 blades, it’s an ideal choice for CNC machine tools and lathes. Elevate your machining capabilities with the S12M-SVQBR11.
-
Dimensions and Specifications of S12M-SVQBR11 Boring Bar
-
Features and Specifications
- Model: S12M-SVQBR11
- Package Includes:S12M-SVQBR11 Tool Holder and compatible Screws, and Wrenches
- 117.5° cutting edge angle and 5° relief angle.
- Material: alloy steel
- Type: S-Type (Screw-type)
- Handle Diameter: 12mm
- Total Length: 150mm
- Cutting Blade Length: 11mm
- Screw Size: M2.5*7
- Wrench: T8
- Compatible Blades: VBMT110302 VBMT110304 VBMT110308
-
5-Point Description
-
117.5° Cutting Edge Angle: Delivers exceptional precision for internal machining.
-
5° Blade Relief Angle: Enhances cutting efficiency and prolongs tool life.
-
Robust Alloy Steel Construction: Provides durability and long-lasting performance.
-
Optimal Dimensions: 12mm handle diameter and 150mm length for improved control.
-
Versatile Blade Compatibility: Works with VBMT110302 VBMT110304 and VBMT110308 blades for various applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
