Application

• CNC Machine Tools: Ideal for precision machining and internal turning tasks in CNC machines.
• CNC Lathes: Suitable for use with CNC lathes, enhancing machining accuracy and efficiency.
• Boring Bars: Perfect for applications involving internal boring and complex cutting operations.

Advantages

• Enhanced Precision: The 62.5° edge angle and 7° blade relief ensure high accuracy and smooth cutting performance.

• Robust Durability: Alloy steel construction provides superior strength and longevity.

• Stable Operation: The 14mm handle diameter offers a stable grip and precise control.

Overview

The S14N-SDWCR07 Precision CNC Internal Boring Bar Tool Holder combines innovative design with high-quality materials to deliver exceptional performance in internal turning applications. Featuring a 62.5° cutting edge angle and a 7° blade relief, this tool holder ensures precise and efficient machining. Constructed from durable alloy steel, it is built to withstand rigorous use and deliver consistent results. The tool holder is compatible with various carbide inserts, such as DCMT070202 and DCMT070204, making it versatile for different machining needs.

Key Features

• Cutting Edge Angle: 62.5°
• Relief Angle: 7°
• Material: Alloy Steel
• Handle Diameter: 14mm
• Total Length: 160mm
• Blade Length: 7mm
• Compatible Inserts: DCMT070202, DCMT070204, DCMT070208, DCMT2(1.5)0, DCMT2(1.5)1, DCMT2(1.5)2
• Includes: M2.5*6 Screws, T8 Wrench

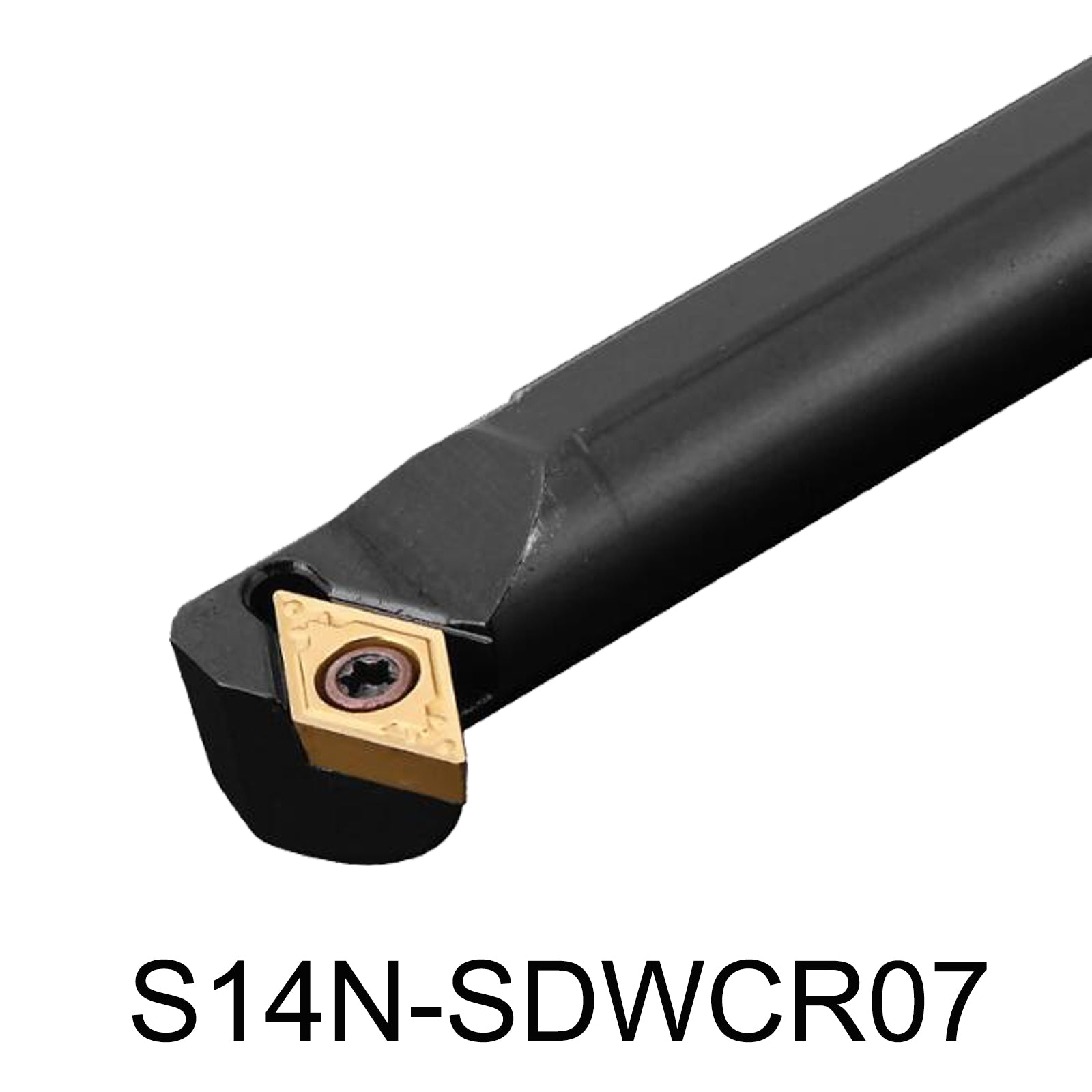

S14N-SDWCR07 Precision CNC Internal Boring Bar Tool Holder

• Optimized Cutting with 62.5° Edge Angle

• High-Durability Alloy Steel Construction

• Adaptable to Various  DCMT Carbide Inserts

• Effective 7° Blade Relief for Improved Performance

• Compact and Robust with 14mm Handle Diameter

5-Point Description

1. Precision Cutting: Features a 62.5° cutting edge angle and 7° blade relief for accurate and efficient internal turning.
2. Durable Construction: Made from high-quality alloy steel for enhanced durability and long-term use.
3. Versatile Compatibility: Compatible with various carbide inserts including DCMT070202, DCMT070204, and others, allowing for flexibility in machining tasks.
4. Stability and Ease of Use: Equipped with a 14mm handle diameter and 160mm total length for improved stability and control.
5. Efficient Adjustments: The S-type screw mechanism enables quick and secure adjustments, streamlining the setup process.
