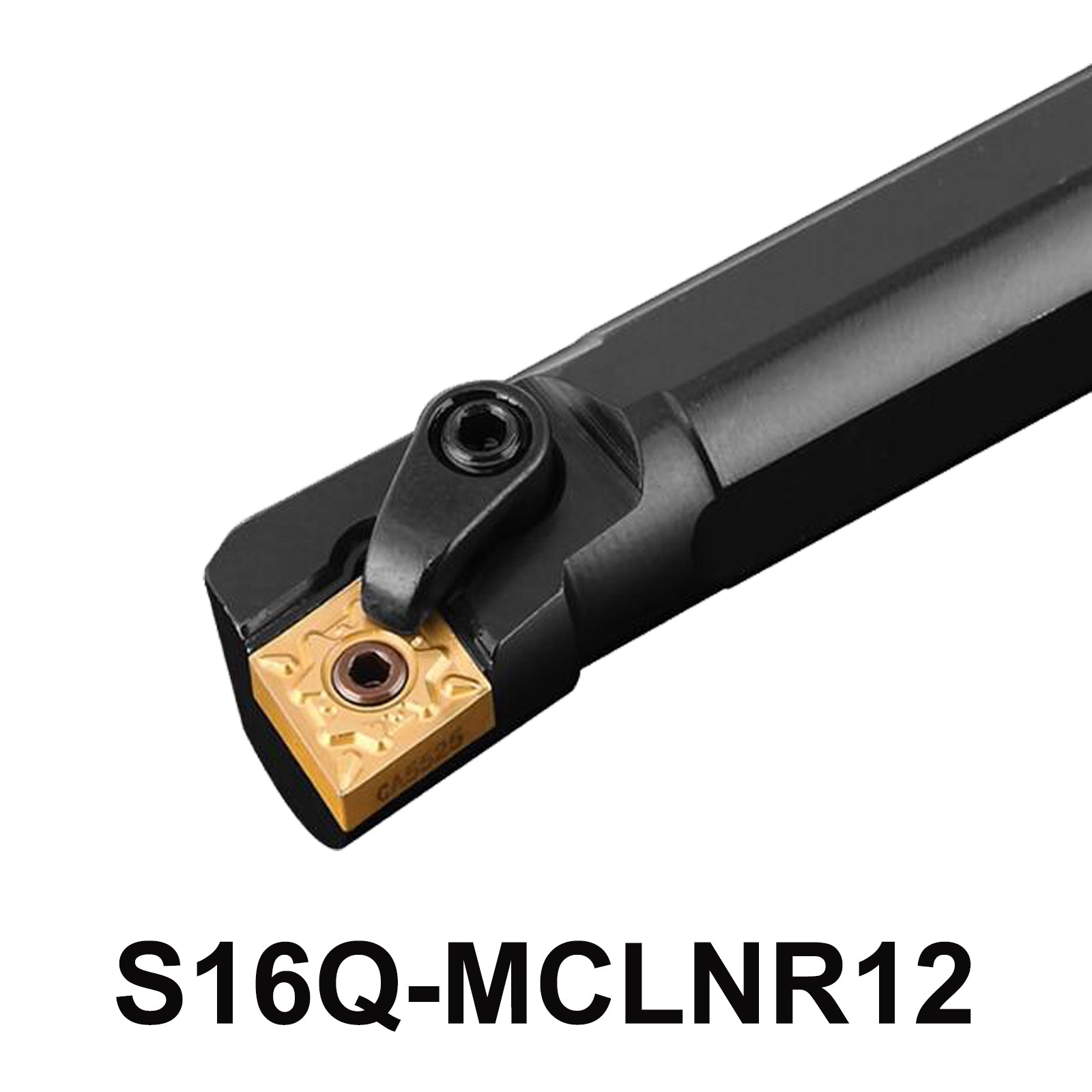

S16Q-MCLNR12 Internal Turning Tool Holder for CNC Lathes Compatible with CNMG Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Product Name:S16Q-MCLNR12 Right Tool Holder
Overview:The S16Q-MCLNR12 Internal Turning Tool Holder is crafted from high-quality alloy steel, designed for precise machining operations on CNC machine tools and CNC lathes. It features a 95° cutting edge angle with a relief angle of 0°, offering optimal performance and durability. The tool holder includes essential components such as a clamp (HL1810), screw (ML0620), and wrench (L3.0), along with a cutting blade length of 12mm.
Features:
- Tool Cutting Edge Angle: 95°
- Rellef of angle of blade:0°
- Material: Alloy Steel
- Diameter of Handle: 16mm
- Length of cutting blade:12mm
- Total Length: 180mm
- Shim:MC1204
- Pin: CTM613
- Clamp: HL1810
- Screw: ML0620
- Wrench: L3.0
- Insert Compatibility: CNMG120404 CNMG120408 CNMG120412, CNMG120416 CNMG431 CNMG432 CNMG433 CNMG434
Applications: Ideal for CNC machine tools, CNC lathes, and machining centers, the S16Q-MCLNR12 tool holder excels in internal turning operations, providing consistent performance and longevity.
S16Q-MCLNR12 Right Tool Holder for CNC Machines S16Q MCLNR12
-
Superior Material: Made from high-quality alloy steel for durability and strength.
-
Optimized Design: 95° cutting edge angle ensures efficient cutting and reduced wear.
-
Versatile Compatibility: Supports various CNMG series blades for flexibility in machining tasks.
-
95° Cutting Edge Angle for Precision Machining
-
Robust Construction with 16mm Shank
-
Ideal for Various Machining Operations
5-Point Description:
-
Premium Alloy Steel Construction: Ensures durability and reliability for long-term use in industrial machining environments.
-
Optimal Cutting Edge Angle: Features a 95° cutting edge angle with a relief angle of 0°, suitable for efficient internal turning operations.
-
Versatile Blade Compatibility: Supports CNMG120404, CNMG120408, CNMG120412, CNMG120416, CNMG431, CNMG432, CNMG433, and CNMG434 blades, offering flexibility in machining tasks.
-
Dimensions and Accessories: Diameter of handle: 16mm, Total length: 180mm, Length of cutting blade: 12mm. Includes clamp (HL1810), screw (ML0620), and wrench (L3.0) for convenient setup and operation.
-
Application: Ideal for CNC machine tools and CNC lathes, suitable for a variety of internal turning and machining applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
