S16Q-MTFNL16 CNC Internal lathe CNC tool holder Boring Bar Tool Holder for CNC Lathes - 16mm Diameter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S16Q-MTFNL16 CNC Boring Bar Tool Holder S16Q MTFNL16 boring bar carbide
-
Specifications and Features
-
Application of S16Q-MTFNL16
-
Advantages of S16Q-MTFNL16
-
Overview of S16Q-MTFNL16
-
Detail Page Description for S16Q-MTFNL16
-
Compatible with Standard TNMG Inserts
Product Name: S16Q-MTFNL16 Left Tool Holder

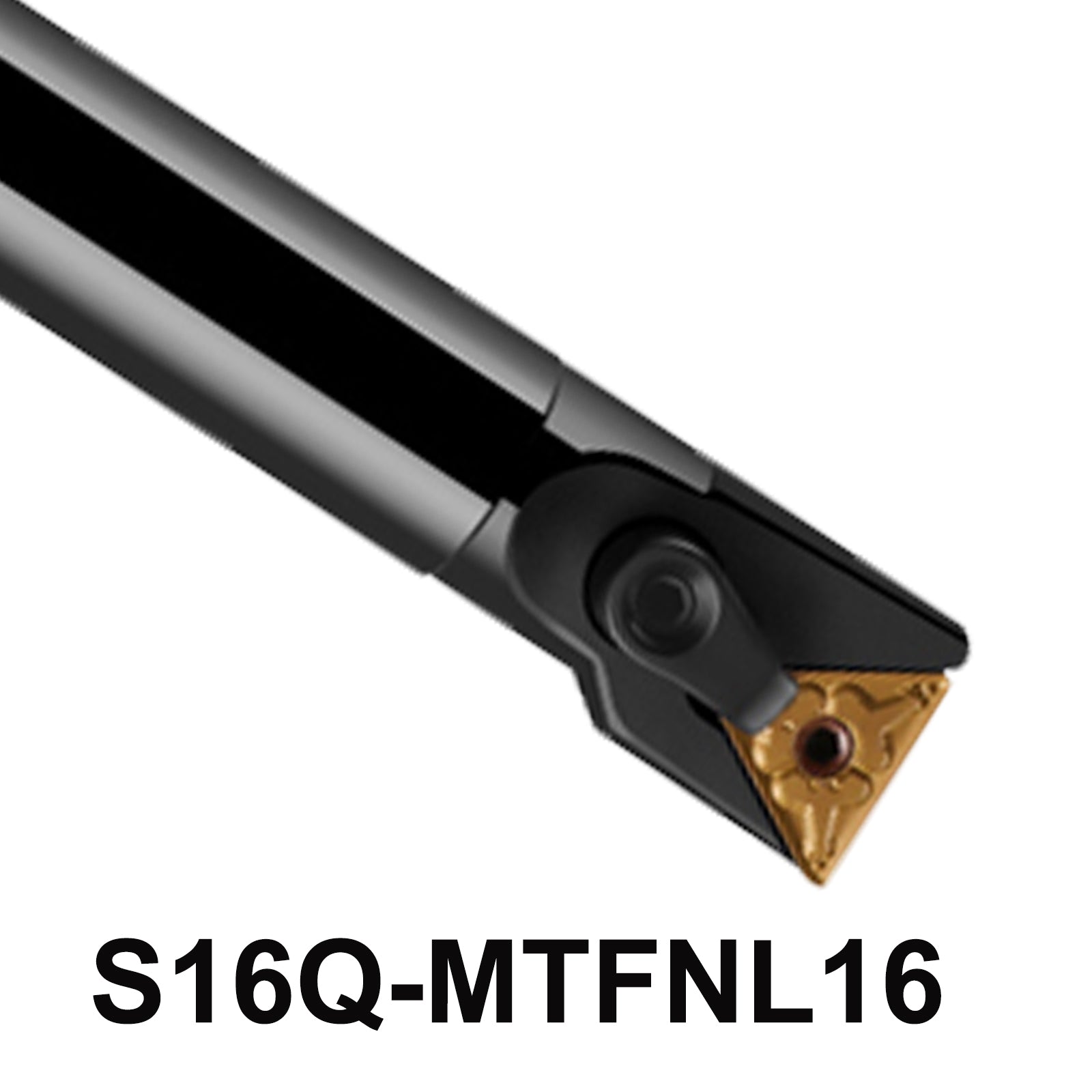

Overview:The S16Q-MTFNL16 is a precision CNC boring bar tool holder designed for internal turning operations. Made from durable alloy steel with a multi-lock system (M-type), it ensures stability and precise cutting. Featuring a 91° tool cutting edge angle and a 0° relief angle, it supports various TNMG carbide inserts for versatility.
Application:Mainly used in CNC machine tools and lathes for boring bar setups. Suitable for internal turning operations with various carbide inserts.
Advantages:
- Sturdy alloy steel construction ensures durability.
- Multi-lock system (M-type) enhances stability during machining.
- Supports a range of TNMG carbide inserts for versatility.
- Designed for precise internal turning operations.
- Easy installation and maintenance with included accessories.
Detail Page:
- Material: Alloy Steel
- Type: Internal Boring Bar, Right Tool Holder
- Model: S16Q-MTFNR16
- Handle Diameter: 16mm
- Total Length: 180mm
- Cutting Blade Length: 16mm
- Cutting Edge Angle: 91°
- Relief Angle: 0°
- Insert Compatibility: TNMG160404 TNMG160408 TNMG160412 TNMG160416 TNMG331 TNMG332 TNMG333
- Accessories: CTM511 pin, HL1810 clamp, ML0620 screw, L2.0 L3.0 wrenches
5-Point Product Description for S16Q-MTFNL16:
-
Precision Machining Tool:
The S16Q-MTFNL16 CNC boring bar tool holder is crafted from high-quality alloy steel, ensuring durability and precision in machining operations. It features a 91° tool cutting edge angle and a 0° relief angle, optimizing performance for internal turning tasks. -
Versatile Compatibility:
Designed for CNC machine tools and lathes, this tool holder supports a variety of TNMG carbide inserts including TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, and TNMG333. -
Stable and Secure:
Equipped with an M-type multi-lock system, the S16Q-MTFNL16 ensures a secure grip and stable operation during high-speed cutting and turning processes. It includes a CTM511 pin, HL1810 clamp, ML0620 screw, and L2.0/L3.0 wrenches for convenient assembly and maintenance. -
Optimal Design for Efficiency:
With a 16mm diameter handle and 180mm total length, this tool holder is engineered for efficiency and ease of use in CNC environments. The 16mm cutting blade length provides ample reach and cutting stability, enhancing machining precision. -
Application Excellence:
Ideal for boring bar setups in CNC lathe applications, the S16Q-MTFNL16 excels in internal turning operations.
