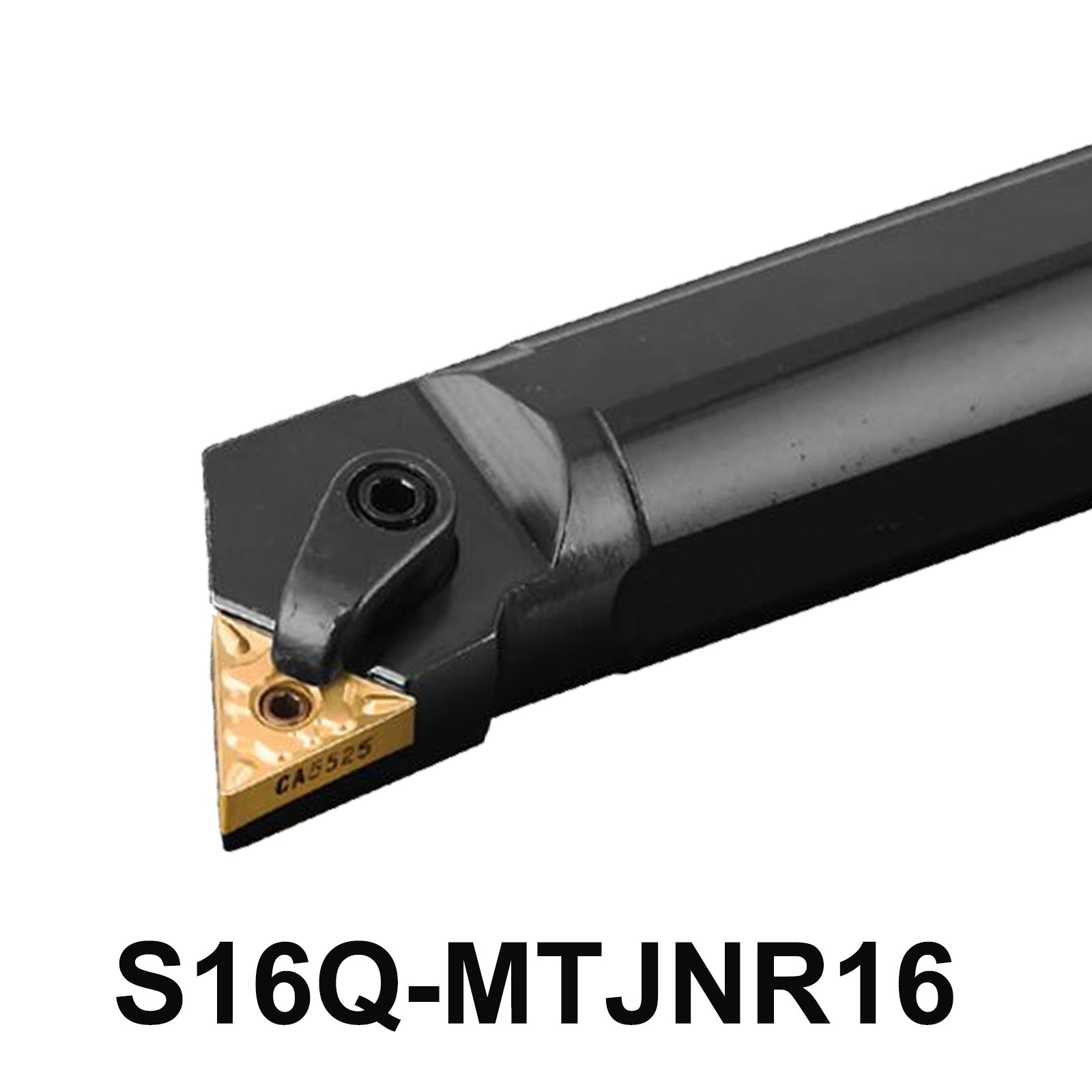

Product Name:S16Q-MTJNR16 CNC Boring Bar Tool Holder

Overview:Enhance your CNC machining capabilities with the S16Q-MTJNR16 CNC Boring Bar Tool Holder. Crafted from high-quality alloy steel, this tool holder is designed for precision internal turning operations on CNC lathes. With a 93° cutting edge angle and 0° relief angle, it ensures optimal performance and durability. Compatible with a range of TNMG inserts, it offers versatility for various cutting applications.

Specifications:

• Tool Holder Type: S16Q-MTJNR16
• Material: Alloy Steel
• Handle Diameter: 16mm
• Total Length: 180mm
• Length of Cutting Blade: 16mm
• Pin: CTM511
• Clamp: HL1810
• Screw: ML0620
• Wrench: L2.0, L3.0
• Compatible Inserts: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

5-Point Product Description:

1. Material and Construction: The S16Q-MTJNR16 CNC Boring Bar Tool Holder is constructed from robust alloy steel, ensuring durability and reliability for demanding CNC machining environments.

2. Design Features: Featuring a 93° cutting edge angle and 0° relief angle, it is optimized for precise internal turning operations, delivering consistent performance and extended tool life.

3. Dimensions: With a 16mm handle diameter and a total length of 180mm, including a cutting blade length of 16mm, it provides stability and flexibility for various machining tasks.

4. Clamping System: Equipped with HL1810 clamps and ML0620 screws, along with CTM511 pins and L2.0, L3.0 wrenches, it ensures secure and efficient tool setup and changes, minimizing downtime.

5. Versatility: Compatible with a range of TNMG inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), the S16Q-MTJNR16 supports a wide array of cutting applications, from roughing to finishing, on CNC lathes and similar machines.

Why choose the  S16Q-MTJNR16？

• Enhanced Stability: The 16mm diameter handle provides a stable base for the tool, reducing vibration and enhancing machining accuracy.
• Tool Compatibility: Alongside its compatibility with TNMG inserts, the S16Q-MTJNR16 supports a range of insert sizes (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), accommodating various cutting needs.

• User-Friendly Setup: The tool holder includes HL1810 clamps, ML0620 screws, CTM511 pins, and L2.0, L3.0 wrenches, facilitating quick and efficient tool changes and adjustments.
• Application Versatility: Ideal for CNC lathes and similar machines, it excels in turning applications across different materials, from steels to alloys, ensuring consistent performance in diverse manufacturing environments.

• Longevity and Performance: Designed for longevity, the S16Q-MTJNR16 resists wear and maintains cutting precision over prolonged use, reducing maintenance downtime and enhancing productivity.
