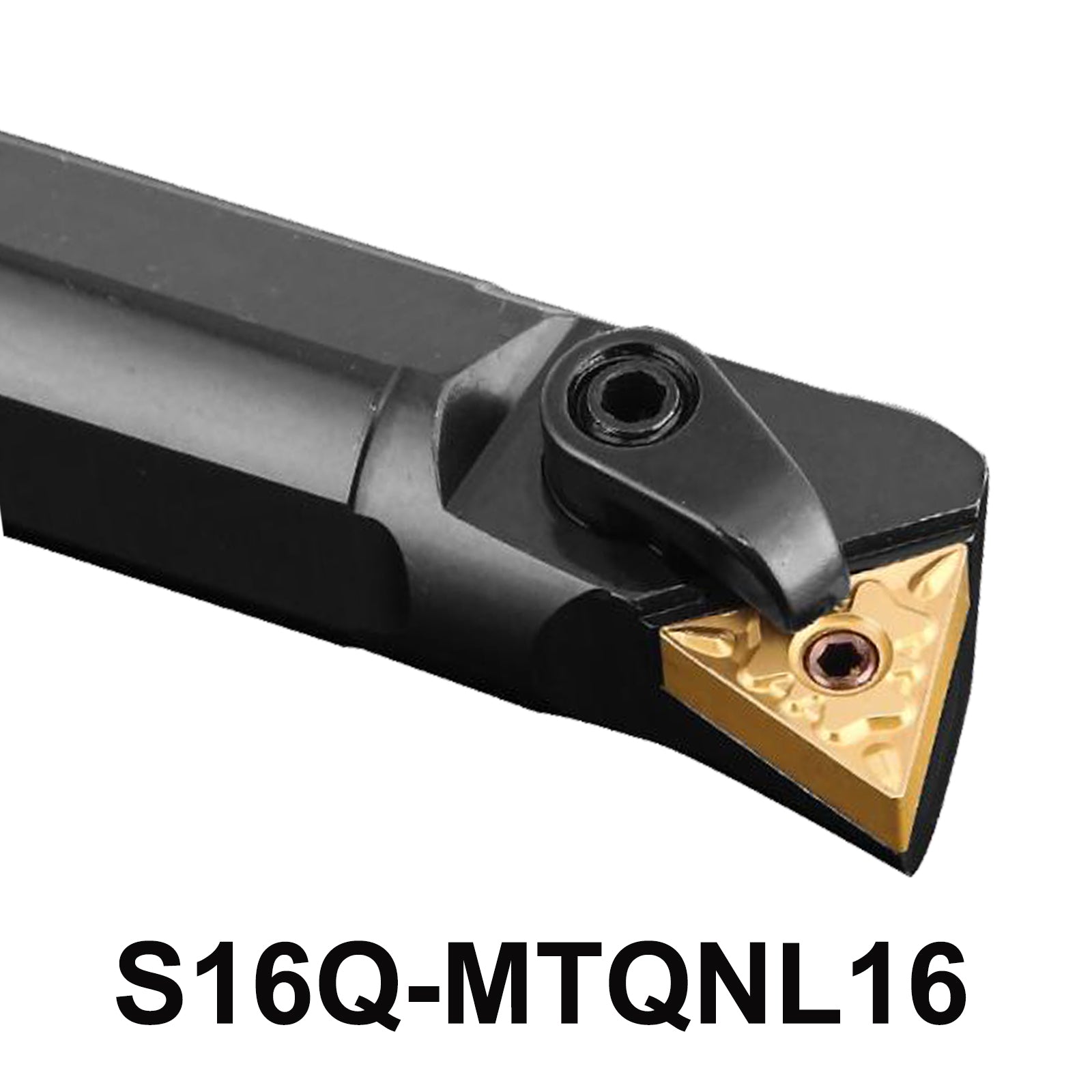

S16Q-MTQNL16 CNC Internal Boring Bar Tool Holder

Overview:

The S16Q-MTQNL16 is an advanced CNC internal boring bar designed for precision machining operations. Crafted from high-grade alloy steel and featuring a multi-lock system, this tool holder ensures exceptional performance and durability in CNC lathes and machine tools.

Application:

Ideal for CNC machine tools and CNC lathes, suitable for internal turning operations.

Specifications:

• Tool Holder Type: Left-hand tool holder
• Tool Cutting Edge Angle: 105°
• Relief Angle of Blade: 0°
• Internal Turning Tools Holder Material: Alloy steel, M-type (multi-lock system)
• Model: S16Q-MTQNL16
• Diameter of Handle: 16mm
• Total Length: 180mm
• Length of Cutting Blade: 16mm
• Pin: CTM511
• Clamp: HL1810
• Screw: ML0620
• Wrenches Included: L2.0, L3.0
• Compatible Blade Inserts (Blade Types): TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

5-Point Product Description:

1. Precision Engineering: Designed for internal boring operations with a 105° cutting edge angle for efficient material removal.
2. Multi-Lock System: Enhanced stability and rigidity due to the M-type multi-lock system, ensuring precise machining.
3. High-Quality Materials: Made from alloy steel for strength and durability, suitable for continuous use in demanding CNC environments.
4. Versatile Application: Ideal for CNC lathes and machine tools, offering versatility in internal turning tasks.
5. Comprehensive Set: Includes necessary accessories like pins, clamps, screws, and wrenches for immediate setup and use.

Choosing the S16Q-MTQNL16 means investing in a high-performance CNC internal boring bar that combines precision engineering, durability, and versatility to meet the requirements of modern machining environments.
