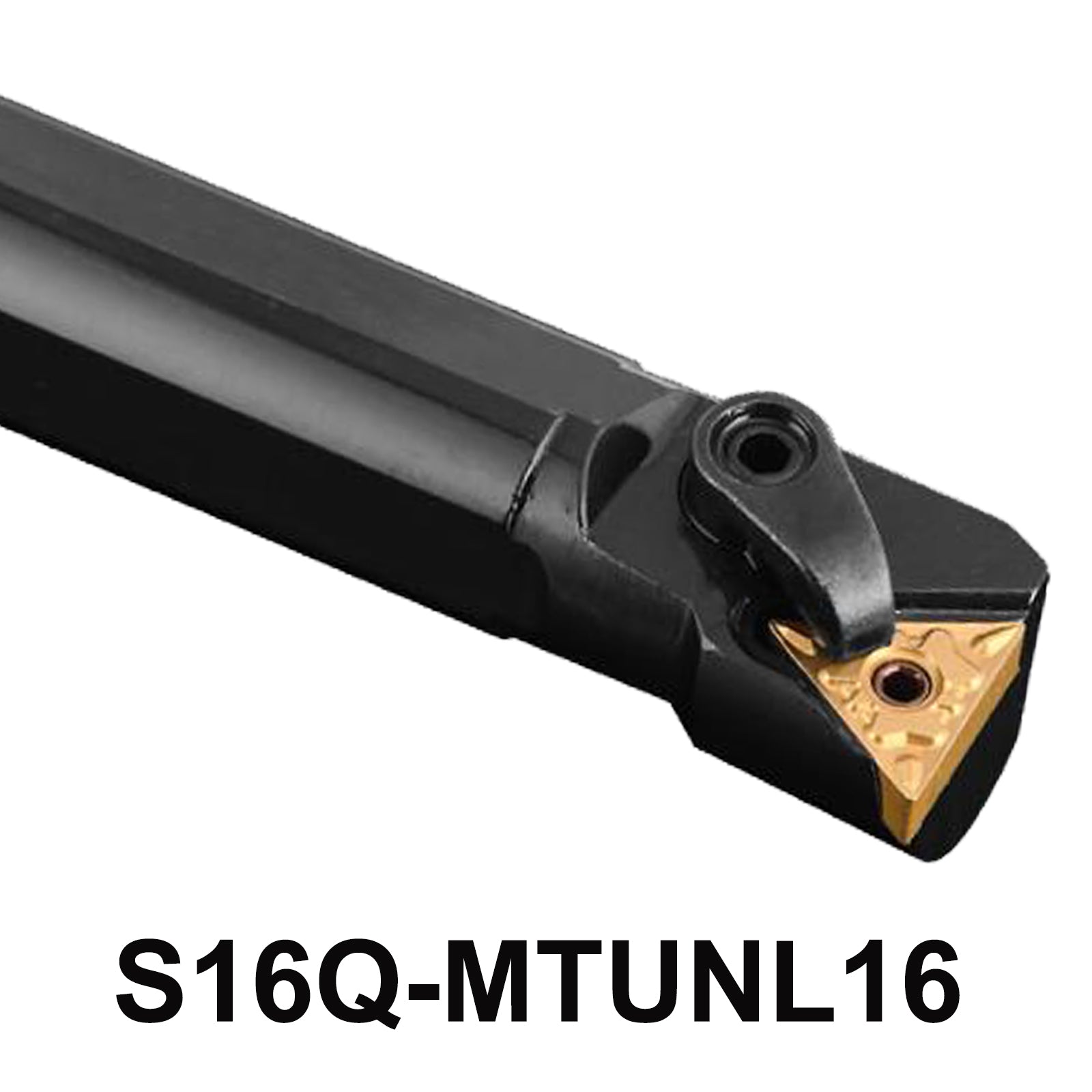

S16Q-MTUNL16 Internal Boring Bar Tool Holder | Alloy Steel CNC Lathe Cutter

• High Precision Tool Holder for CNC Lathes

• Durable and Reliable Multi-Lock System

• Compatible with Standard TNMG Inserts

• 95° Cutting Edge Angle for Precision Machining

• High-quality materials and precision construction

• Ideal for Various Machining Operations

Overview:

The S16Q-MTUNL16 is a precision CNC internal boring bar designed for efficient machining operations. With a 95° cutting edge angle and made from robust alloy steel featuring an M-type multi-lock system, this tool holder ensures stability, durability, and optimal performance in CNC machine tools and lathes.

Specifications and Dimensions:

• Tool Holder Type: Left-hand tool holder
• Tool Cutting Edge Angle: 95°
• Relief Angle of Blade: 0°
• Internal Turning Tools Holder Material: Alloy steel
• Model: S16Q-MTUNL16
• Diameter of Handle: 16mm
• Total Length: 180mm
• Length of Cutting Blade: 16mm
• Included Accessories: Pin CTM511, Clamp HL1810, Screw ML0620, Wrenches L2.0, L3.0
• Compatible Blade Inserts (Blade Types): TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

5-Point Description:

1. Precision Machining: Designed for precise internal turning operations with a 95° cutting edge angle for effective chip control and surface finish.
2. Durability: Made from high-quality alloy steel, ensuring longevity and resistance to wear in demanding CNC machining environments.
3. Stability: Features an M-type multi-lock system that enhances stability and minimizes vibration during machining processes.
4. Versatility: Suitable for a wide range of applications including facing, profiling, and chamfering in CNC lathes and machine tools.
5. Complete Set: Comes complete with essential accessories such as pins, clamps, screws, and wrenches, facilitating quick setup and operational efficiency.

Applications:

1. CNC Machining: Ideal for CNC machine tools and lathes, specifically designed for internal turning operations.
2. Precision Engineering: Used for accurate machining of internal features such as bores, recesses, and contours.
3. Metalworking: Suitable for various metals and alloys, providing efficient chip control and surface finish in machining processes.
4. Tooling Operations: Used in tool rooms and manufacturing environments for consistent and reliable performance.

Advantages:

1. High Precision: Features a 95° cutting edge angle for precise cutting and shaping of internal surfaces.
2. Durability: Made from robust alloy steel, ensuring longevity and resistance to wear and tear.
3. Stability: Equipped with an M-type multi-lock system that enhances stability and reduces vibrations during machining.
4. Versatility: Compatible with a range of TNMG series blade inserts, allowing flexibility in machining various materials and profiles.
5. Ease of Use: Includes essential accessories like pins, clamps, screws, and wrenches, facilitating easy setup and operation.

Package Includes:

• S16Q-MTUNL16 Tool Holder
• Compatible Clamps, Pins, Screws, and Wrenches
