Overview:The S16Q-MWLNL08 CNC boring bar tool holder is engineered for precision machining in CNC environments. It features a robust alloy steel construction with an M-type multi-lock system, ensuring stability and durability during operation. This tool holder is designed for internal turning applications with a 95° cutting edge angle and zero relief angle of the blade.

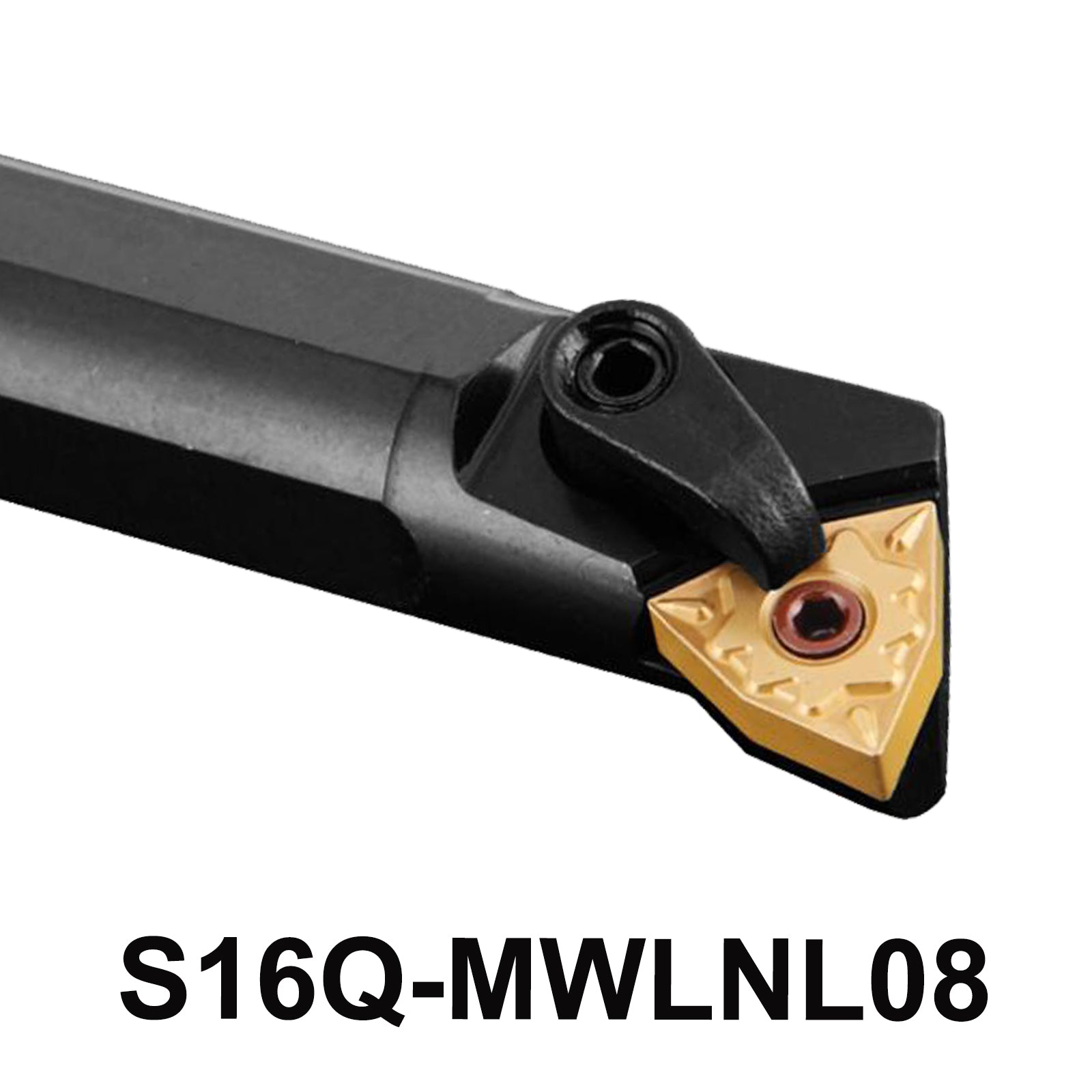

CNC Boring Bar Tool Holder S16Q-MWLNL08 - Internal Turning Tools Holder

High-Quality Alloy Steel CNC Boring Bar Tool Holder

• Compatible with Standard WNMG Inserts

• High stability multi-locking system (M type)

• Detailed product information

5-Point Product Description:

1. Material: Made from high-quality alloy steel for durability and strength, featuring a multi-lock system for secure tool holding.

2. Tool Holder Type: CNC boring bar tool holder with a 95° cutting edge angle and 0° relief angle, designed for effective internal turning operations.

3. Dimensions: Includes a 16mm diameter handle with a total length of 180mm. The cutting blade extends up to 8mm, suitable for precise machining tasks.

4. Accessories: Includes CTM613 pin, HL1810 clamp, ML0620 screw, and L3.0 wrench for convenient installation and maintenance.

5. Insert Compatibility: Compatible with WNMG080404, WNMG080408, WNMG080412, WNMG431, WNMG432, and WNMG433 inserts, offering versatility in machining applications.

Advantages:

• Robust alloy steel construction ensures durability and longevity.
• Multi-lock system provides enhanced stability and rigidity during machining.
• Versatile compatibility with a range of carbide inserts supports various cutting requirements.

Detail Page:

• Internal Turning Tools Holder
• Diameter of Handle: 16mm
• Total Length: 180mm
• Length of Cutting Blade: 8mm
• Tool Cutting Edge Angle: 95°
• Relief of Angle of Blade: 0°
• Pin: CTM613
• Clamp: HL1810
• Screw: ML0620
• Wrench: L3.0
• Blade Compatibility: WNMG080404 WNMG080408 WNMG080412  WNMG431 WNMG432 WNMG433

• Material: Alloy Steel

Applications:

• CNC Machine Tools

• CNC Lathes

• Boring Bar Set

• CNC Lathe Cutter

• Carbide Inserts

Package Includes:

• S16Q-MWLNL08 Tool Holder
• Compatible Clamps, Pins, Screws, and Wrenches

Choosing the S16Q-MWLNL08 ensures reliability, precision, and versatility, making it an indispensable tool for modern machining needs.
