S16Q-MWLNR06 CNC Boring Bar Tool Holder | 95° Cutting Edge | Alloy Steel | 16*6mm
Price shown is a starting point. Contact us for a precise quote based on your requirements.

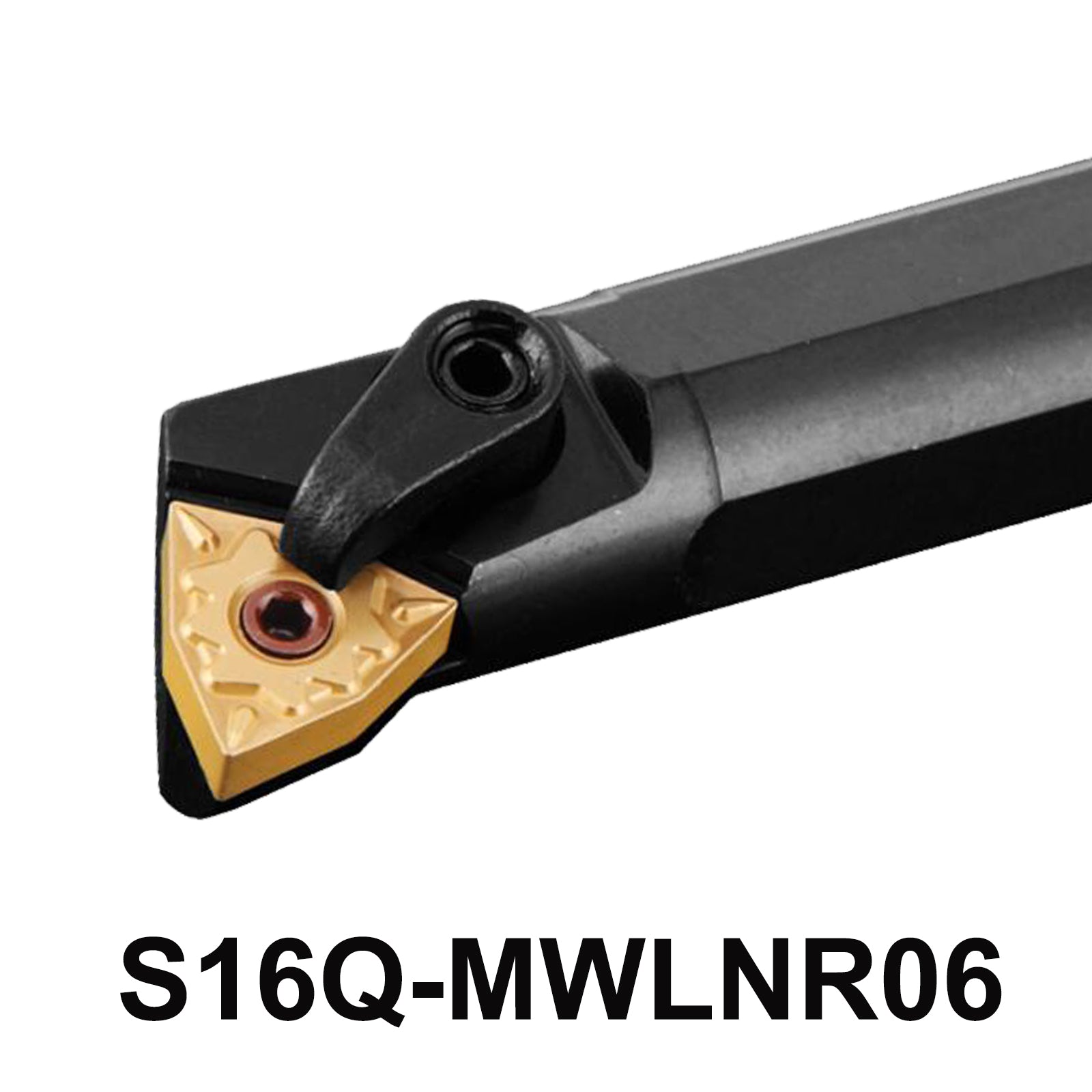

S16Q-MWLNR06 CNC Boring Bar Tool Holder
-
Features of S16Q-MWLNR06
-
Specifications
-
Blade Compatibility
-
Applications
-
Buy S16Q-MWLNR06 Online
-
Precision Machining with 95° Cutting Edge
-
Alloy Steel Construction
-
M-Type Multi-Lock System
-
Tool Holder Dimensions
-
Boring bar accessories
5-point Product Description:
-
Precision Machining: Designed for CNC internal turning operations with a precise 95° cutting edge angle for accuracy.
-
Durable Construction: Made from high-quality alloy steel, ensuring strength and longevity in machining applications.
-
Multi-Lock System: Features an M-type multi-lock system for secure blade clamping during operations.
-
Versatile Blade Compatibility: Compatible with WNMG060404, WNMG060408, WNMG060412, WNMG331, WNMG332, WNMG333 blades, offering flexibility for various machining tasks.
-
Application: Suitable for CNC machine tools and lathes, specifically designed for boring bar setups to enhance cutting efficiency and precision.
Overview:
Explore the S16Q-MWLNR06 CNC Boring Bar Tool Holder, crafted from durable alloy steel with a precise 95° cutting edge angle. Ideal for CNC machine tools and lathes, this tool holder ensures reliable performance in internal turning operations. It features an M-type multi-lock system for secure blade clamping and compatibility with WNMG060404, WNMG060408, WNMG060412, WNMG331, WNMG332, WNMG333 blades.
Detail Page:
- Tool Holder Type: CNC Boring Bar Tool Holder
- Tool Cutting Edge Angle: 95°
- Relief Angle of Blade: 0°
- Material: Alloy Steel
- Model: S16Q-MWLNR06
- Handle Diameter: 16mm
- Total Length: 180mm
- Length of Cutting Blade: 6mm
- Pin: CTM511
- Clamp: HL1511
- Screw: ML0520
- Wrench: L2.0
- Blade Compatibility: WNMG060404, WNMG060408, WNMG060412, WNMG331, WNMG332, WNMG333
Applications:
The S16Q-MWLNR06 CNC turning tool holder is primarily used for:
- External turning operations
- CNC turning applications
- Machining tasks requiring precise external profiles
Advantages:
- Durable Construction: Built to withstand demanding machining environments.
- Precision Machining: Designed with an optimized cutting edge angle for accurate external turning.
- Secure Locking: Reliable locking mechanism ensures stability during high-speed operations.
- Versatile Compatibility: Compatible with various inserts, supporting diverse machining needs.
Package Includes:
- S16Q-MWLNR06 Tool Holder
- Compatible Clamps, Pins, Screws, and Wrenches
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
