S16Q-SCZCL09 CNC Internal Boring Bar Tool Holder | Precision Tool Holder Compatible with CCMT Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Overview:
The S16Q-SCZCL09 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered for precision and durability in CNC machining operations. Featuring a cutting edge angle of 93° and a relief angle of 7°, it is ideal for internal turning tasks. Constructed from robust alloy steel with a screw-type design, this tool holder ensures secure and stable performance. It accommodates various CCMT carbide inserts, including CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, and CCMT3(2.5)2. The tool holder has a handle diameter of 16mm, a total length of 180mm, and a cutting blade length of 9mm, making it suitable for diverse CNC machine tools and lathes.
Applications:
Perfect for use with CNC machine tools and lathes, this tool holder excels in internal turning, boring, and precision machining across various industries.
Detail Page
- Material: Alloy Steel
- Type: S-Type (Screw-type)

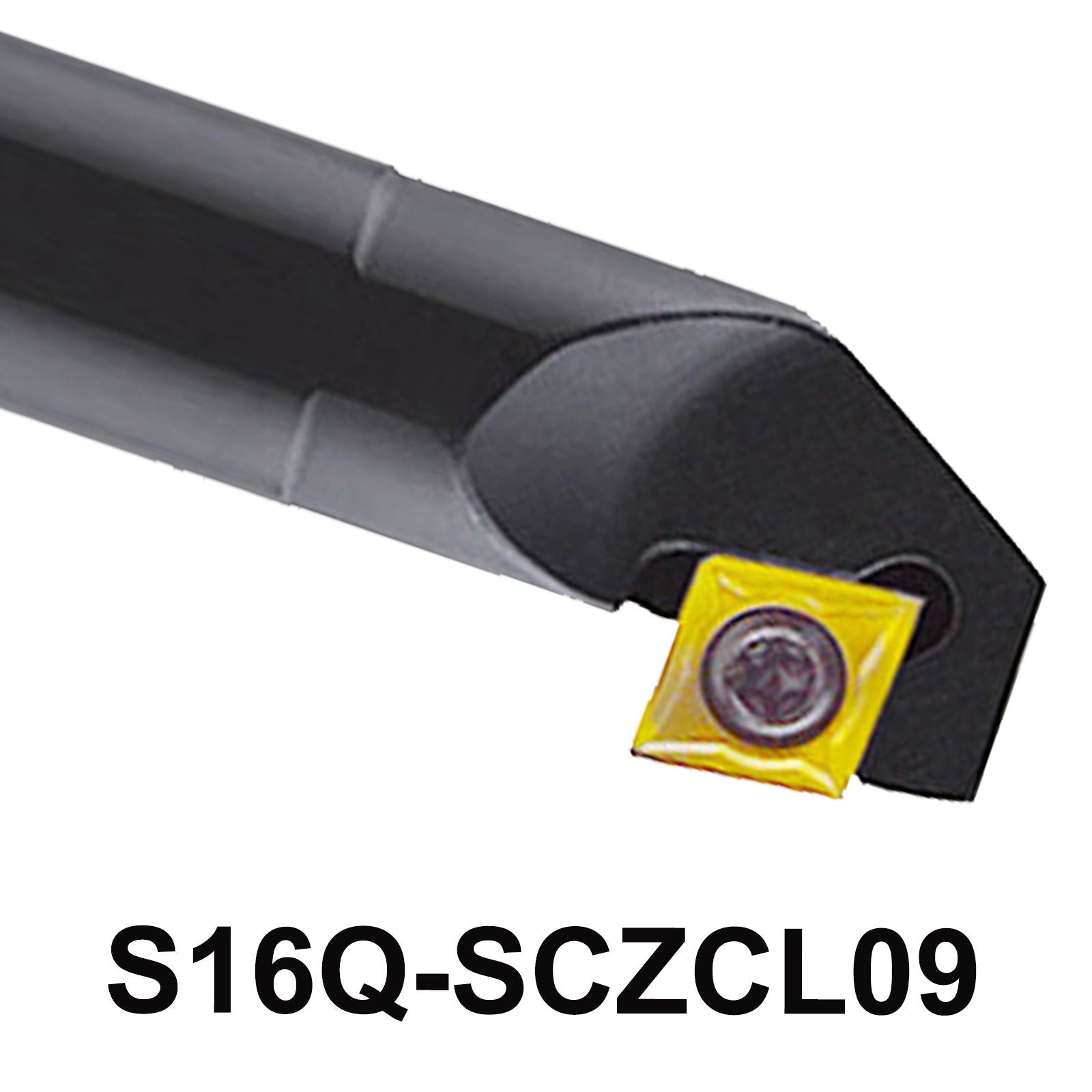

- Model: S16Q-SCZCL09
- Handle Diameter: 16mm
- Total Length: 180mm
- Cutting Blade Length: 9mm
- Included Accessories: M4*8 Screw, T15 Wrench
- Compatible Inserts: CCMT09T302,CCMT09T304,CCMT09T308,CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2
S16Q-SCZCL09 CNC Internal Boring Bar Tool Holder | Precision Lathe Tool Holder for Machining
-
Enhance Precision with the S16Q-SCZCL09 Internal Boring Bar Tool Holder
-
Durable Alloy Steel Construction for Reliable Performance
-
Versatile Compatibility with CCMT Carbide Inserts for Superior Machining
-
Cutting Edge Angle of 93° for Accurate Internal Machining
-
Secure Screw-Type Design for Stable Operation
-
Cutting Blade Length: 9mm for Precision Tasks
5-point description:
- Precision Machining: With a 93° cutting edge angle and 7° relief angle, this tool holder ensures precise internal turning operations.
- Durable Alloy Steel: Crafted from high-quality alloy steel, this tool holder offers longevity and resistance to wear.
- Versatile Inserts: Compatible with various CCMT carbide inserts including CCMT09T302, CCMT09T304, and CCMT09T308.
- Ideal for CNC Applications: Tailored for CNC lathes and machine tools, perfect for boring bars and internal turning tasks.
- Ease of Use: Comes with M2.5*6 screws and a T8 wrench for simple and convenient installation and setup.
Reasons to Choose:
- Enhanced Cutting Accuracy: The 93° cutting edge angle delivers precise results in internal machining.
- Robust Alloy Steel Build: Guarantees durability and resistance to wear in demanding environments.
- Flexible Insert Options: Accommodates various CCMT inserts for different machining requirements.
- Convenient Installation: Comes with necessary hardware for straightforward setup and maintenance.
- Reliable Performance: Designed for rigorous CNC lathe operations, ensuring consistent quality.
