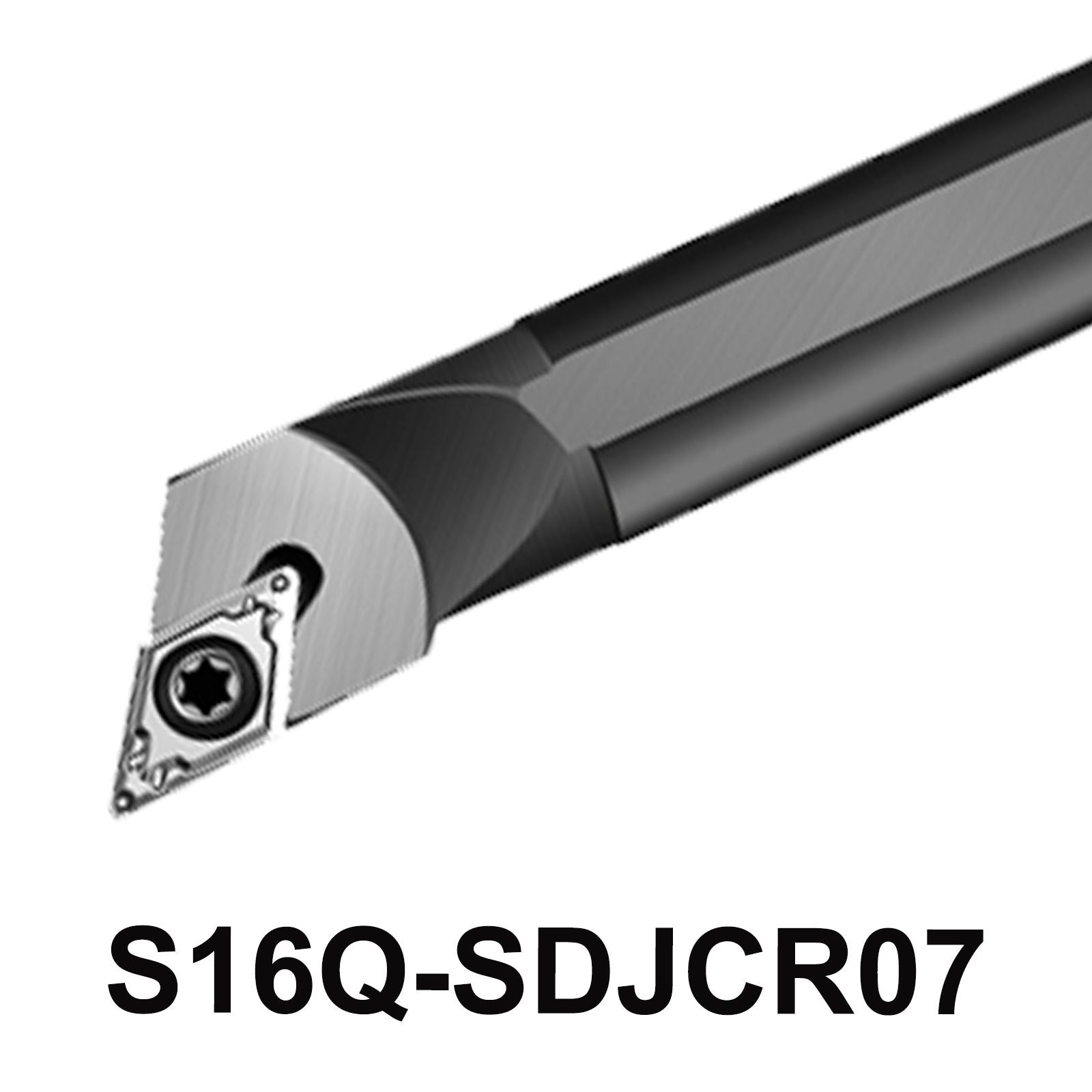

High-Precision CNC Internal Boring Bar Tool Holder S16Q-SDJCR07 | Durable Alloy Steel Construction
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Why Choose the S16Q-SDJCR07:
- Exceptional Accuracy: Designed for precise internal boring, reducing errors and enhancing quality.
- Robust Durability: Alloy steel construction ensures long-term performance and reliability.
- Versatile Usage: Supports a wide range of carbide inserts for diverse applications, making it a valuable addition to any workshop.
Overview:
The S16Q-SDJCR07 is a high-performance CNC internal boring bar tool holder designed for precision and durability. With a tool cutting edge angle of 93° and a 7° relief angle, this tool holder ensures accurate internal turning and superior cutting performance. Crafted from high-grade alloy steel, it features a robust S-type (screw-type) design, providing enhanced stability and durability. Ideal for CNC machine tools and lathes, it supports various blades including DCMT070202 and DCMT070208, making it a versatile choice for machining operations.
Key Features
- Cutting Edge Angle: 93°
- Relief Angle: 7°
- Material: Alloy Steel
- Handle Diameter: 16mm
- Total Length: 180mm
- Blade Length: 7mm
- Compatible Inserts: DCMT070202, DCM070204, DCMT070208, DCMT2(1.5)0, DCMT2(1.5)1, DCMT2(1.5)2
- Includes: M2.5*6 Screws, T8 Wrench
S16Q-SDJCR07 CNC Internal Boring Bar Tool Holder – Precision Engineering for Optimal Performance S16Q-SDJCR07
-
Enhanced Internal Turning with 7° Blade Relief
-
Robust 16mm Handle Diameter for Stability
-
Quick Adjustment with S-Type Screw System
-
High-Precision Cutting with 93° Edge Angle
-
Durable Alloy Steel Construction for Longevity
-
Versatile Compatibility with Multiple Carbide Inserts
5-Point Description
- Application: Designed for CNC machine tools and lathes, this tool holder excels in internal boring and turning tasks, providing precise and efficient results.
- Advantages: Features a 93° cutting edge angle and a 7° blade relief angle for enhanced cutting precision. Constructed from high-strength alloy steel for long-lasting durability.
- Compatibility: Supports a variety of blade models including DCMT070202, DCMT070204, DCMT070208, DCMT2(1.5)0, DCMT2(1.5)1, and DCMT2(1.5)2, offering versatility for different machining needs.
- Choose Reasons: Opt for the S16Q-SDJCR07 for its superior precision, robust alloy steel construction, and compatibility with a range of blades, making it a versatile and reliable choice for CNC machining.
- Keywords: CNC lathe tool holder, internal boring bar tool holder, precision machining tool, alloy steel tool holder, CNC internal turning tools.
Applications:
- CNC Machine Tools: Enhances precision and efficiency in CNC operations.
- CNC Lathes: Perfect for internal turning tasks with various carbide inserts.
- Boring Bar Sets: Ideal for use in comprehensive boring bar setups.
Advantages:
- Precision Performance: The 93° cutting edge and 7° relief angle ensure precise internal boring with minimal adjustments.
- Durable Construction: Alloy steel material provides long-lasting durability and reliability under heavy use.
- Versatile Compatibility: Works with multiple carbide inserts, offering flexibility for different machining needs.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
