Advantages:

• Enhanced Precision: The tool holder's cutting edge angle and relief angle ensure high accuracy and efficient chip removal.

• Robust Durability: Alloy steel construction offers long-lasting performance and resistance to wear and tear.

• Versatile Insert Compatibility: Supports multiple DCMT carbide inserts, making it adaptable to different machining requirements.


Overview:

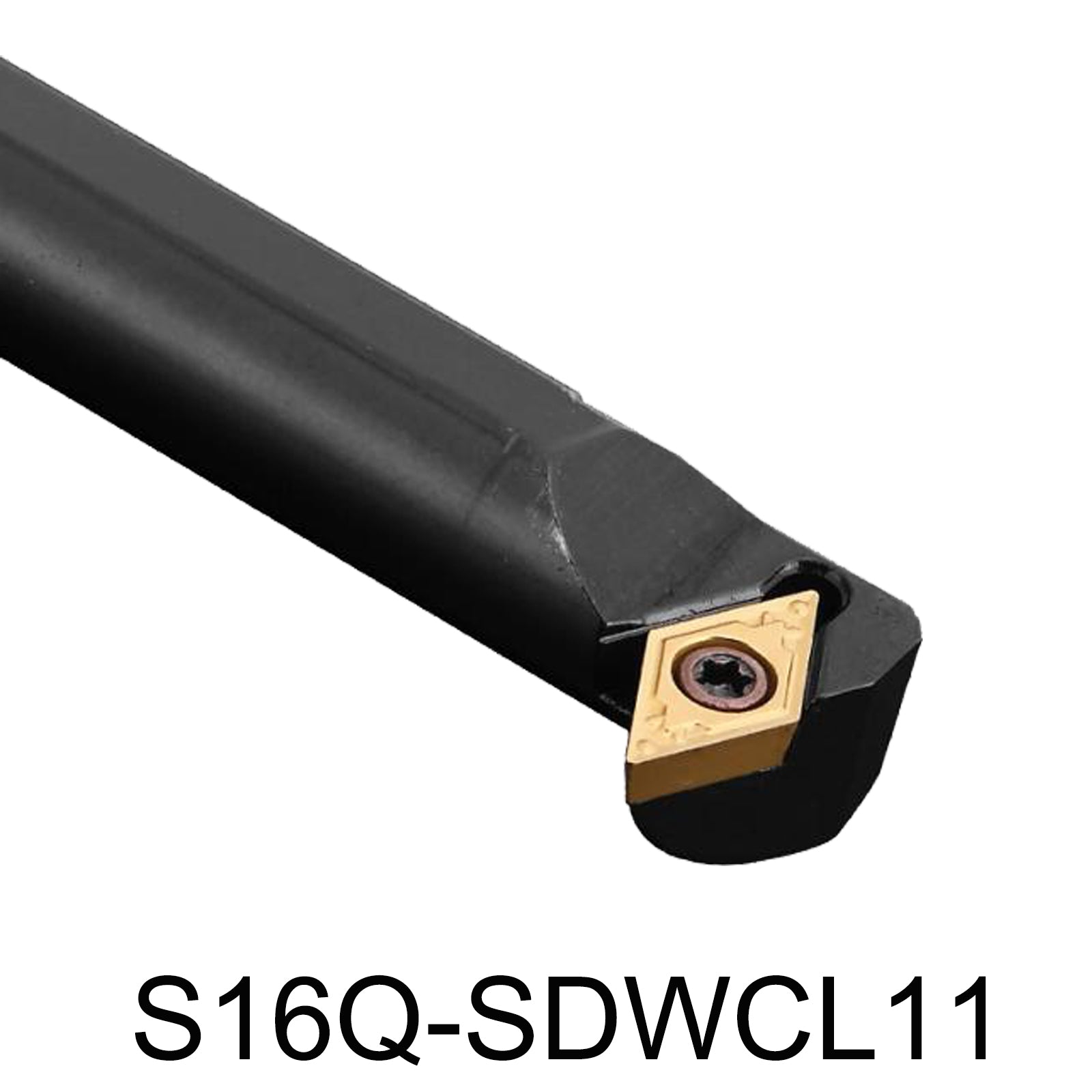

The S16Q-SDWCL11 Mechanical Lathe boring bar holder lathe, featuring a 62.5° cutting edge angle and a 7° relief angle, this tool holder is built from durable alloy steel and utilizes a screw-type design for stable and secure operation. With a handle diameter of 16mm, a total length of 180mm, and a cutting blade length of 11mm, the S16Q-SDWCR11 is compatible with a range of DCMT carbide inserts, including DCMT11T302, DCMT11T304, DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1, and DCMT3(2.5)2.

Key Features

• Cutting Edge Angle: 62.5°
• Relief Angle: 7°
• Material: Alloy Steel
• Handle Diameter: 16mm
• Total Length: 180mm
• Blade Length: 7mm
• Compatible Inserts: Blade:DCMT11T302,DCMT11T304,DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1,DCMT3(2.5)2
• Includes: M4*8 Screws, T15 Wrench

Applications:

• Internal Turning: Ideal for precise internal boring and turning tasks in CNC machine tools and lathes.
• Machining Operations: Suitable for various machining operations requiring high accuracy and durability.
• Professional Use: Designed for use in professional machining environments where reliability and precision are critical.

S16Q-SDWCL11 Internal Lathe Boring Bar Tool Holder S16Q SDWCL11 boring head for milling machine

• Achieve Precision with the S16Q-SDWCL11 Internal Boring Bar Tool Holder

• Superior Durability with Alloy Steel Construction for Reliable Performance

• Versatile Compatibility with DCMT Carbide Inserts for Optimal Cutting

• 62.5° Cutting Edge Angle for Accurate Internal Machining

• 7° Relief Angle for Efficient Chip Flow and Tool Longevity

• Handle Diameter of 16mm and Total Length of 180mm for Comfortable Handling

5-Point Description:

1. Precision Cutting Angle: Features a 62.5° cutting edge angle for precise internal machining and a 7° relief angle for efficient chip management.
2. Durable Construction: Made from high-strength alloy steel for increased longevity and reliable performance in demanding machining environments.
3. Versatile Compatibility: Compatible with a range of DCMT carbide inserts, including DCMT11T302, DCMT11T304, DCMT11T308, and DCMT3(2.5)0, DCMT3(2.5)1, DCMT3(2.5)2.
4. Stable Design: Screw-type design ensures secure tool holding and stability, enhancing machining accuracy.
5. Convenient Dimensions: Handle diameter of 16mm, total length of 180mm, and cutting blade length of 11mm provide optimal handling and performance.
