Overview

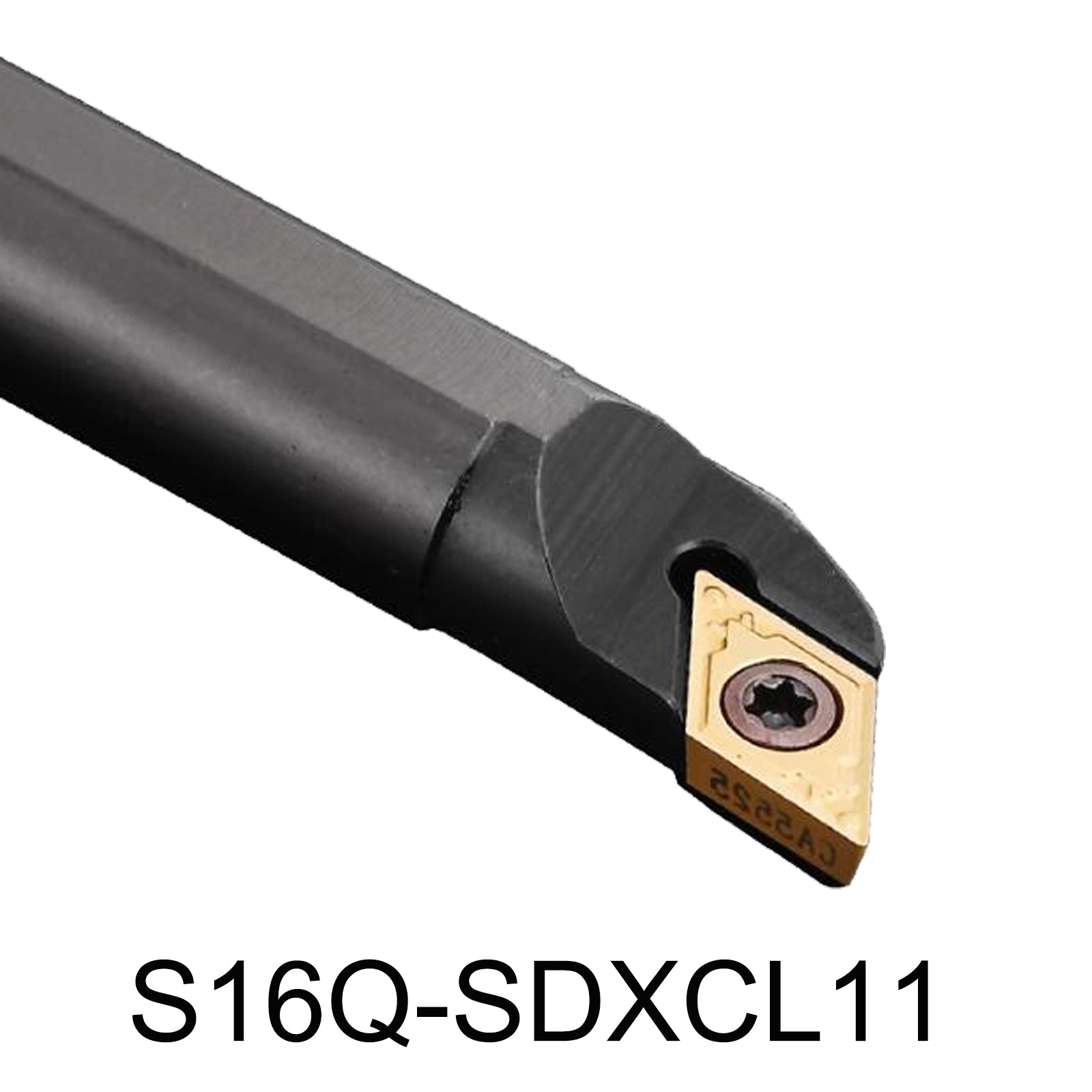

The S16Q-SDXCL11 CNC Internal Boring Bar Tool Holder is engineered to deliver precision and durability for internal boring tasks. Featuring a cutting edge angle of 95° and a 7° relief angle, it ensures smooth and accurate cutting. Constructed from robust alloy steel, it is designed for extended use in demanding environments. With a 16mm handle diameter and 180mm total length, it offers excellent control and stability. This tool holder is compatible with various DCMT inserts, making it versatile for CNC machine tools and lathes.

Key Features

• Cutting Edge Angle: 95°
• Relief Angle: 7°
• Material: Alloy Steel
• Handle Diameter: 16mm
• Total Length: 180mm
• Blade Length: 11mm
• Compatible Inserts: DCMT11T302,DCMT11T304,DCMT11T308,DCMT11T312 DCMT3(2.5)0, DCMT3(2.5)1,DCMT3(2.5)2,DCMT3(2.5)3
• Includes: M4*10 Screws, T15 Wrench

BEYOND S16Q-SDXCL11 Internal Turning Tools Holder S16Q  SDXCL 11 Boring Bar CNC Lathe Cutter Machine DCMT11T3 Carbide Inserts

1. Enhanced Cutting Performance with 95° Tool Angle

2. Durable Alloy Steel Construction for Long-Term Use

3. Compatible with Multiple DCMT Inserts for Versatile Applications

1. Optimized Relief Angle for Smooth Cutting

2. Ergonomic Design: 16mm Diameter Handle and 180mm Length

3. User-Friendly Adjustments with Screw-Type Mechanism

Reason to Choose S16Q-SDXCL11?

The S16Q-SDXCL11 tool holder stands out for its combination of precision, durability, and versatility, making it a top choice for professionals seeking reliable performance in internal boring applications. Its robust construction and compatibility with various inserts ensure it meets the needs of complex machining tasks.

Application

Ideal for internal boring operations on CNC machine tools and lathes, the S16Q-SDXCL11 tool holder is designed for precise and efficient machining of various materials.

Advantages

1. Precision: Ensures accurate internal boring with optimized cutting angles.
2. Durability: High-quality alloy steel construction offers superior wear resistance.
3. Versatility: Compatible with multiple DCMT inserts for diverse applications.
4. Ease of Use: Simple adjustment mechanism with screw-type design.
5. Control: Ergonomic dimensions provide better handling and stability during machining.

5-Point Description

1. Precision Cutting: 95° cutting edge angle and 7° relief angle for accurate internal boring.
2. Durable Construction: Made from high-grade alloy steel for long-lasting performance.
3. Ergonomic Design: 16mm handle diameter and 180mm total length for improved control and stability.
4. Versatile Compatibility: Supports a range of DCMT inserts including DCMT11T302,DCMT11T304,DCMT11T308,DCMT11T312 DCMT3(2.5)0, DCMT3(2.5)1,DCMT3(2.5)2,DCMT3(2.5)3
5. Easy Adjustment: S-type screw mechanism with M4*10 screws and T15 wrench for user-friendly adjustments.
