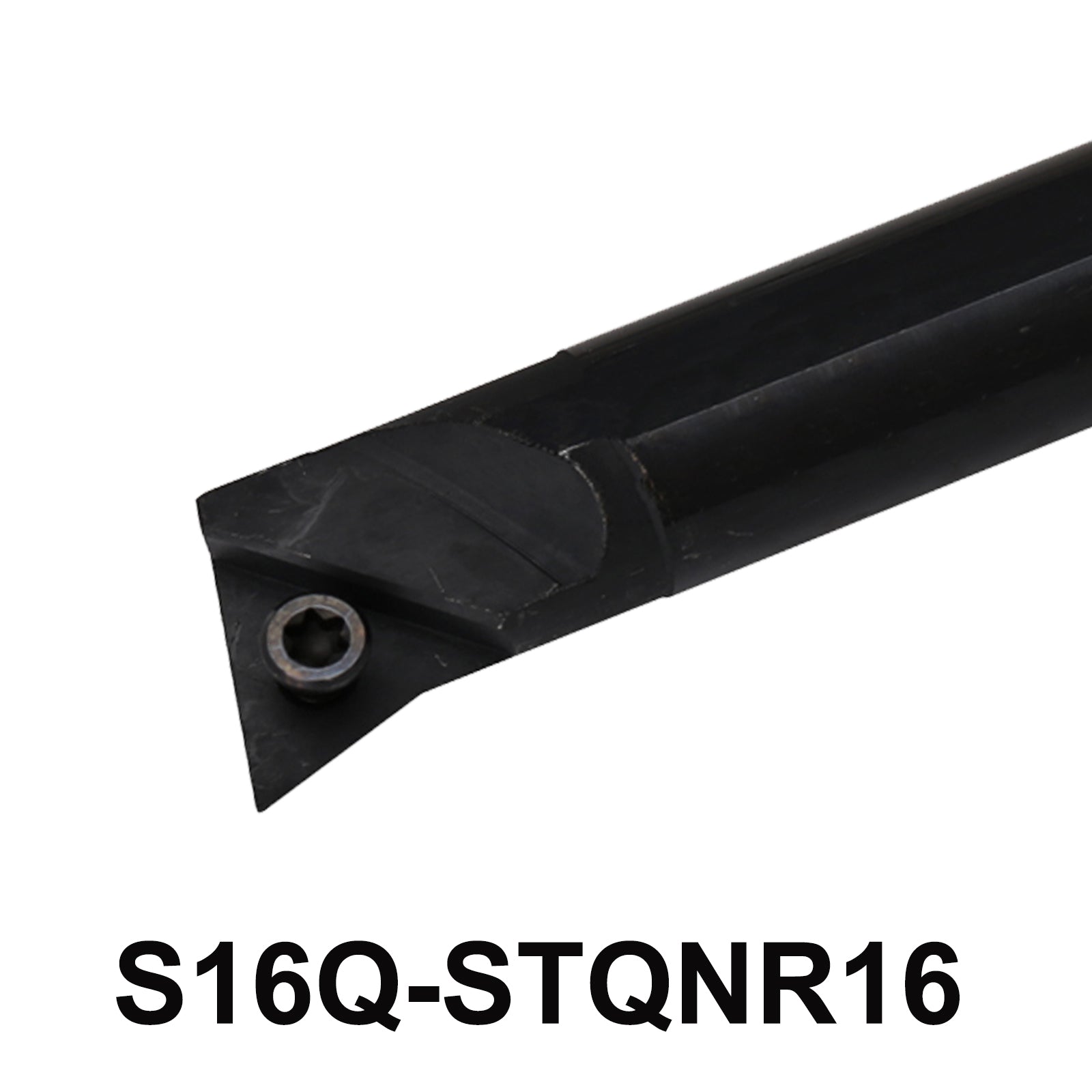

S16Q-STQNR16 Internal Boring Bar Tool Holder for CNC Lathe, 16mm Diameter, 180mm Length
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Overview:
The S16Q-STQNR16 Internal Boring Bar Tool Holder is a precision tool designed for CNC machine tools and lathes. Crafted from durable alloy steel, it features a 105° cutting edge angle and 0° relief angle for efficient chip evacuation. Ideal for internal turning operations, this tool holder ensures high-performance machining with a 16mm diameter handle and a total length of 180mm. It includes a robust M3.5*13T screw and T15 wrench for secure fitting and ease of use.
Specifications:
- Tool Cutting Edge Angle: 105°
- Relief Angle of Blade: 0°
- Material: Alloy Steel
- S-type System
- Model: S16Q-STQNR16
- Diameter of Handle: 16mm
- Total Length: 180mm
- Length of Cutting Blade: 16mm
- Screw: M3.5*13T
- Wrench:T15

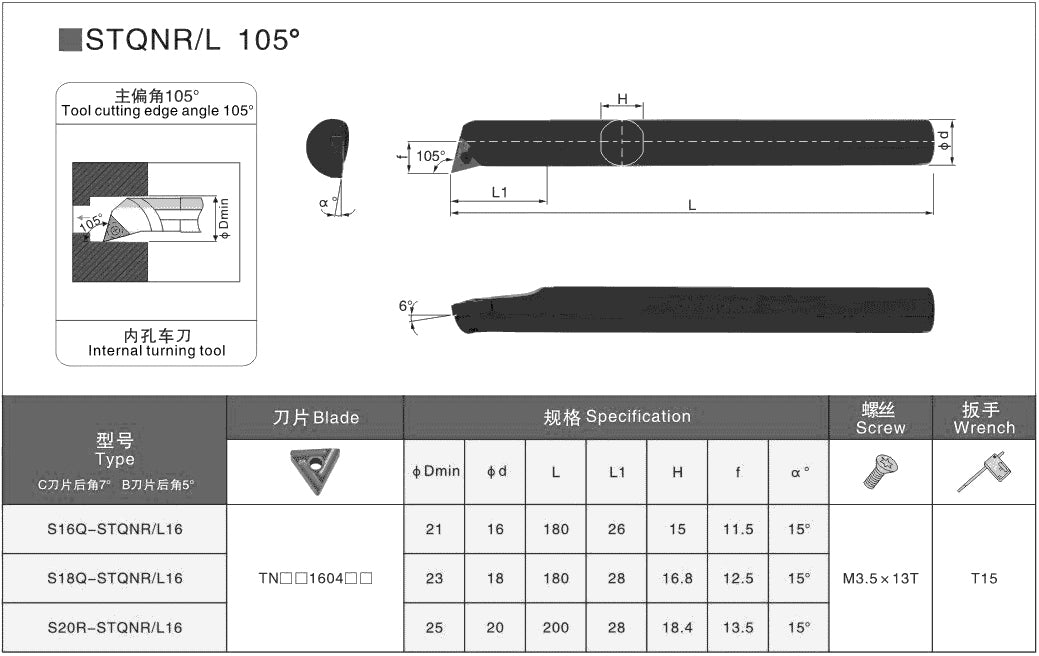

- Compatible Blade Models: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
5-Point Product Description:
- Durable Construction: Made from high-quality alloy steel for long-lasting performance.
- Optimized Cutting Geometry: Features a 105° cutting edge angle and 0° relief angle for efficient chip removal.
- Versatile Compatibility: Compatible with TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, and TNMG333 inserts.
- Secure Fitting: Includes an M3.5*13T screw and T15 wrench for secure attachment and easy setup.
- Application: Suitable for CNC machine tools and lathes, ideal for internal turning and boring operations.
Advantages
-
Precision Machining: Designed for CNC machine tools, it offers precise internal turning and boring operations, ensuring accuracy in machining tasks.
-
Durable Alloy Steel Construction: Crafted from high-quality alloy steel, the tool holder provides durability and reliability in demanding machining environments.
-
Optimized Cutting Edge: The 105° cutting edge angle and 0° relief angle enhance cutting efficiency, promoting smooth chip evacuation and improving surface finish.
-
Versatile Compatibility: Compatible with a range of TNMG inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), allowing flexibility in tooling options.
-
Secure Attachment: Includes an M3.5*13T screw and T15 wrench for secure fixing and easy setup, ensuring stable performance during operations.
-
Application Flexibility: Ideal for CNC lathes and machine tools, suitable for various internal turning applications, enhancing productivity in manufacturing processes.
Package Includes:
- S16Q-STQNR16 Tool Holder
- Compatible Screws, and Wrenches
S16Q-STQNR16 Internal Boring Bar for CNC Machines Lathes
-
High quality alloy steel, safe and reliable
-
Suitable for a series of TNMG blades
-
Designed for CNC lathe machining
-
Features and Specifications
-
Applications and Advantages
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
