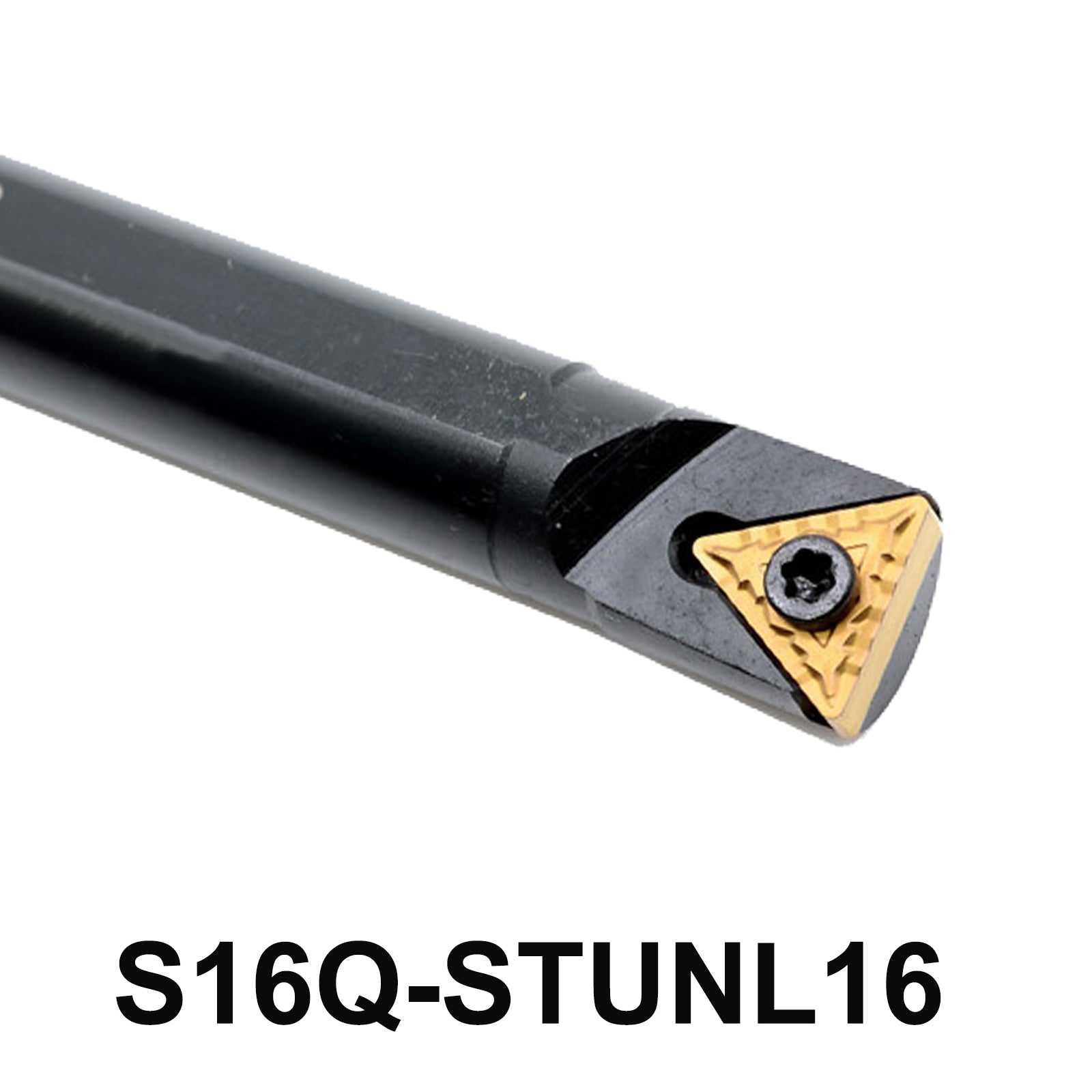

Overview: The S16Q-STUNL16 boring bar holder is an essential tool for CNC machining, known for its robust alloy steel construction and precise cutting edge angles. Ideal for internal turning tasks, it supports a range of TNMG inserts and ensures reliable performance in manufacturing environments.

Specifications and Dimensions:

• Model: S16Q-STUNL16
• Type: Left-hand tool holder
• Material: Alloy steel
• Handle Diameter: 16mm
• Total Length: 180mm
• Cutting Blade Length: 16mm
• Screw: M3.5*13T
• Wrench: T15
• Compatible Inserts: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

Advantages:

1. High Precision: The S16Q-STUNL16 holder ensures precise machining due to its 93° tool cutting edge angle and 0° relief angle, enhancing the quality of finished components.

2. Durable Construction: Made from alloy steel, it offers durability and reliability in demanding machining environments, ensuring long-term performance.

3. Versatility: Compatible with a range of TNMG inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), allowing for flexibility in machining different materials and geometries.

4. Easy Installation: Includes an M3.5*13T screw and T15 wrench for secure attachment to the lathe, facilitating quick tool changes and minimizing downtime.

5. Enhanced Productivity: Enables efficient machining operations, reducing cycle times and improving overall productivity in manufacturing processes.

Applications:

• CNC Machining: Specifically designed for use in CNC machine tools and lathes, the S16Q-STUNL16 boring bar holder excels in precision machining operations.
• Internal Turning: Ideal for internal turning tasks, including facing, grooving, and threading operations within a workpiece.
• Metalworking: Suitable for working with various materials, including steel, stainless steel, and non-ferrous metals

Package Includes:

• S16Q-STUNL16 Tool Holder
• Compatible Screws and Wrenches

S16Q-STUNL16 Boring Bar Holder: Precision Tool for CNC Lathes

Buy S16Q-STUNL16 Boring Bar Holder - Alloy Steel, CNC Lathe Tool

• Overview

• Technical Specifications

• Applications

5-Point Product Description:

1. Precision Machining Tool: The S16Q-STUNL16 boring bar holder is crafted from high-quality alloy steel, ensuring durability and precision in CNC lathe operations.

2. Optimized Design: Featuring a 93° tool cutting edge angle and a 0° relief angle, it supports TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, and TNMG333 inserts for versatile machining capabilities.

3. Secure Fixing: Includes an M3.5*13T screw and T15 wrench for easy and secure attachment, providing stability during machining tasks.

4. Application Versatility: Ideal for internal turning applications on CNC lathes and machining centers, enhancing productivity and machining precision.

5. Durable Construction: With a 16mm diameter handle and total length of 180mm, this tool holder is designed for reliability and longevity in industrial settings.
