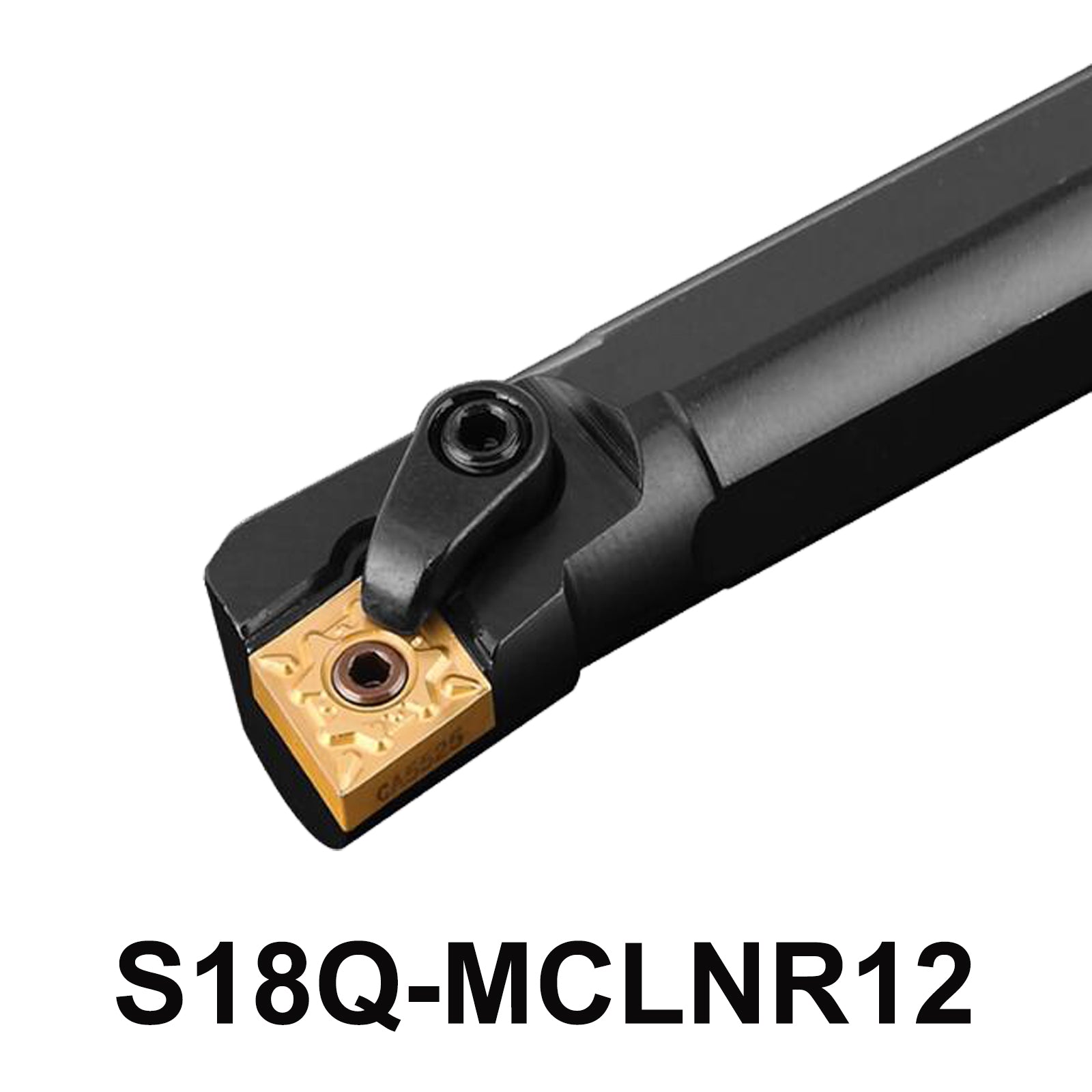

S18Q-MCLNR12 InternalTurning Tool Holder - 18mm Handle, 180mm Length, Alloy Steel, CNC Lathe Cutter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Product Name:S18Q-MCLNR12 Right Tool Holder
Overview:Introducing the S18Q-MCLNR12 Internal Turning Tool Holder, crafted from high-quality alloy steel for precision machining in CNC lathes and machining centers. This tool holder features an 18mm handle diameter and 180mm total length, with a 12mm cutting blade length. It boasts a 95° cutting edge angle and a relief angle of 0° for effective chip control and precise internal turning operations. Compatible with CNMG120404, CNMG120408, CNMG120412, CNMG120416, CNMG431, CNMG432, CNMG433, CNMG434 inserts
Features:
- Tool Cutting Edge Angle: 95°
- Rellef of angle of blade:0°
- Material: Alloy Steel
- Diameter of Handle: 18mm
- Length of cutting blade:12mm
- Total Length: 180mm
- Shim:MC1204
- Pin: CTM613
- Clamp: HL1810
- Screw: ML0620
- Wrench: L3.0
- Insert Compatibility: CNMG120404 CNMG120408 CNMG120412, CNMG120416 CNMG431 CNMG432 CNMG433 CNMG434
Inspect the Holder and Accessories
Before installation, ensure that the S18Q-MCLNR12 tool holder and accompanying accessories (CTM613 pin, HL1810 clamp, ML0620 screw, L3.0 wrench) are free from damage and defects.
Why Choose the S18Q-MCLNR12 Tool Holder?
the S18Q-MCLNR12 Tool Holder stands out for its durability, precise cutting capabilities, versatility with insert options, comprehensive accessory kit, suitability for CNC machining, and professional-grade performance. Choosing this tool holder translates to enhanced machining efficiency, improved tool life, and superior results in internal turning applications.
S18Q-MCLNR12 Internal Turning Tool Holder S18Q MCLNR12 boreing bar
-
Superior Material: Made from high-quality alloy steel for durability and strength.
-
Optimized Design: 95° cutting edge angle ensures efficient cutting and reduced wear.
-
Versatile Compatibility: Supports various CNMG series blades for flexibility in machining tasks.
-
95° Cutting Edge Angle for Precision Machining
-
Robust Construction with 18mm Shank
-
Ideal for Various Machining Operations
5-Point Description:
-
Durable Alloy Steel Construction: Built from robust alloy steel for longevity and reliability in demanding CNC machining environments.
-
Optimized Cutting Edge: Features a 95° cutting edge angle and 0° relief angle, ensuring efficient chip control and precise internal turning operations.
-
Versatile Insert Compatibility: Compatible with a range of CNMG inserts (CNMG120404, CNMG120408, CNMG120412, CNMG120416, CNMG431, CNMG432, CNMG433, CNMG434), offering flexibility for various turning applications.
-
Comprehensive Kit: Includes CTM613 pin, HL1810 clamp, ML0620 screw, and L3.0 wrench for easy setup and maintenance on CNC machines.
-
Ideal for CNC Machining: Mainly used in CNC lathes and machining centers, particularly effective in boring bar setups for precise internal turning with carbide inserts.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
