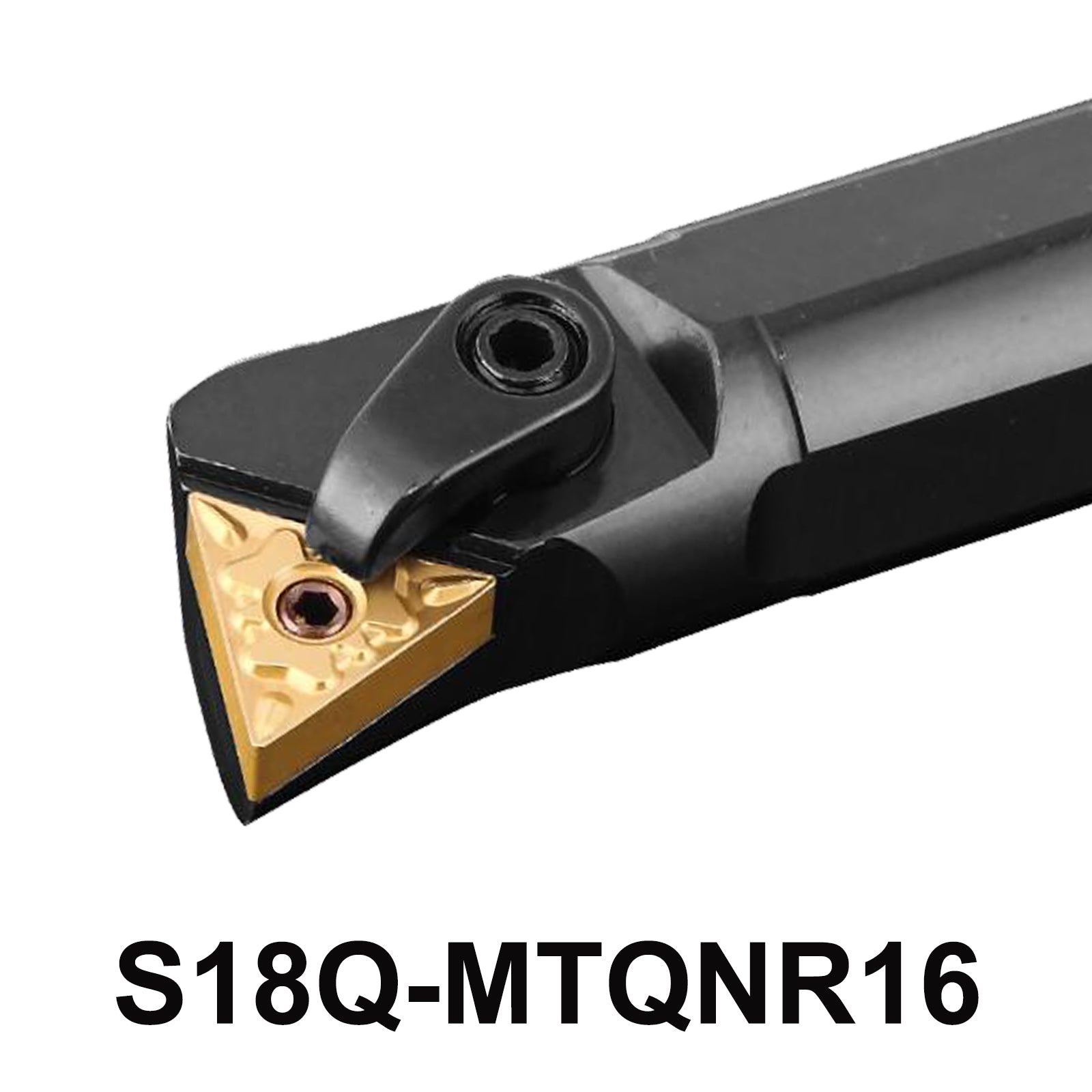

S18Q-MTQNR16 CNC Right Internal Boring Bar Tool Holder | 18mm Diameter Alloy steel
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S18Q-MTQNR16 CNC Internal Boring Bar Tool Holder CNC lathe cutting tool
-
Specifications, 5-Point Description, Applications
-
Material, Included Accessories, Compatibility
S18Q-MTQNR16 CNC Internal Boring Bar Tool Holder, 16mm Diameter
Overview:
The S18Q-MTQNR16 is a high-performance CNC internal boring bar designed for precision machining operations. Featuring a 105° cutting edge angle and crafted from durable alloy steel with an M-type multi-lock system, this tool holder ensures stability, rigidity, and exceptional machining accuracy.
Specifications:
- Tool Holder Type: Right-hand tool holder
- Tool Cutting Edge Angle: 105°
- Relief Angle of Blade: 0°
- Internal Turning Tools Holder Material: Alloy steel
- Model: S18Q-MTQNR16
- Diameter of Handle: 18mm
- Total Length: 180mm
- Length of Cutting Blade: 16mm
- Included Accessories: Pin CTM511, Clamp HL1810, Screw ML0620, Wrenches L2.0, L3.0
- Compatible Blade Inserts (Blade Types): TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
5-Point Description:
- Precision Machining: Optimized for internal turning tasks with a 105° cutting edge angle for efficient material removal.
- Durability: Made from high-quality alloy steel, ensuring longevity and reliability in CNC machine tools and lathes.
- Stability: Features an M-type multi-lock system for enhanced stability and precision during machining operations.
- Versatility: Ideal for a range of applications including facing, profiling, and chamfering in CNC environments.
- Complete Set: Includes essential accessories like pins, clamps, screws, and wrenches for immediate setup and use.
Application:
Ideal for CNC machine tools and CNC lathes, suitable for internal turning operations.
Advantages:
- High-Quality Alloy Steel: Ensures durability and reliability in demanding machining environments.
- Optimized Cutting Edge: 105° cutting edge angle enhances cutting performance and extends tool life.
- Secure Insert Clamping: M-type multi-lock system provides stability and precision during machining.
- Precise Dimensions: 16mm diameter handle with 180mm total length, including a 16mm cutting blade length, for precise machining operations.
- Comprehensive Accessories: Includes essential accessories for convenient setup and operation on CNC lathes.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
