S18Q-MTUNR16 CNC Internal Boring Bar Tool Holder 16*180mm Alloy Steel Compatible with TNMG Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.

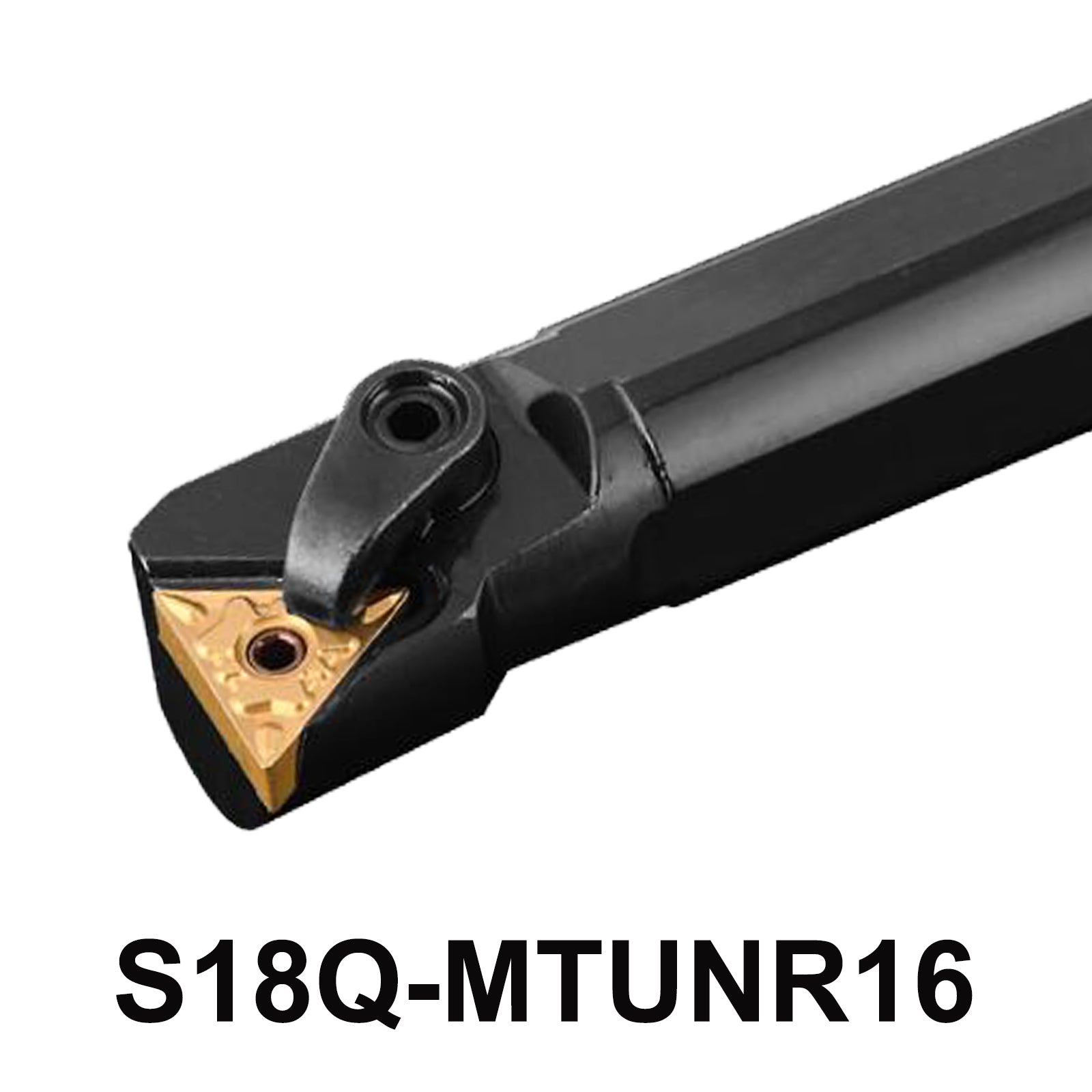

S18Q-MTUNR16 Internal Boring Bar Tool Holder
S18Q-MTUNR16 Precision Tool Holder for CNC Machines
-
Alloy Steel Construction, 95° Cutting Edge Angle
-
Specifications,Features,Accessories,Compatibility,Applications
Product Name: S18Q-MTUNR16 Right Internal Tool Holder
Overview:
The S18Q-MTUNR16 is an internal boring bar designed as a right-hand tool holder, featuring a tool cutting edge angle of 95° and a relief angle of 0°. Crafted from durable alloy steel with an M-type multi-lock system, it offers stability and precision in CNC machine tools and lathes. This versatile tool holder comes complete with essential accessories and is compatible with a range of TNMG series carbide inserts.
Detail Page:
- Material: Alloy Steel
- Tool Holder Type: Right-hand
- Tool Cutting Edge Angle: 95°
- Relief Angle of Blade: 0°
- Model: S18Q-MTUNR16
- Diameter of Handle: 18mm
- Total Length: 180mm
- Length of Cutting Blade: 16mm
- Included Accessories: CTM511 Pin, HL1810 Clamp, ML0620 Screw, L2.0, L3.0 Wrenches
- Compatible Inserts: TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
Applications:
- CNC machine tools,CNC lathes
- Boring bar setups
- Internal turning operations
5-Point Description:
- Premium Quality: Made from alloy steel for durability and long-lasting performance.
- Optimized Design: 95° cutting edge angle and 0° relief angle for precise internal turning.
- Secure Clamping: M-type multi-lock system ensures stability during machining.
- Versatile Compatibility: Supports a range of TNMG carbide inserts (TNMG160402, TNMG160404, etc.).
- Easy Setup: Includes CTM511 pin, HL1810 clamp, ML0620 screw, and L2.0/L3.0 wrenches for convenient installation and maintenance.
Benefits:
- Provides precise internal turning capabilities.
- Durable alloy steel construction for longevity.
- Secure multi-lock system enhances stability.
- Compatible with a wide range of TNMG carbide inserts.
- Ideal for CNC lathes and machine tools.
Buyer's Guide:
- Verify compatibility with your CNC machine specifications.
- Choose appropriate carbide inserts based on material and cutting requirements.
- Maintain regular inspections and maintenance for optimal performance.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
