S20R-MCKNL12 Internal Turning Left Tool Holder - 20mm Diameter, 200mm Length M-type with CNMG Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.

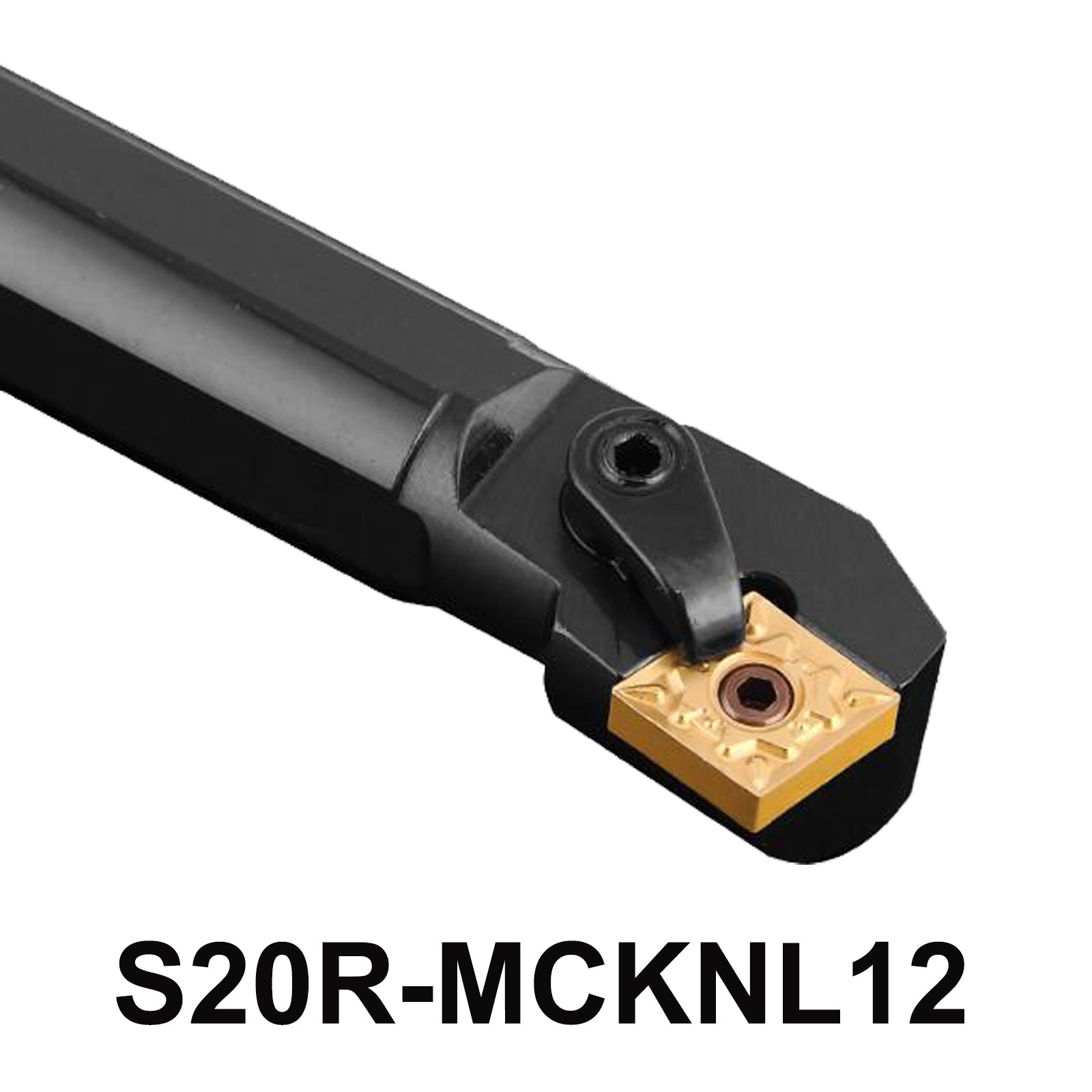

Product Name:S20R-MCKNL12 Left Tool Holder
Overview: The S20R-MCKNL12 is a precision internal turning tool holder designed for CNC lathes and machining centers. Crafted from high-quality alloy steel, it ensures durability and reliability in machining operations. The tool holder features a 75° tool cutting edge angle, offering optimal performance for various turning applications.
Features:
- Tool Cutting Edge Angle: 75°
- Rellef of angle of blade:0°
- Material: Alloy Steel
- Diameter of Handle: 20mm
- Length of cutting blade:12mm
- Total Length: 200mm
- Pin: CTM613
- Clamp: HL1810
- Screw: ML0620
- Wrench: L3.0
- Blade Compatibility: CNMG120404 CNMG120408 CNMG120412, CNMG120416 CNMG431 CNMG432 CNMG433 CNMG434
Applications: Ideal for CNC machine tools, CNC lathes, and machining centers, the S20R-MCKNL12 tool holder excels in internal turning operations, providing consistent performance and longevity.
S20R-MCKNL12 Left Tool Holder for CNC Machines S20R MCKNL12
-
Superior Material: Made from high-quality alloy steel for durability and strength.
-
Optimized Design: 75° cutting edge angle ensures efficient cutting and reduced wear.
-
Versatile Compatibility: Supports various CNMG series blades for flexibility in machining tasks.
- 75° Cutting Edge Angle for Precision Machining
- Robust Construction with 20mm Shank
- Ideal for Various Machining Operations
5-Point Description
- High-Quality Construction: Made from durable alloy steel.
- Optimized Cutting Edge: 75° angle for efficient turning.
- Versatile Compatibility: Supports a range of CNMG series blades.
- Secure Clamping System: Includes HL1810 clamp and ML0620 screw.
- Easy Handling: Facilitated by L3.0 wrench for tool adjustments.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
