S20R-MCLNR12 Internal Turning Tool Holder
-
Product Overview
-
Specifications
-
Features and Benefits
-
Compatible Inserts and Accessories
-
M Type Tool Holder
-
Dimensions and Design
-
Insert Compatibility
-
Secure Clamping System
-
Why Choose S20R-MCLNR12?
Product Overview:

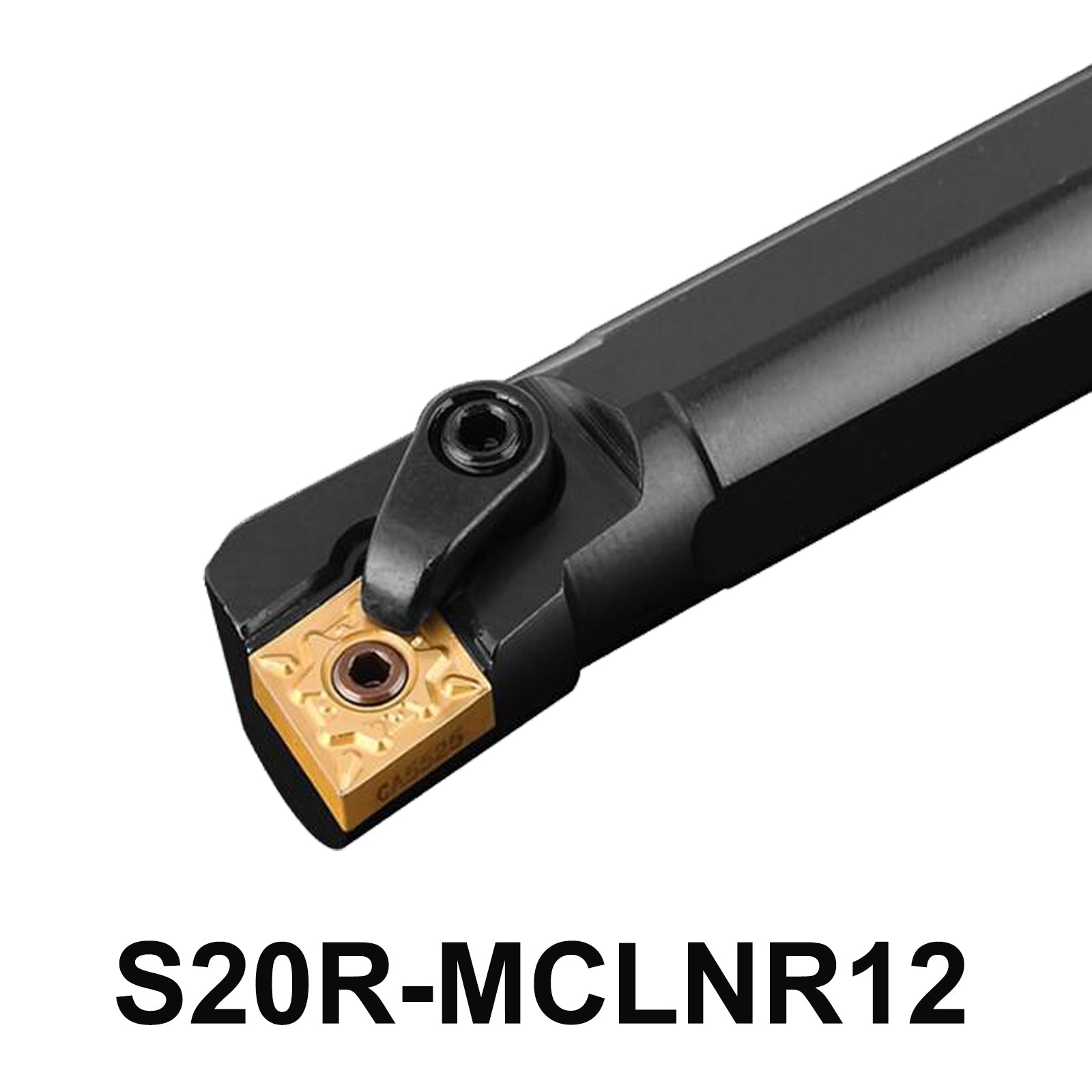

The S20R-MCLNR12 internal turning tool holder is specifically designed for precision machining in CNC lathes, machining centers, and mechanical manufacturing fields. This M-type boring bar, featuring a multi-lock system, ensures reliable and accurate internal turning operations.
Specifications:
- Designation: S20R-MCLNR12
- Diameter (ØD): 20mm
- Length (L): 200mm
- Tool Cutting Edge Angle: 95°
Features and Benefits:
- High Precision: Ensures accurate and efficient internal turning operations.
- Durable Construction: Designed to withstand the rigorous demands of CNC machining.
- Versatile Compatibility: Compatible with various CN inserts, including CN 1204, CN 431, CN 432, and CN 433.
- Easy to Use: Screw type cylindrical turning tool for straightforward installation and operation.
Compatible Inserts and Accessories:
- Inserts: CN 1204, CN 431, CN 432, CN 433 (insert not included)
- Clamp: HL1810
- Pin: CTM617
- Screw: ML0620
- Wrench: L3.0
Why Choose S20R-MCLNR12? The S20R-MCLNR12 internal turning tool holder is perfect for machinists seeking high precision and reliability in their internal turning operations. Its robust construction, multi-lock system, and compatibility with a range of inserts make it a valuable addition to any professional machining setup.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
