Features:

• Material: Alloy Steel
• Tool Holder Type: Internal Boring Bar, Left Tool Holder
• Cutting Edge Angle: 62.5°
• Relief Angle of Blade: 0°
• Diameter of Handle: 20mm
• Total Length: 200mm
• Length of Cutting Blade: 11mm
• Pin: CTM511
• Clamp: HL1810
• Screw: ML0625
• Wrench: L2.0 L3.0
• Insert Compatibility: DNMG110404 DNMG110408 DNMG331 DNMG332

5-Point Description and Overview:

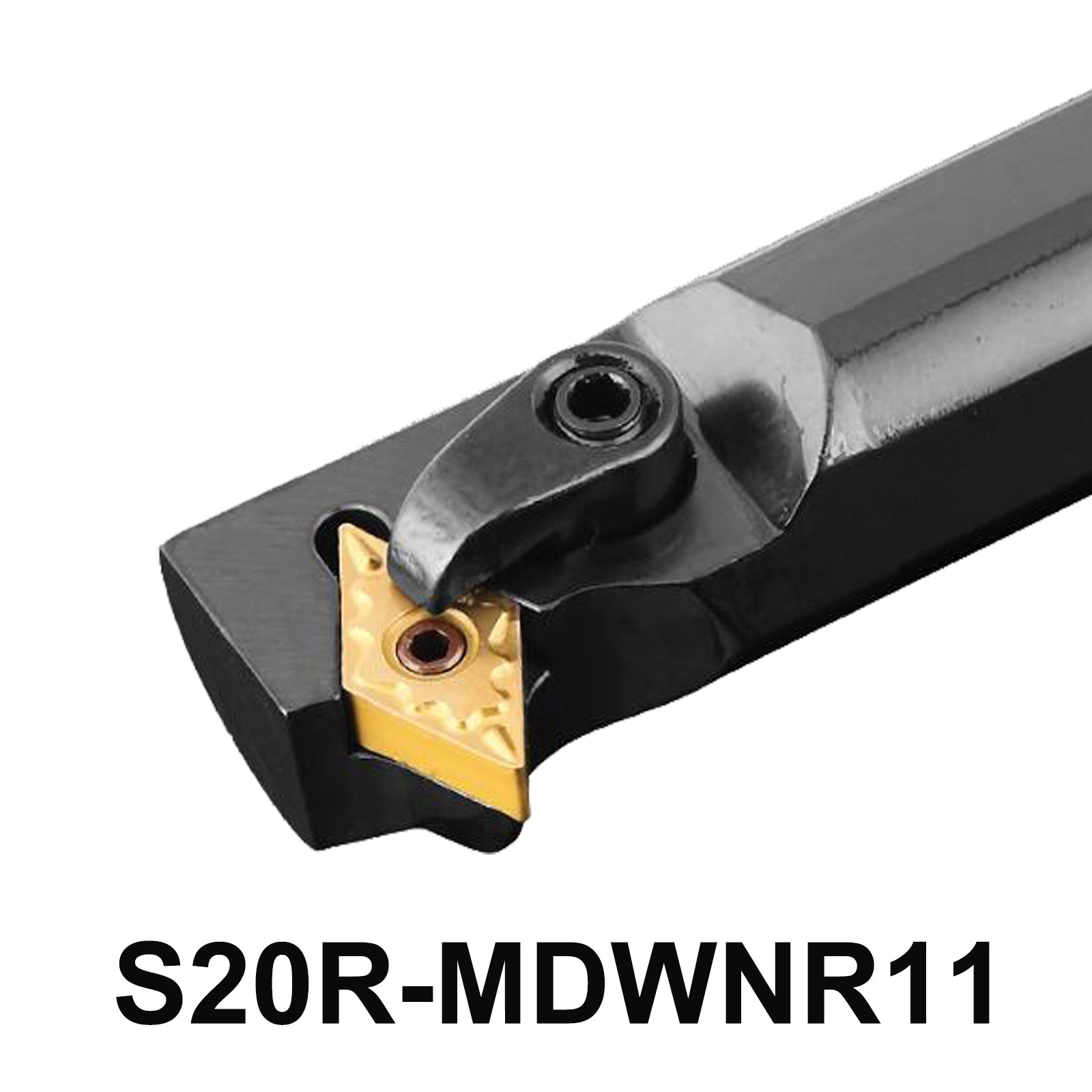

1. Precision Machining Tool: The S20R-MDWNR11 is a right-hand internal boring bar designed for CNC machine tools and lathes, crafted from durable alloy steel.

2. Optimized Cutting Edge: Features a 62.5° cutting edge angle and 0° relief angle, ensuring efficient chip control and smooth surface finishing during internal turning operations.

3. Multi-Lock System: Equipped with an M-type multi-lock system, providing secure clamping and stability for precise machining.

4. Dimensions: Handle diameter of 20mm, total length of 200mm, and a cutting blade length of 11mm, offering versatility and ease of handling.

5. Compatibility and Accessories: Comes with essential accessories including CTM511 pin, HL1810 clamp, ML0620 screw, L2.0 and L3.0 wrenches, and supports DNMG110404, DNMG110408, DNMG331, and DNMG332 inserts.

Applications:

1. Internal Turning: Ideal for internal turning operations on CNC lathes and machine tools. The 62.5° cutting edge angle and secure clamping ensure precise and efficient machining of internal surfaces.
2. Boring Operations: Well-suited for boring applications where precise diameter adjustments and smooth finishes are required.
3. Facing Operations: Capable of performing facing operations to create flat surfaces on workpieces.
4. Grooving and Parting: Suitable for grooving and parting operations, enabling clean and controlled cuts in various materials.
   General Purpose Machining:It accommodates a range of DNMG inserts,
