S20R-MTFNL16 CNC Boring Bar Tool Holder: Precision Internal Turning Tools Holder

• Specifications and Dimensions

• Features of S20R-MTFNL16

• Applications of CNC Boring Bar Tool Holder

• Detailed Description and Benefits

• How to Use the S20R-MTFNL16 Tool Holder

• Why Choose the S20R-MTFNL16 for Your Machining Needs

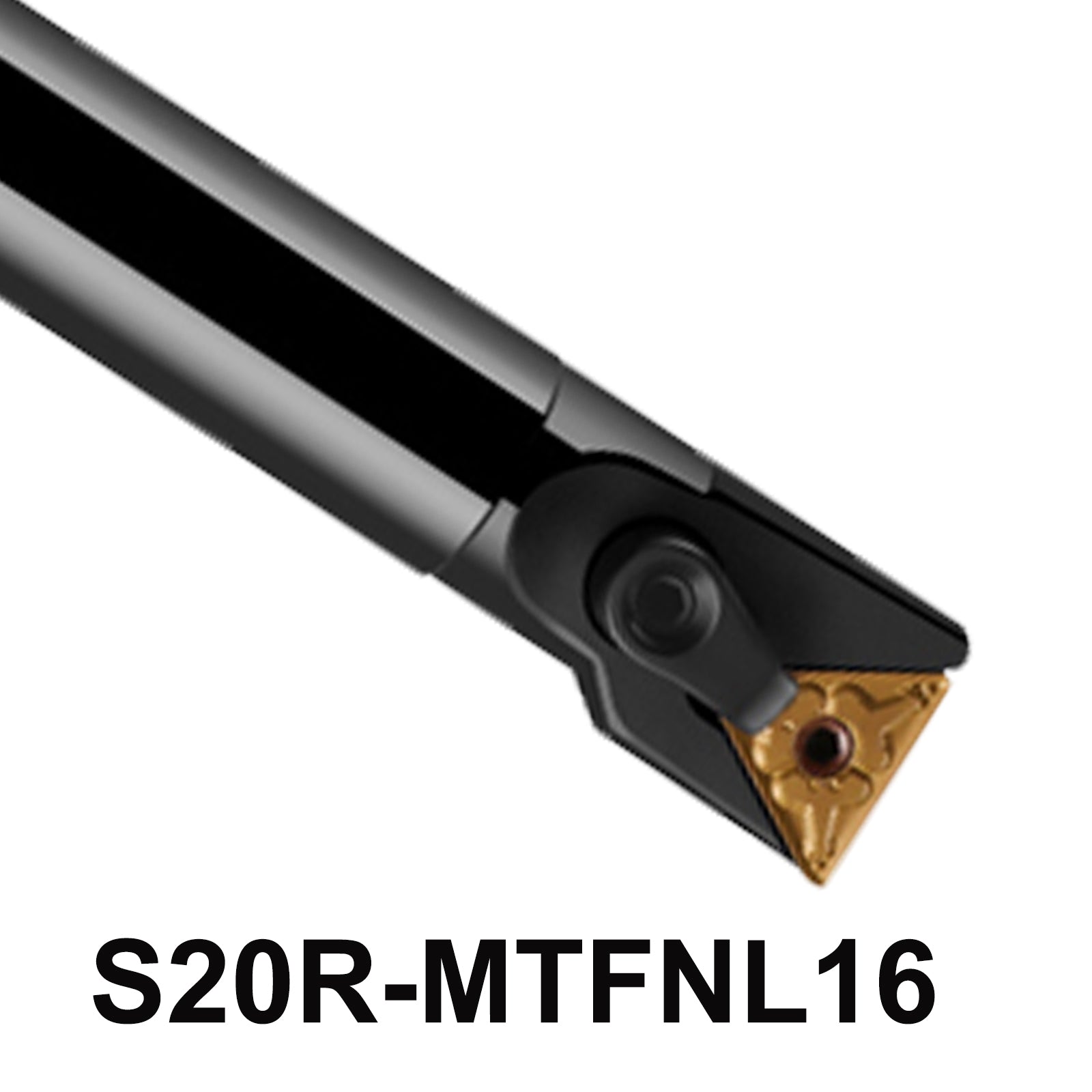

Product Name:S20R-MTFNL16 Internal lathe boring bar holder

Overview: The S20R-MTFNL16 CNC boring bar tool holder is engineered for precision internal turning operations, featuring a cutting edge angle of 91° and a relief angle of 0°. Crafted from high-quality alloy steel with an M-type multi-lock system, this tool holder ensures stability and durability.

Dimensions of the S20R-MTFNL16:

• Diameter of Handle: 20mm

• Total Length: 200mm

• Length of Cutting Blade: 16mm

• Compatibility: TNMG160404,TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333)

• Accessories: CTM511 pin, HL1810 clamp, ML0620 screw, L2.0 L3.0 wrenches

Features of the S20R-MTFNL16:

• Tool Holder Type: Internal turning tool holder designed for CNC machines.
• Material: Made from high-quality alloy steel, ensuring durability and resistance to wear.
• Design: Features an M-type multi-lock system for secure tool positioning and stability during machining operations.
• Cutting Edge Angle: 91° cutting edge angle for precise cutting and turning.
• Relief Angle: 0° relief angle, which enhances tool performance in internal turning applications.

Application: Primarily used in CNC machine tools and lathes, the S20R-MTFNL16 is suitable for a wide range of machining tasks, including internal turning and facing operations.

Advantages:

• Precision machining with a 91° cutting edge angle.
• Durable alloy steel construction for longevity.
• Secure M-type multi-lock system for enhanced stability.
• Versatility with compatibility for TNMG carbide inserts.
• Ideal for both roughing and finishing processes in CNC environments.

How to Use the S20R-MTFNL16 Tool Holder:

1. Insert Installation:Select the appropriate TNMG carbide insert based on your machining requirements (e.g., roughing, finishing).Use the provided wrenches (L2.0 and L3.0) to securely fasten the insert onto the cutting blade of the S20R-MTFNL16 tool holder.
2. Tool Holder Setup:Ensure the tool holder is compatible with your CNC machine’s tool post.Insert the tool holder into the tool post and use the clamp (HL1810) along with the screw (ML0620) to securely lock it in place.
3. Tool Positioning:Adjust the tool holder within the tool post to achieve the desired cutting depth and position relative to the workpiece.Verify that the tool holder is properly aligned to avoid vibrations and ensure accurate machining.
4. Maintenance:Regularly inspect the tool holder and carbide inserts for wear and damage.

Why Choose the S20R-MTFNL16 for Your Machining Needs:

1. Precision and Durability:The S20R-MTFNL16 is crafted from high-quality alloy steel, ensuring durability and longevity in demanding machining environments.Its 91° cutting edge angle and 0° relief angle contribute to precise machining results, especially in internal turning operations.
2. Versatility:Compatible with a variety of TNMG carbide inserts, the S20R-MTFNL16 offers versatility for different machining tasks ranging from roughing to finishing
3. Stability and Security:Equipped with an M-type multi-lock system, the tool holder provides secure clamping and stability during high-speed machining operations.
   This feature reduces vibrations and enhances machining accuracy.
4. Application Flexibility:Ideal for CNC machine tools and lathes, the S20R-MTFNL16 It excels in internal turning, facing, and other precision machining applications.
5. Cost-effectiveness:By offering reliable performance and durability, the S20R-MTFNL16 minimizes downtime and tool replacement costs, making it a cost-effective choice for machining operations.
