S20R-MTJNL16 CNC Boring Bar Tool Holder | Alloy Steel | 20mm Handle Diameter
Price shown is a starting point. Contact us for a precise quote based on your requirements.

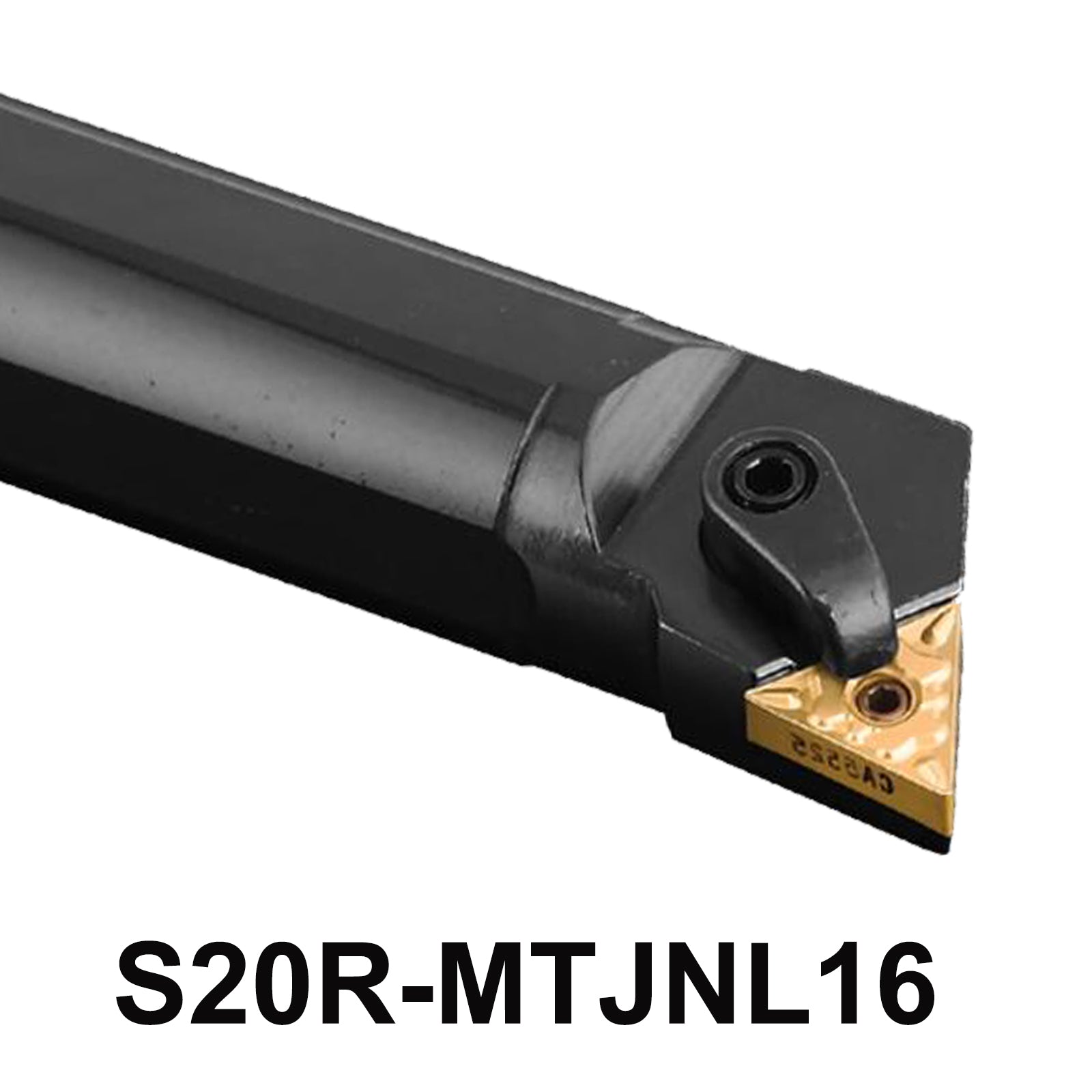

Product Name:S20R-MTJNL16 CNC Boring Bar Tool Holder
Overview:The S20R-MTJNL16 CNC Boring Bar Tool Holder Made from durable alloy steel, Featuring a 93° cutting edge angle and 0° relief angle,This tool holder accommodates a variety of TNMG inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), making it versatile for different machining needs. With a 20mm handle diameter and total length of 200mm, it includes essential accessories such as CTM511 pins, HL1810 clamps, ML0620 screws, and L2.0, L3.0 wrenches, facilitating easy setup and adjustment.
Detail Page:
- Material: Alloy Steel
- Model: S20R-MTJNL16
- Tool Type: Internal Turning Tools Holder
- Cutting Edge Angle: 93°
- Relief Angle of Blade: 0°
- Handle Diameter: 20mm
- Total Length: 200mm
- Length of Cutting Blade: 16mm
- Components: Pin CTM511, Clamp HL1810, Screw ML0620, Wrenches L2.0, L3.0
-
Compatible Blades: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
Application: Ideal for professionals in CNC machining, the S20R-MTFNL16 excels in internal turning tasks with its precise cutting geometry and durable alloy steel construction.
Advantages:
- Precision Cutting: 95° cutting edge angle enhances cutting efficiency and accuracy.
- Durable Build: Made from high-quality alloy steel for long-lasting performance.
- Versatile Compatibility: Compatible with various TNMG inserts for flexibility in machining tasks.
- Ease of Use: Includes essential accessories for easy setup and adjustment.
- High Productivity: Optimizes CNC lathe operations for increased productivity and quality.
- Advanced manufacturing technology: high reliability and high performance.
5-Point Product Description:
- High-Quality Construction: Made from durable alloy steel, the S20R-MTJNL16 CNC Boring Bar Tool Holder ensures reliability and longevity in machining operations.
- Optimized Cutting Geometry: Features a cutting edge angle of 93° and a 0° relief angle, enhancing chip control and surface finish quality during internal turning tasks.
- Versatile Compatibility: Supports a range of TNMG inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), suitable for various machining applications.
- Ease of Use: Includes CTM511 pins, HL1810 clamps, ML0620 screws, and L2.0, L3.0 wrenches for convenient setup and adjustments on CNC lathes and similar machines.
- Application: Ideal for CNC machine tools and lathes, the S20R-MTJNL16 excels in boring operations, offering precision and efficiency in cutting carbide inserts.
S20R-MTFNL16 CNC Boring Bar Tool Holder Internal Turning Tool Holder
Buy S20R-MTJNL16 CNC Boring Bar Holder | Alloy Steel, M-Type
S20R-MTJNL16 Detail Page and Applications
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
