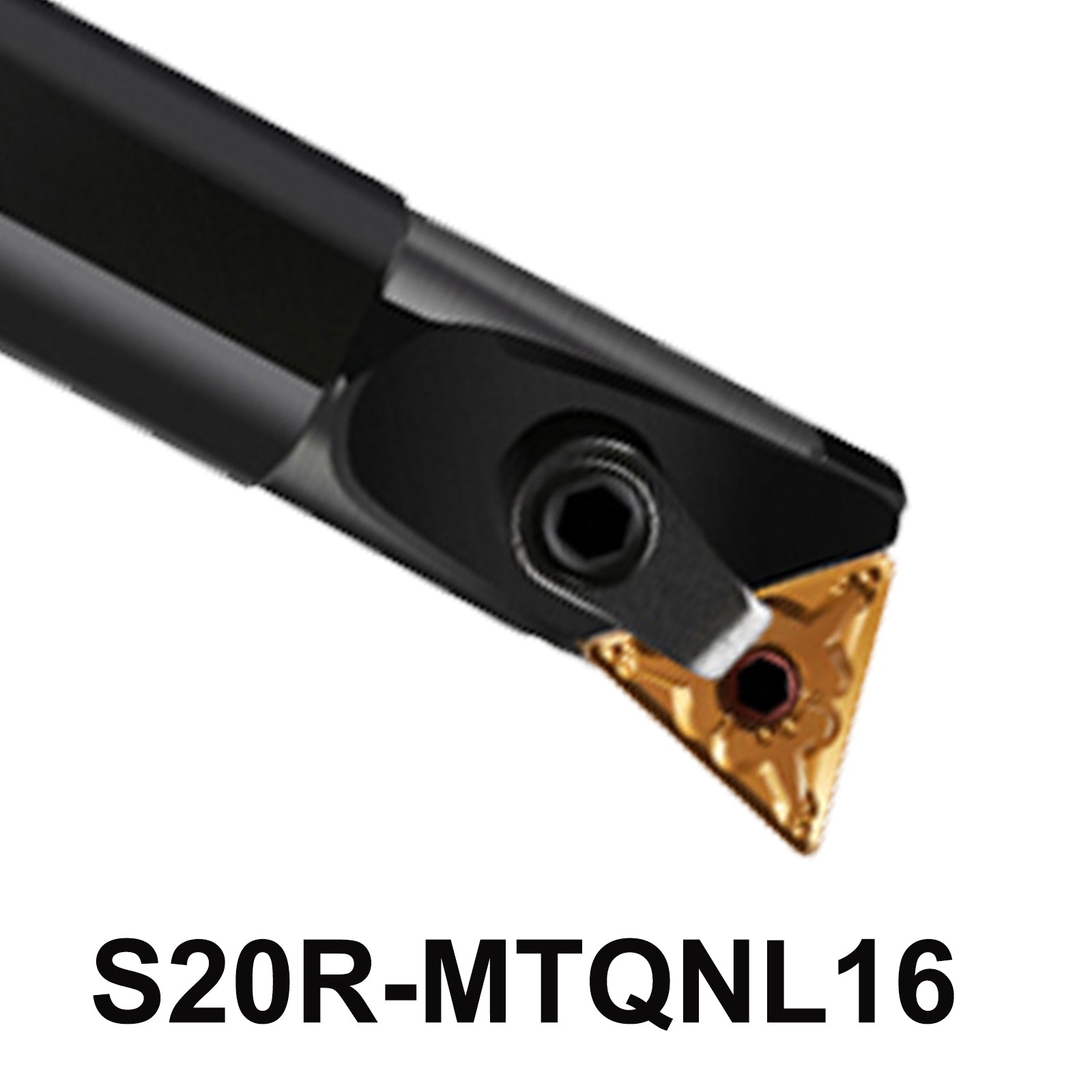

S20R-MTQNL16 Internal Boring Bar Tool Holder Multi-Lock System, 20x100mm
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S20R-MTQNL16 Internal Boring Bar Tool Holder boring bar for sale
-
Overview of S20R-MTQNL16
-
Specifications
-
Features of S20R-MTQNL16
-
Materials and Construction
-
Insert Compatibility
-
Applications
-
Advantages
-
Included Accessories
Overview:
- The S20R-MTQNL16 internal boring bar tool holder is designed for precision machining in CNC machine tools and lathes. It features a 105° cutting edge angle and is equipped with a robust M-type multi-lock system, ensuring stability and accuracy during operation.

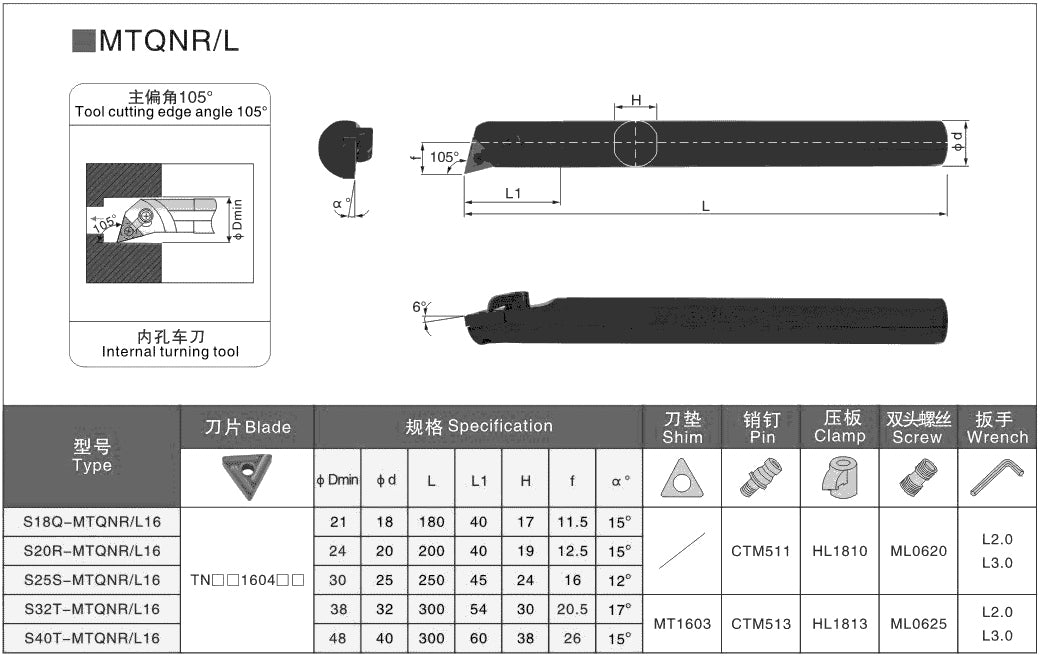

Specifications:
- Tool Holder Type: Left-hand tool holder
- Tool Cutting Edge Angle: 105°
- Relief Angle of Blade: 0°
- Internal Turning Tools Holder Material: Alloy steel, M-type (multi-lock system)
- Model: S20R-MTQNL16
- Diameter of Handle: 20mm
- Total Length: 200mm
- Length of Cutting Blade: 16mm
- Pin: CTM511
- Clamp: HL1810
- Screw: ML0625
- Wrenches Included: L2.0, L3.0
- Compatible Blade Inserts (Blade Types): TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
5-Point Description:
-
Precision Machining: Optimized with a 105° cutting edge angle and 0° relief angle for precise internal turning operations.
-
Durable Material: Made from high-quality alloy steel, providing durability and reliability in machining applications.
-
Multi-Lock System: Features an M-type multi-lock system for secure clamping of TNMG series carbide inserts (TNMG160402, TNMG160404, etc.), reducing vibration and improving machining stability.
-
Versatile Application: Suitable for use in CNC machine tools and lathes, offering versatility across a range of materials.
-
Comprehensive Set: Includes CTM511 pin, HL1810 clamp, ML0625 screw, and L2.0/L3.0 wrenches, ensuring convenience in setup and maintenance.
Applications：
- Internal Turning: Ideal for machining internal surfaces of workpieces with precision and efficiency.
- Boring Operations: Suitable for boring operations where accuracy and stability are critical.
- CNC Machining: Designed to work seamlessly with CNC machines, ensuring consistent performance in high-precision environments.
Advantages:
- Precision Machining: The tool holder features a 105° cutting edge angle and zero-degree relief angle, enhancing cutting performance and surface finish.
- Durability: Constructed from high-quality alloy steel, the tool holder offers durability and reliability, even under heavy machining conditions.
- Secure Clamping: Equipped with an M-type multi-lock system, it securely holds TNMG series carbide inserts (TNMG160402, TNMG160404, etc.), minimizing insert movement and ensuring stability during machining.
- Versatility: Compatible with a range of TNMG inserts, allowing versatility across various materials including steels, stainless steels, and non-ferrous metals.
- Ease of Use: Includes CTM511 pin, HL1810 clamp, ML0625 screw, and L2.0/L3.0 wrenches for convenient setup and maintenance, reducing downtime and optimizing workflow efficiency.
