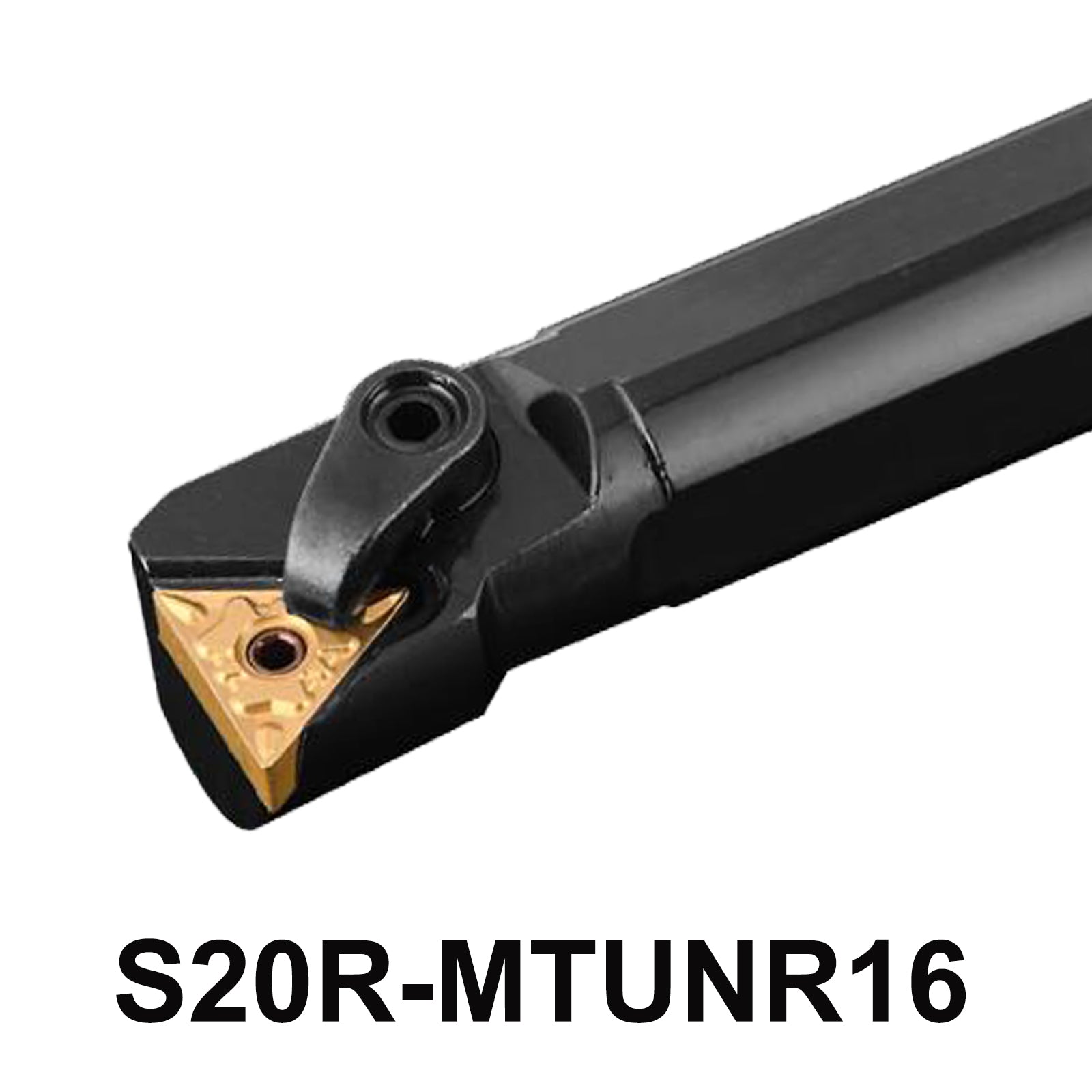

S20R-MTUNR16 Internal CNC Boring Bar Tool Holder 20*200mm CNC Lathe Cutter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Overview: The S20R-MTUNR16 is a robust CNC boring bar tool holder designed for internal turning operations. Crafted from high-quality alloy steel, it features a 20mm diameter handle and a 16mm cutting blade length. Equipped with a secure multi-lock system (M-type), it ensures stability during CNC machining processes. This tool holder includes essential accessories such as the CTM511 pin, HL1810 clamp, ML0620 screws, and wrenches L2.0 and L3.0. Compatible with a range of TNMG carbide inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), it is versatile for various cutting applications.
Internal Turning Tools Holder S20R MTUNR16 Boring Bar CNC Lathe Cutter Machine
-
Features and Specifications
-
Applications and Advantages
Features and Specifications:

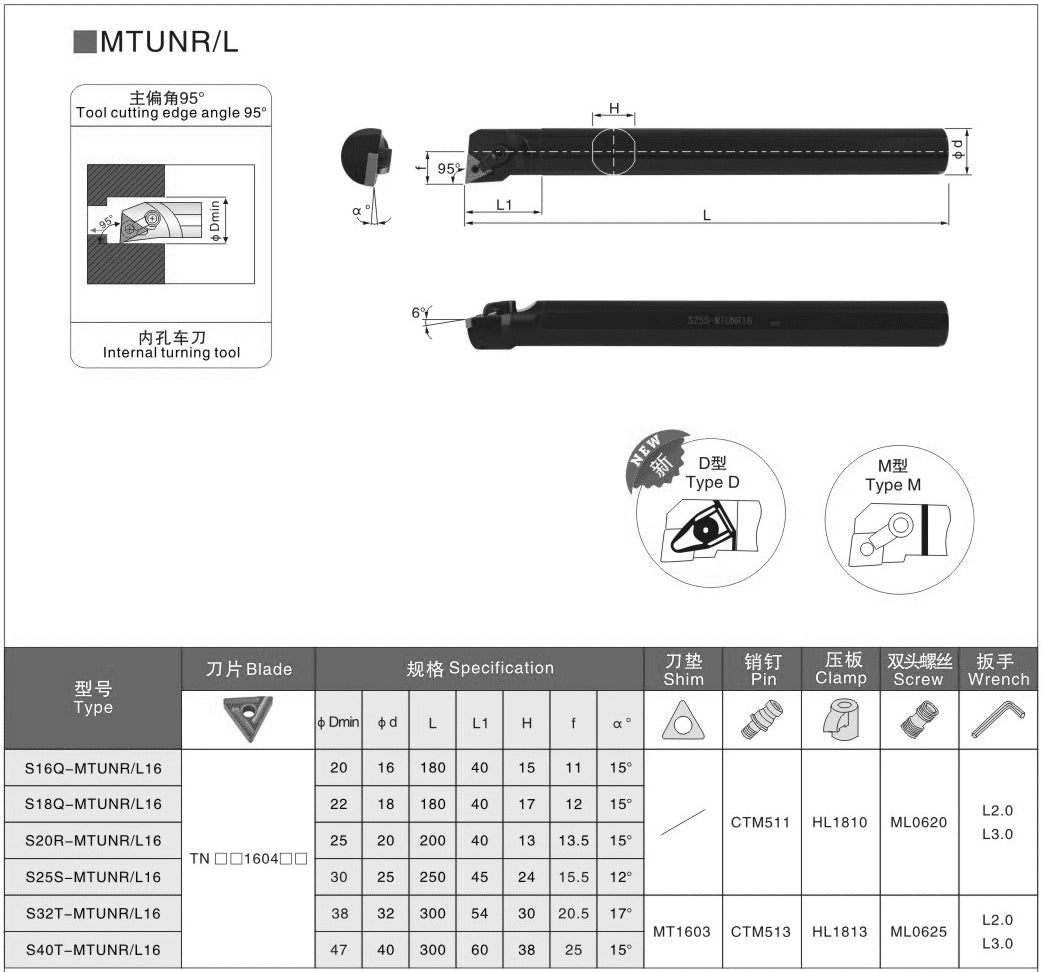

- Tool Holder Type: CNC Boring Bar
- Material: Alloy Steel
- Handle Diameter: 20mm
- Total Length: 200mm
- Cutting Blade Length: 16mm
- Tool Cutting Edge Angle: 95°
- Relief Angle of Blade: 0°
- Locking System: Multi-lock (M-type)
- Includes: CTM511 Pin, HL1810 Clamp, ML0620 Screws, Wrenches L2.0 L3.0
- Compatible Inserts: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
Applications:
- Ideal for internal turning operations on CNC machine tools and lathes
- Suitable for both roughing and finishing tasks
- Used in boring bar setups for precision machining
Advantages:
- Provides secure and stable tool positioning
- Durable alloy steel construction for longevity
- Versatile compatibility with various TNMG carbide inserts
- Enhances productivity and accuracy in CNC machining
- Essential for achieving high-quality finishes in metalworking
5-point product description:
-
Precision CNC Boring Bar Holder: The S20R-MTFNR16 is a precision-engineered CNC boring bar holder designed for exceptional performance in CNC lathes and machining centers.
-
Durable Alloy Steel Construction: Crafted from high-quality alloy steel, this tool holder offers durability and reliability in demanding machining applications.
-
Optimized Design for Stability: Featuring a multi-lock system (M-type), the S20R-MTFNR16 ensures secure tool positioning and stability during machining operations, enhancing machining accuracy.
-
Versatile Compatibility: Compatible with a range of TNMG carbide inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), it supports various cutting tasks from roughing to finishing.
-
Essential Tool for CNC Machining: Ideal for internal turning tasks, the S20R-MTFNR16 excels in both roughing and precision machining, making it indispensable for manufacturing industries requiring high-quality surface finishes and dimensional accuracy.
How to choose the right lathe tool holder：
- Type of Operation: Determine whether you need the tool bar for turning, milling, boring, threading, or another specific machining operation.
- Material: Consider the material you will be machining (e.g., steel, aluminum, titanium) as this influences the type of cutting tool and tool bar required.
- Understand Tool Bar Specifications:Tool Holder Type: Different operations require specific tool holders (e.g., turning tool holders, milling tool holders, boring bars).
- Size and Dimensions: Check the diameter of the tool bar and the length of the cutting blade.
-
Insert Compatibility: If using inserts, ensure they are compatible with the tool bar model and type. Check for availability of inserts suitable for your specific machining requirements.
