Internal Boring Bar Tool Holder S20R-MTWNR16 | CNC Lathe Tool Holder

• Specifications

• Features

• Accessories

• Compatibility

• Applications

 Overview:

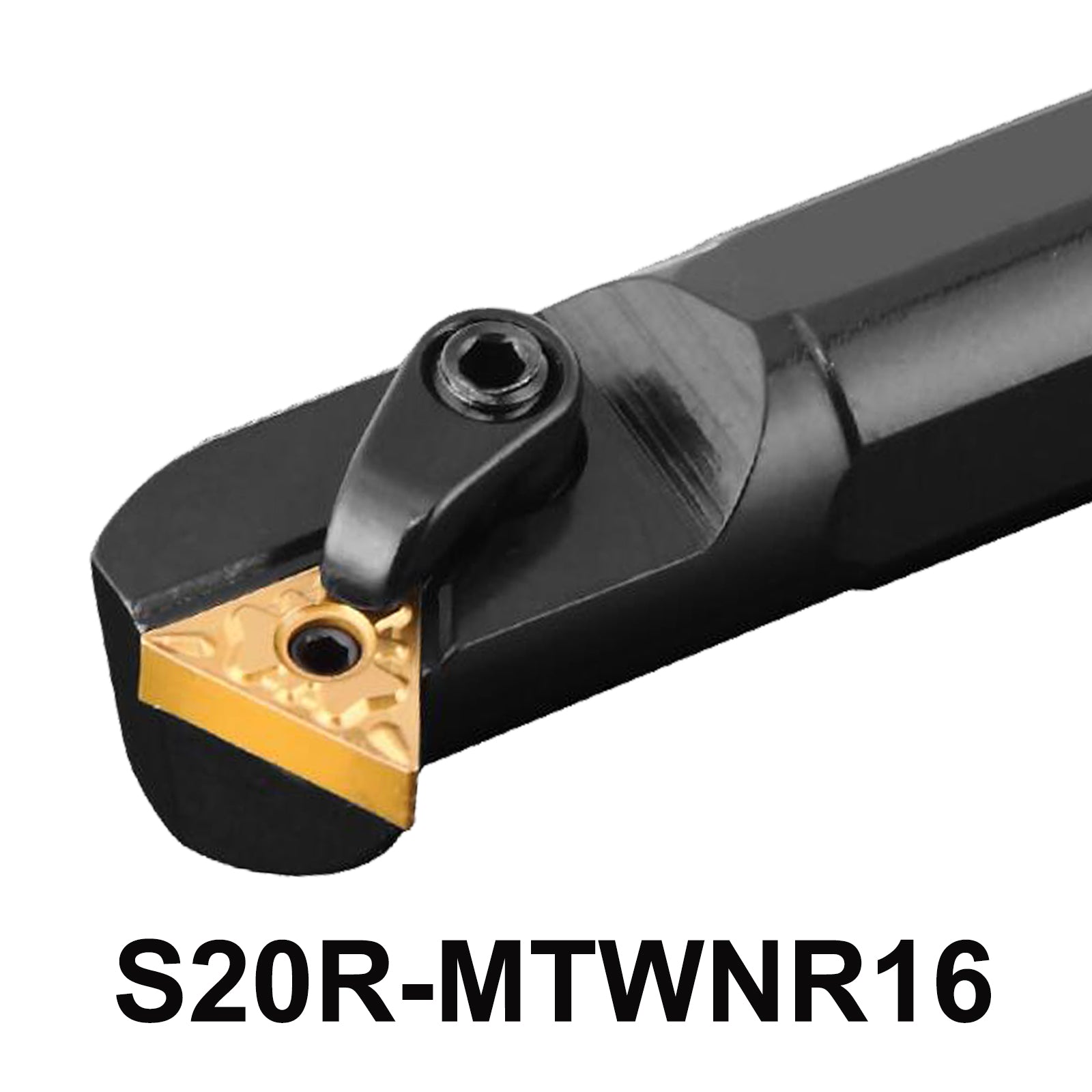

The S20R-MTWNR16 is an internal boring bar right tool holder designed for precision internal turning operations. It features a 60° cutting edge angle with a 0° relief angle of the blade. Made from durable alloy steel and equipped with a multi-lock system (M-type), this tool holder ensures stability and reliability in CNC machine tools and lathes. It is compatible with a range of TNMG carbide inserts for versatile machining tasks.

Specifications and Dimensions:

• Tool Holder Type: Internal Boring Bar Right Tool Holder
• Tool Cutting Edge Angle: 60°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• Model: S20R-MTWNR16
• Diameter of Handle: 20mm
• Total Length: 200mm
• Length of Cutting Blade: 16mm
• Included Accessories: CTM511 Pin, HL1810 Clamp, ML0620 Screw, L2.0, L3.0 Wrenches
• Compatible Inserts: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

5-point Description:

1. Precision Machining: Features a 60° cutting edge angle for accurate internal turning.
2. Durable Construction: Made from alloy steel with a 0° relief angle for enhanced durability.
3. Multi-Lock System: Includes an M-type system for secure locking and stability.
4. Complete Set: Comes with CTM511 Pin, HL1810 Clamp, ML0620 Screw, L2.0, L3.0 Wrenches for easy setup.
5. Versatile Applications: Suitable for use in CNC machine tools and lathes, compatible with TNMG carbide inserts for efficient cutting operations.

Applications:

Mainly used in CNC machine tools and CNC lathes for precise internal turning operations.

Benefits:

• Provides high precision with a 60° cutting edge angle and zero relief angle.

• Made from durable alloy steel for reliability and longevity.

• Features an M-type multi-lock system for enhanced stability during machining.

• Compatible with a variety of TNMG carbide inserts, offering versatility in machining applications


Package Includes:

• S20R-MTWNR16 Tool Holder
• Compatible Clamps, Pins, Screws, and Wrenches
