Overview:

The S20R-MVQNR16 is a high-performance internal turning tool holder designed for precision machining. Featuring a 117.5° tool cutting edge angle and a robust multi-lock system (M-type), it ensures stability and accuracy in CNC machine tools and lathes. Crafted from durable alloy steel, this tool holder is built to withstand demanding machining tasks.

Specifications and Features:

• Tool Cutting Edge Angle: 117.5°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• Model: S20R-MVQNR16
• Handle Diameter: 20mm
• Total Length: 200mm
• Cutting Blade Length: 16mm
• Pin: CTM511
• Clamp:HL2114
• Screw: ML0625
• Wrench: L2.0 L3.0
• Blade Compatibility: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333

Applications in CNC Machining:

Ideal for a wide range of internal turning operations, the S20R-MVQNR16 tool holder excels in creating precise contours, bores, and threads.

Purchase S20R-MVQNR16 Online:

the S20R-MVQNR16 Internal Turning Tool Holder on our independent website. For inquiries or to learn more about this product, contact us

Why Choose S20R-MVQNR16:

1. Precision Engineering: Engineered with a precise 117.5° tool cutting edge angle and 0° relief angle,
2. Durable Construction: Made from high-quality alloy steel, the S20R-MVQNR16 is robust and durable
3. Versatility: Compatible with a range of inserts including VNMG
4. Secure Clamping:M-type multi-lock system ensures secure clamping of inserts, providing stability during machining operations.
5. Ease of Use: Equipped with CTM511 pin, Clamp:HL2114,ML0625 screw, and T15 wrench,  changes and setup adjustments.

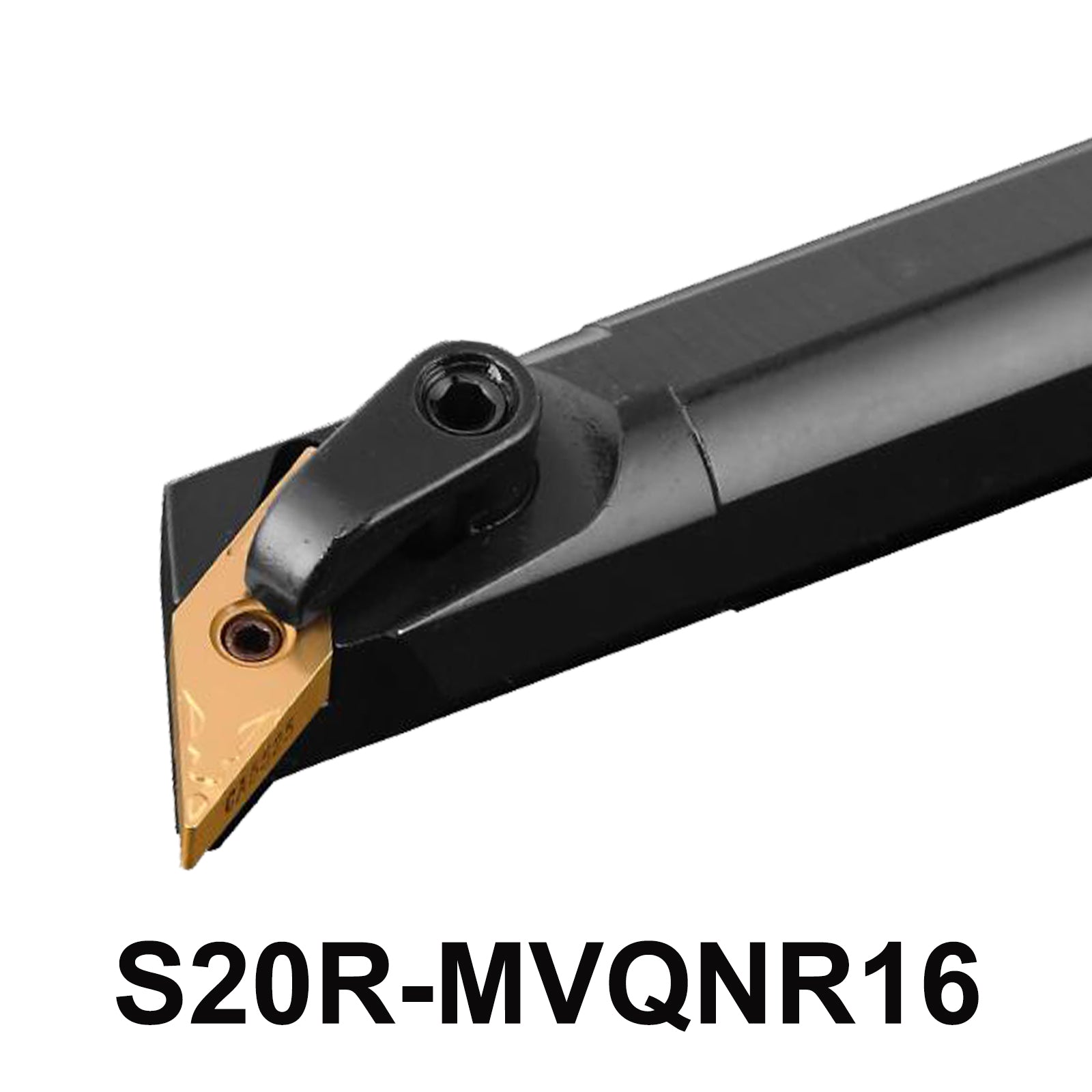

S20R-MVQNR16 Internal Turning Tool Holder boring bar for engine

• Overview of S20R-MVQNR16 Tool Holder




• Specifications and Features




• Applications in CNC Machining

• Key Features

• Technical Specifications

• Material and Design

• Compatible Inserts

• Usage in CNC Environments

5-point description

1. Precision Machining: Designed with a precise 117.5° tool cutting edge angle and a sturdy alloy steel construction, the S20R-MVQNR16 ensures accurate and reliable performance in internal turning operations.

2. Durable Build: Crafted from durable alloy steel, this tool holder offers robustness and longevity, making it ideal for continuous machining applications with reduced tool wear and maintenance.

3. Versatile Compatibility: Compatible with a variety of inserts including VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, TNMG333, the S20R-MVQNR16 adapts to different machining needs across materials such as steels and non-ferrous metals.

4. Secure Clamping System: Features an M-type multi-lock system that securely holds inserts in place, ensuring stability and precise machining results during CNC lathe and machining center operations.

5. User-Friendly Design: Equipped with CTM511 pin, Clamp;HL2114,ML0625 screw, and L2.0/L3.0 wrench for easy setup and insert changes, the S20R-MVQNR16 enhances operational efficiency and minimizes downtime in industrial settings.
