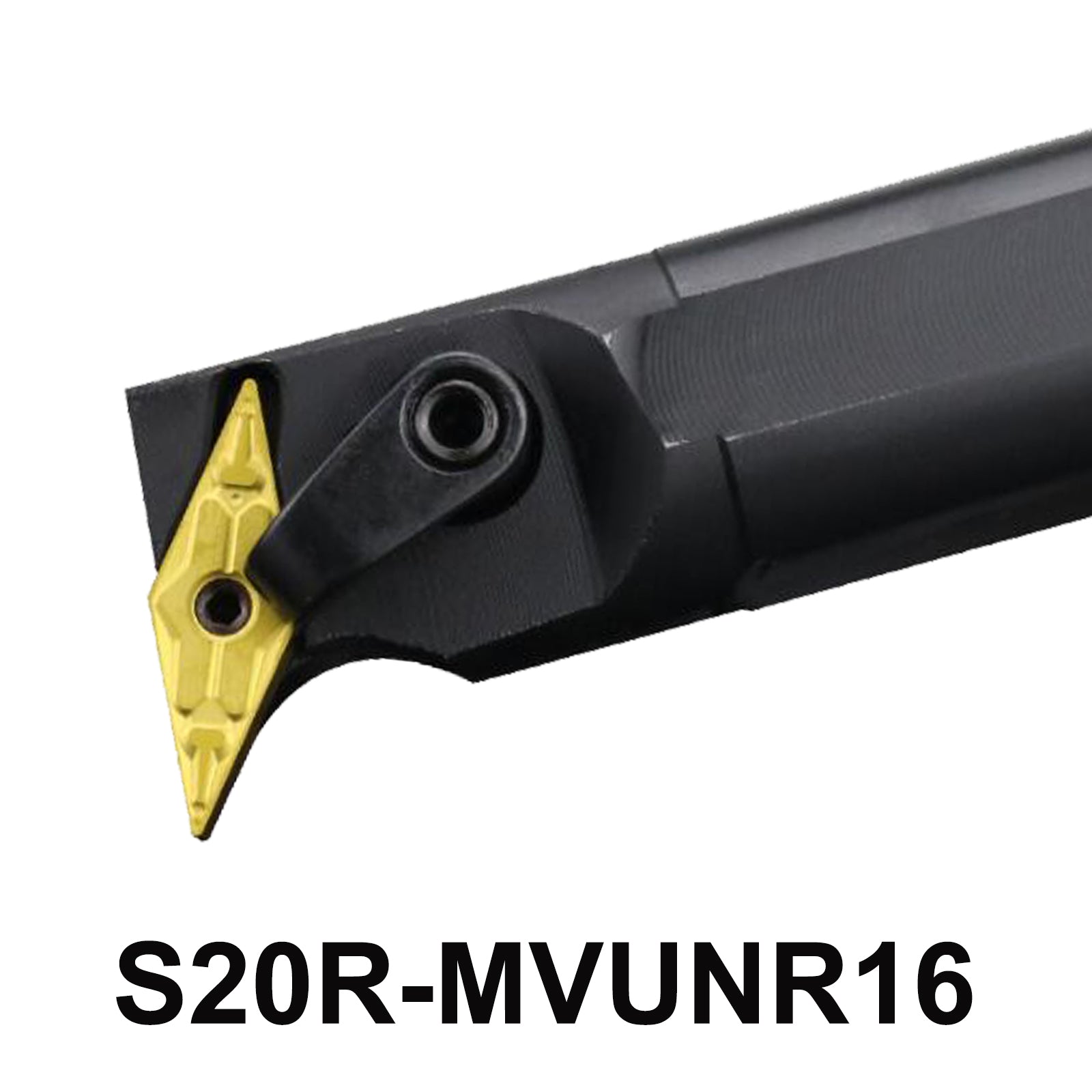

S20R-MVUNR16 Internal Boring Bar - Alloy Steel, 95° Cutting Edge Angle

• High Precision Tool Holder for CNC Lathes

• Durable and Reliable Multi-Lock System

• Compatible with Standard VNMG Inserts

• Overview of S20R-MVUNR16 Internal Boring Bar

• Specifications of S20R-MVUNR16 Boring Bar

• Applications of S20R-MVUNR16 Boring Bar

 Overview:

The S20R-MVUNR16 Internal Boring Bar is a precision tool holder designed for efficient machining in CNC machine tools and CNC lathes. It is made from durable alloy steel and features a multi-lock system (M-type) for secure tool holding. With a cutting edge angle of 95° and a length of 16mm, this tool holder ensures precise and effective cutting performance. It comes complete with VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, and VNMG333 blades, offering versatility across various machining applications.

Detail Page:

• Material: Alloy Steel
• Tool Type: Internal Boring Bar
• Cutting Edge Angle: 95°
• Multi-Lock System: M-type
• Diameter of Handle: 20mm
• Total Length: 200mm
• Length of Cutting Blade: 16mm
• Included Components: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333 blades
• Compatibility: Pin CTM511, Clamp HL2114, Screw ML0625, Wrench L2.0/L3.0

Application:

The S20R-MVUNR16 Internal Boring Bar is primarily used in CNC machine tools and CNC lathes, making it ideal for precision boring operations. It is also suitable for use in boring bar sets, ensuring efficient and accurate machining of various materials.

Advantages:

1. Precision Machining: Ensures accurate and smooth cuts with its 95° cutting edge angle.
2. Durability: Made from alloy steel for long-lasting performance in demanding machining environments.
3. Versatility: Compatible with a range of VNMG inserts for diverse machining applications.
4. Secure Grip: Features a reliable multi-lock system (M-type) for stable tool positioning.
5. Complete Set: Includes necessary components like pins, clamps, screws, and wrenches for immediate use.

Package Includes:

• S20R-MVUNR16 Tool Holder
• Compatible Clamps, Pins, Screws, and Wrenches

5-Point Product Description:

1. Precision Machining: Crafted from high-quality alloy steel, this internal boring bar ensures precise machining operations, enhancing productivity and surface finish in CNC machine tools and lathes.

2. Versatile Tool Holder: Designed for versatility, it accommodates various blade sizes (VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333), allowing flexibility in turning applications.

3. Sturdy Construction: Featuring a 20mm diameter handle and a total length of 200mm, this tool holder offers robustness and stability during heavy-duty cutting tasks, supported by the M-type multi-lock system for secure tool positioning.

4. Optimized Cutting Edge: The 95° cutting edge angle with 0° relief angle ensures efficient chip removal and reduces cutting forces, contributing to extended tool life and consistent performance.

5. Comprehensive Package: Complete with accessories including CTM511 pin, HL2114 clamp, ML0625 screws, and L2.0 L3.0 wrenches, this set provides everything needed for immediate use and maintenance.
