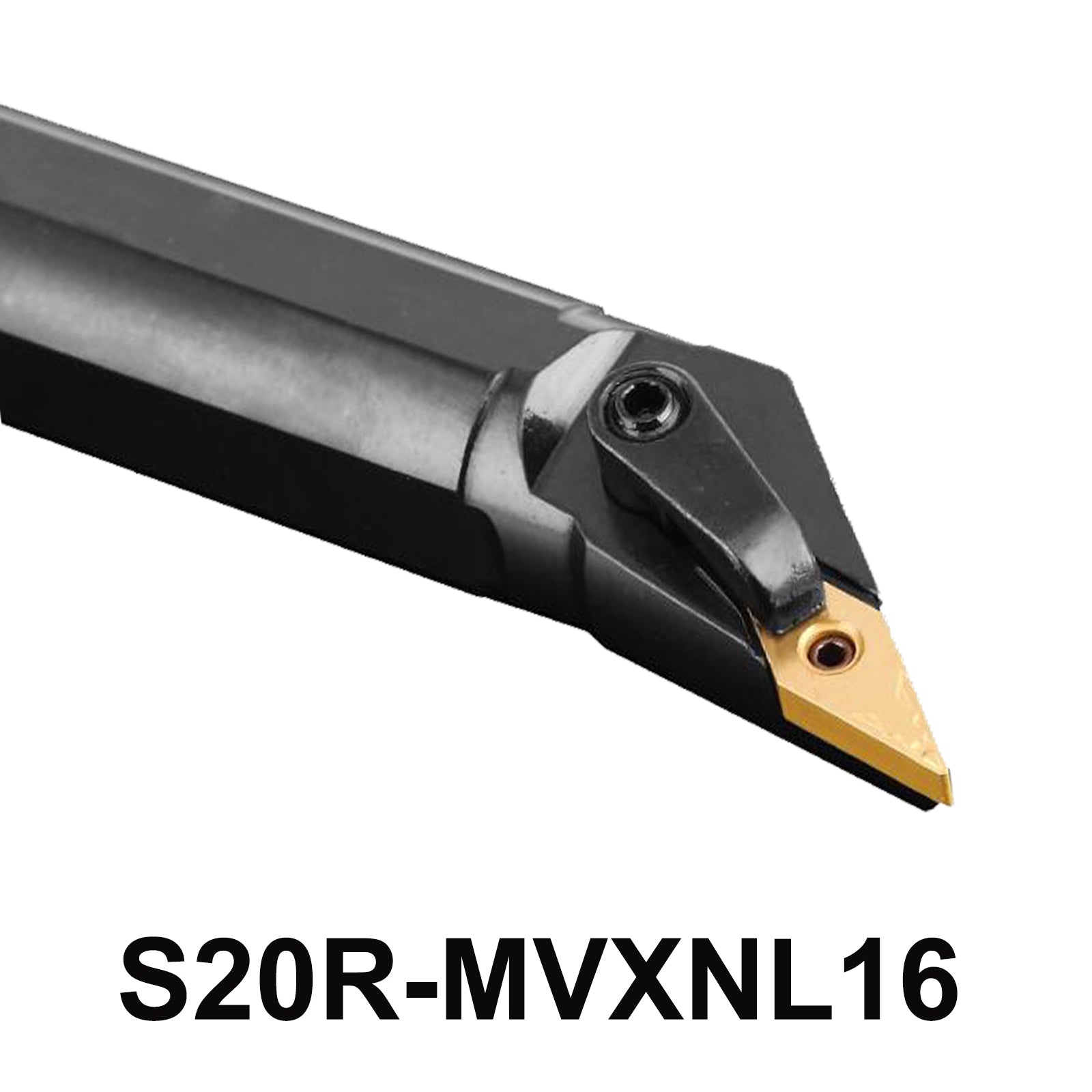

S20R-MVXNL16 CNC Boring Bar CNC Lathe Cutter Machine

Overview

Product Description:

The S20R-MVXNL16 CNC Boring Bar Tool Holder is engineered for high-precision internal turning operations on CNC machine tools and lathes. It boasts a 96° tool cutting edge angle and is crafted from durable alloy steel, ensuring longevity and reliability. The M-type multi-lock system provides secure clamping of VNMG carbide inserts ,This tool holder comes complete with CTM511 pin, HL2414 clamp, ML0625 screw, and L2.0/L3.0 wrench for comprehensive functionality.

Detail Page

Detail Page:

• Model: S20R-MVXNL16
• Tool Holder Type: Internal Boring Bar
• Tool Cutting Edge Angle: 96°
• Material: Alloy Steel
• Handle Diameter: 20mm
• Total Length: 200mm
• Cutting Blade Length: 16mm
• Multi-Lock System: (M-type)
• Included Inserts: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333
• Accessories: CTM511 pin, HL2414 clamp, ML0625 screw, L2.0/L3.0 wrench

Application

Where to Use?

• Ideal for CNC machine tools and CNC lathes.
• Suitable for boring bar setups and internal turning operations.

Advantages

Key Benefits

1. Precision Machining:
   Made from robust alloy steel, featuring a 96° cutting edge angle and 0° relief angle for accurate machining.

2. Multi-Lock System:
   Includes an M-type multi-lock system (HL2414 clamp) for secure tool positioning during intensive machining tasks.

3. Optimal Dimensions:
   20mm diameter handle and 200mm total length, with a 16mm cutting blade length, ensuring stability and efficiency.

4. Versatile Compatibility:
   Compatible with a range of VNMG carbide inserts (VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333) for various machining needs.

5. Application Excellence:
   Designed for high-performance CNC lathe operations, providing reliability and consistent results in tool cutting and turning.

5-Point Description:

1. Precision Machining: Ideal for internal turning with a 96° tool cutting edge angle.
2. Durable Construction: Made from high-quality alloy steel for reliability in machining operations.
3. Multi-Lock System: Ensures stable and secure clamping of VNMG carbide inserts.
4. Versatile Compatibility: Supports a range of VNMG carbide inserts (VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333).
5. Complete Set: Includes CTM511 pin, HL2414 clamp, ML0625 screw, and L2.0/L3.0 wrench for immediate use.

Package Includes:

• S20R-MVXNL16 Tool Holder
• Compatible Clamps, Pins, Screws, and Wrenches
