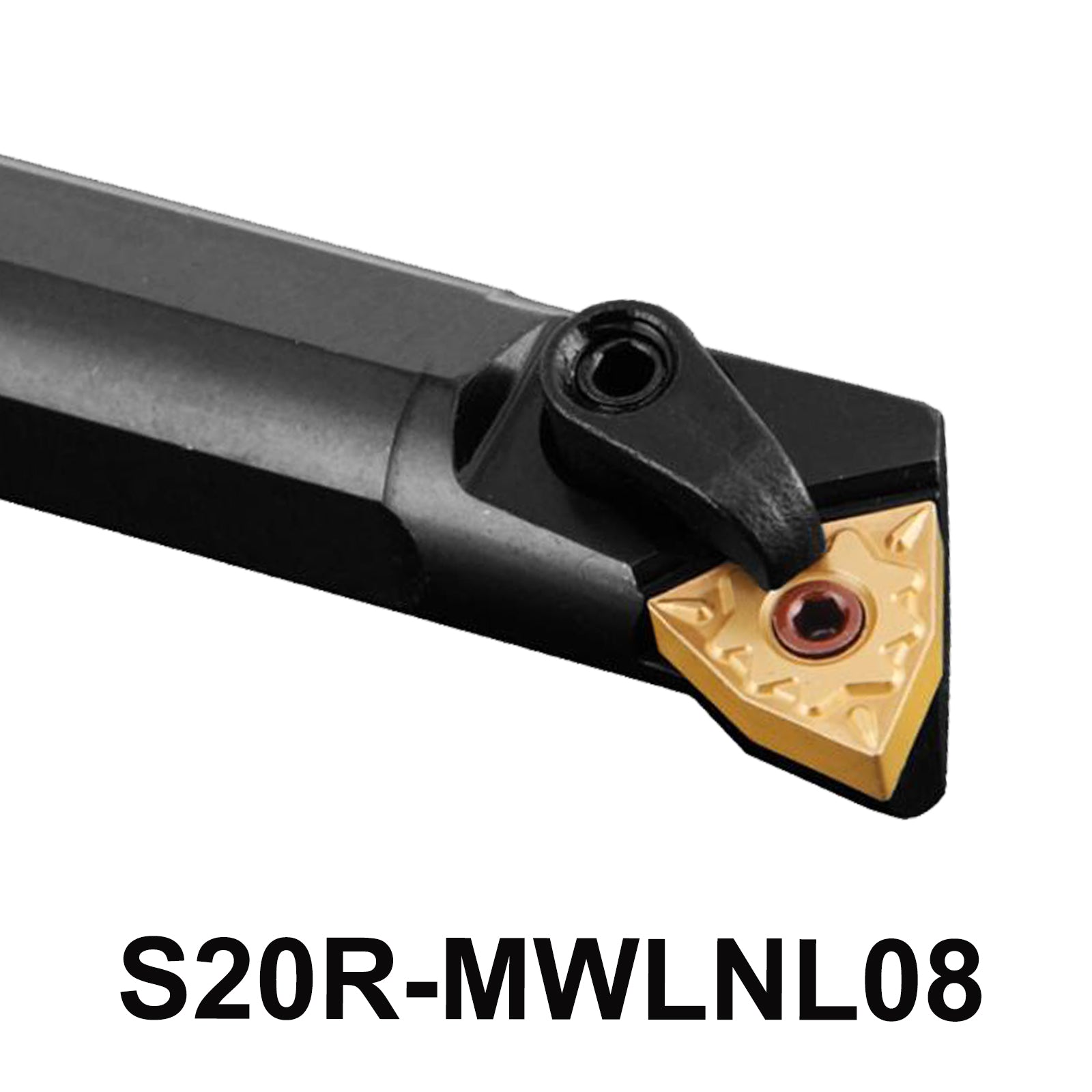

S20R-MWLNL08 CNC Boring Bar Tool Holder | High-Quality Alloy Steel 20*8mm
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Overview:
The S20R-MWLNL08 is a high-quality CNC boring bar tool holder designed for precision internal turning tasks. Constructed from durable alloy steel and featuring a secure multi-lock system, this tool holder ensures stable and accurate cutting. Ideal for use with CNC machine tools and lathes, the S20R-MWLNL08 is compatible with a range of blade types, making it a versatile addition to any machining setup.
Specifications:
-
Model: S20R-MWLNL08
-
Material: Alloy Steel
-
Tool Cutting Edge Angle: 95°
-
Relief Angle of Blade: 0°
-
Handle Diameter: 20mm
-
Total Length: 200mm
-
Length of Cutting Blade: 8mm
-
Pin: CTM613
-
Clamp: HL1810
-
Screw: ML0620
-
Wrench: L3.0
- Compatible Blades: WNMG080404, WNMG080408, WNMG080412, WNMG431, WNMG432, WNMG433
Application:
The S20R-MWLNL08 is specifically designed for use in CNC machine tools and CNC lathes, making it ideal for precision internal turning operations. It is commonly used in various machining applications, including boring bar sets and carbide insert cutting tasks.
Advantages:
-
Precision and Accuracy: The 95° tool cutting edge angle and 0° relief angle ensure precise and accurate internal turning operations.
-
Durability: Made from high-quality alloy steel, the tool holder offers excellent durability and long-lasting performance.
-
Stability: The multi-lock system ensures the blade remains securely in place, providing excellent stability during cutting.
- Versatility: Compatible with various WNMG blade types, making it suitable for a wide range of machining applications.
Choose Reason:
Choose the S20R-MWLNL08 CNC Boring Bar Tool Holder for its exceptional precision, durability, and versatility. Whether you are working on CNC machine tools or lathes, this tool holder ensures stable and accurate cutting, making it an essential addition to your machining toolkit.
CNC Boring Bar Tool Holder S20R-MWLNL08
-
Precision Internal Turning Tool
-
Multi-Lock System for Secure Blade Position
-
High-Quality Alloy Steel Construction
-
Specifications of S20R-MWLNL08
-
Key Features and Benefits
-
Application and Use Cases
5-Point Product Descriptio
- Durable Construction: Made from high-quality alloy steel for enhanced durability and long-lasting performance.
- Precision Cutting: Features a 95° tool cutting edge angle and a 0° relief angle for precise internal turning operations.
- Multi-Lock System: M-type multi-lock system ensures the blade stays securely in place, providing excellent stability during operation.
- Versatile Tool Holder: Compatible with various blade types including WNMG080404, WNMG080408, and WNMG080412.
- Comprehensive Kit: Comes with essential accessories such as a pin (CTM613), clamp (HL1810), screw (ML0620), and wrench (L3.0).
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
