Detail Page:

• Tool Holder Type: CNC Boring Bar Tool Holder
• Tool Cutting Edge Angle: 95°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• Model: S20R-MWLNR06
• Handle Diameter: 20mm
• Total Length: 200mm
• Length of Cutting Blade: 6mm
• Pin: CTM511
• Clamp: HL1511
• Screw: ML0520
• Wrench: L2.0
• Blade Compatibility: WNMG060404, WNMG060408, WNMG060412, WNMG331, WNMG332, WNMG333

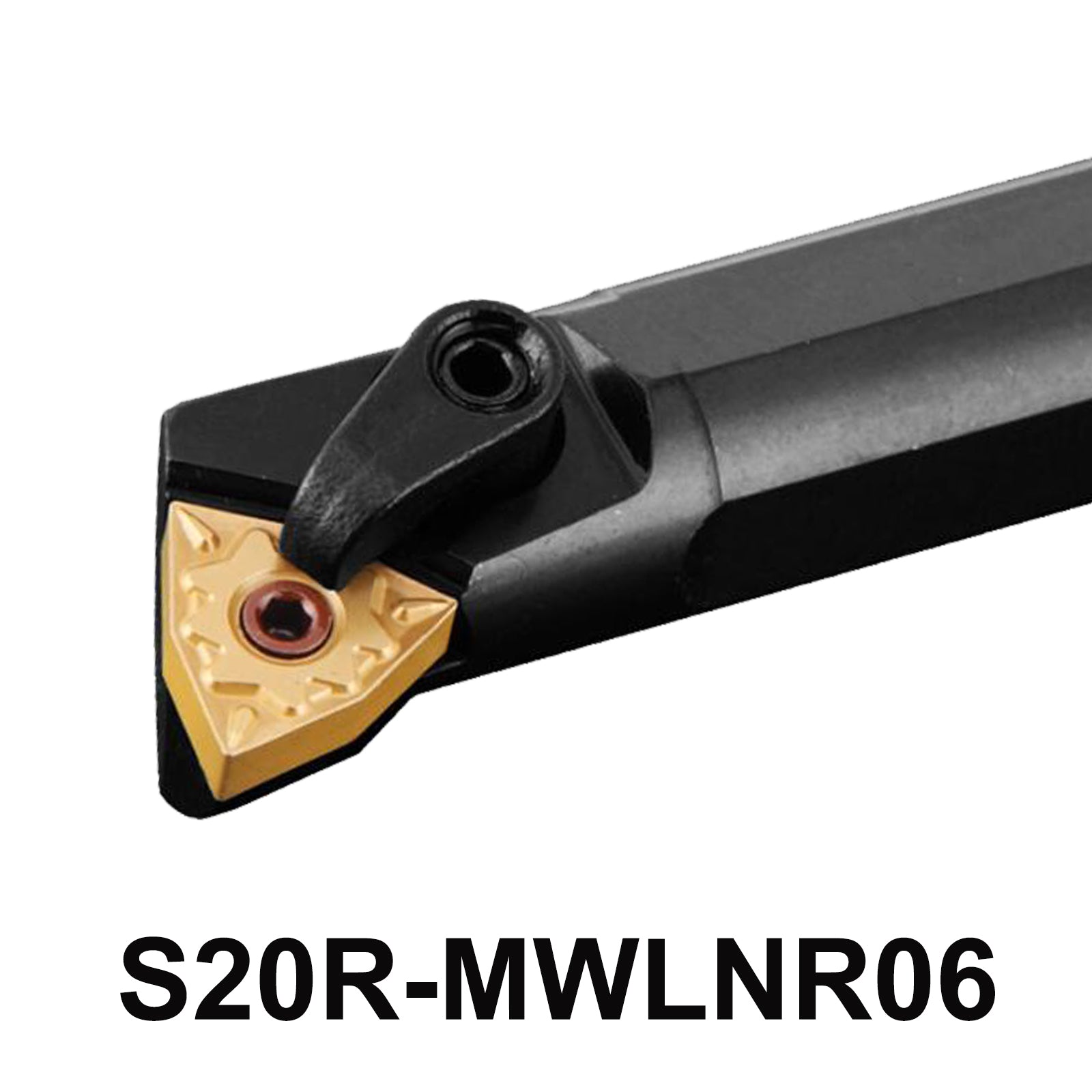

S20R-MWLNR06 CNC Boring Bar Tool Holder | 95° Cutting Edge Angle

• Precision Internal Turning Tool

• 95° Cutting Edge Angle

• Multi-Lock System (M-Type)

• Alloy Steel Construction

• Compatible with Various Carbide Inserts

• Application

• Advantages

• Specifications and Dimensions

Overview:

Discover the S20R-MWLNR06 CNC Boring Bar Tool Holder, crafted from durable alloy steel with a precise 95° cutting edge angle. Ideal for CNC machine tools and lathes, this tool holder ensures reliable performance in internal turning operations. It features an M-type multi-lock system for secure blade clamping and compatibility with WNMG060404, WNMG060408, WNMG060412, WNMG331, WNMG332, WNMG333 blades.

Application:

Perfect for CNC machine tools and lathes, this tool holder excels in precise internal turning operations. It supports various carbide inserts, enhancing versatility across different machining tasks.

Advantages:

• 95° cutting edge angle ensures efficient cutting performance.
• Alloy steel construction guarantees durability and reliability.
• Multi-lock system (M-type) enhances stability during machining operations.
• Zero-degree blade relief optimizes cutting accuracy and surface finish.
• Compatible with a wide range of carbide inserts for versatility in machining applications.

Main Features of the Finishing:

• Provides exceptional surface finish due to precise cutting geometry.
• Allows for high-precision internal turning operations.
• Ensures consistency and reliability in machining tasks.

Package Includes:

• S20R-MWLNR06 Tool Holder
• Compatible Clamps, Pins, Screws, and Wrenches
