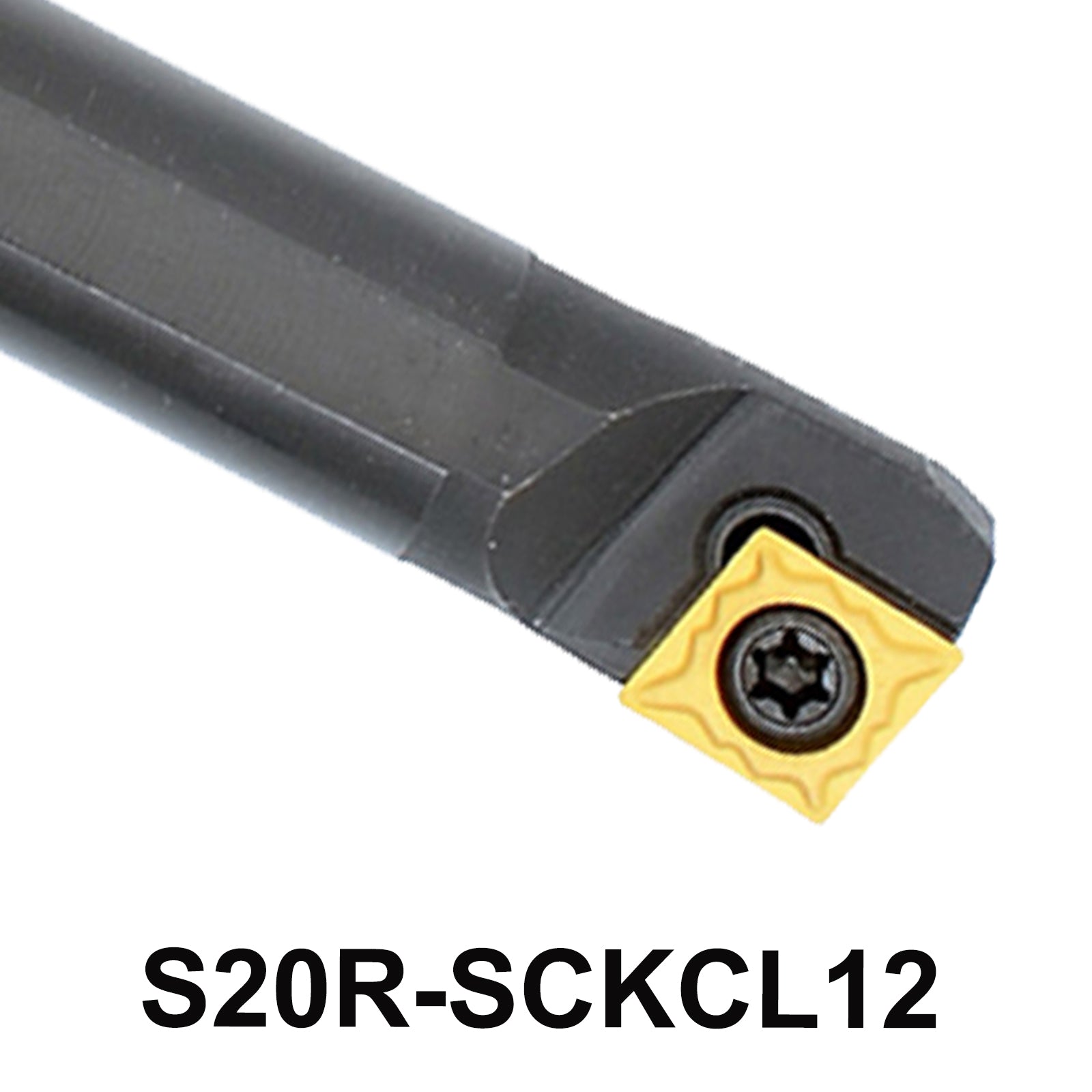

S20R-SCKCL12 Machine Boring Bar Tool Holder 20mm for CNC Lathe, Alloy Steel
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Package Includes:
- S20R-SCKCL12 Tool Holder
- Compatible Screws and Wrenches
S20R-SCKCL12 CNC Boring Bar Left Tool Holder S20R SCKCL12 small boring bar
-
Precision Engineering with S20R-SCKCL12 CNC Boring Bar
-
Advantages of Using S20R-SCKCL12 Tool Holder
-
Applications of S20R-SCKCL12 CNC Boring Bar
-
Compatible with Standard CCMT Inserts
-
Sturdy construction with 20 mm handle
-
75° cutting edge angle and 7° relief angle
5-Point Description:
- Precision Machining: Engineered for precise internal turning operations with CNC machinery.
- Durable Material: Made from high-quality alloy steel for long-lasting performance and reliability.
- Optimized Design: Features a 75° cutting edge angle and 7° relief angle for efficient chip removal and smoother cutting.
- Versatile Compatibility: Accepts CCMT120404, CCMT120408, CCMT120412, CCMT431, CCMT432, CCMT433 inserts.
- Easy Handling: Includes M5*10 screws and a T20 wrench for convenient setup and adjustments
Overview:
The S20R-SCKCL12 CNC boring bar tool holder is designed for precision internal turning operations, crafted from high-quality alloy steel. With a robust build and optimized cutting edge angles, it ensures efficient machining performance across various applications.
Specifications and Dimensions:
- Material: Alloy Steel
- Model: S20R-SCKCL12
- Diameter of handle: 20mm
- Total length: 200mm
- Length of cutting blade: 12mm
- Screw: M5*10
- Wrench: T20
- Compatible Blade Inserts: CCMT120404,CCMT120408,CMT120412.CCMT431, CCMT432, CCMT433
Application:
The S20R-SCKCL12 is suitable for precision machining tasks including facing, boring, and internal turning across various industries such as automotive, aerospace, and general engineering.
Advantages:
- Durable alloy steel construction for extended tool life.
- Optimized cutting edge and relief angles for enhanced cutting performance.
- Versatility with compatibility for multiple insert types.
Choose Reason:
Choose the S20R-SCKCL12 CNC boring bar tool holder for its robust construction, optimized design, and compatibility with a wide range of inserts, ensuring reliable and efficient machining operations.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
