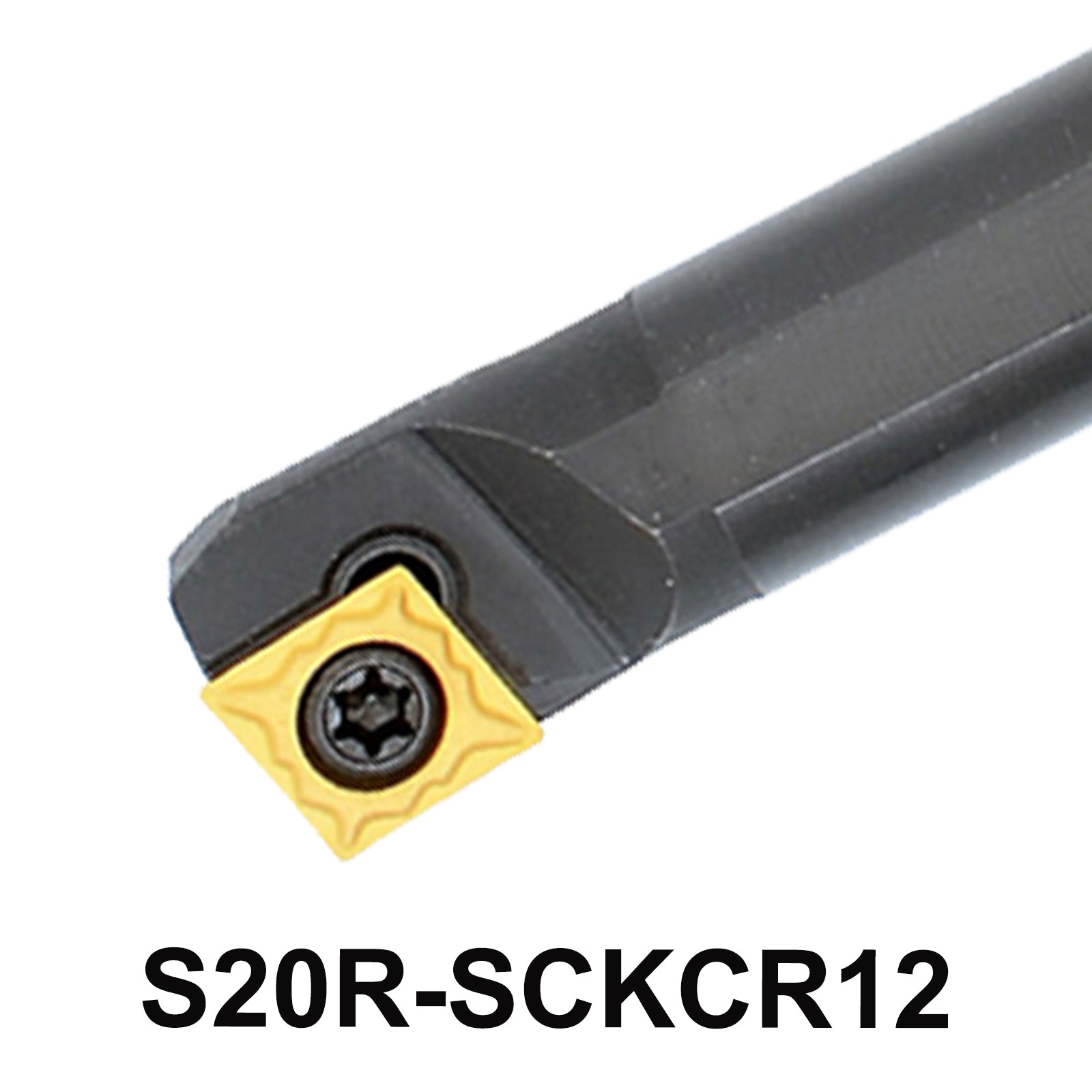

S20R-SCKCR12 Engine Boring Bar Tool Holder 20mm for CNC Lathe, Alloy Steel
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Package Includes:
- S20R-SCKCR12 Tool Holder
- Compatible Screws and Wrenches
S20R-SCKCR12 CNC Boring Bar Right Tool Holder S20R SCKCR12 small boring bar
-
Precision Engineering with S20R-SCKCR12 CNC Boring Bar
-
Advantages of Using S20R-SCKCR12 Tool Holder
-
Applications of S20R-SCKCR12 CNC Boring Bar
-
Compatible with Standard CCMT Inserts
-
Sturdy construction with 20 mm handle
-
75° cutting edge angle and 7° relief angle
5-Point Description:
- Precision Machining: Engineered for precise internal turning operations with CNC machinery.
- Durable Material: Made from high-quality alloy steel for long-lasting performance and reliability.
- Optimized Design: Features a 75° cutting edge angle and 7° relief angle for efficient chip removal and smoother cutting.
- Versatile Compatibility: Accepts CCMT120404, CCMT120408, CCMT120412, CCMT431, CCMT432, CCMT433 inserts.
- Easy Handling: Includes M5*10 screws and a T20 wrench for convenient setup and adjustments
Overview:
The S20R-SCKCR12 CNC boring bar tool holder is designed for precision internal turning operations, crafted from high-quality alloy steel. With a robust build and optimized cutting edge angles, it ensures efficient machining performance across various applications.
Specifications and Dimensions:
- Material: Alloy Steel
- Model: S20R-SCKCR12
- Diameter of handle: 20mm
- Total length: 200mm
- Length of cutting blade: 12mm
- Screw: M5*10
- Wrench: T20
- Compatible Blade Inserts: CCMT120404,CCMT120408,CMT120412.CCMT431, CCMT432, CCMT433
Application:
The S20R-SCKCR12 is suitable for precision machining tasks including facing, boring, and internal turning across various industries such as automotive, aerospace, and general engineering.
Advantages:
- Durable alloy steel construction for extended tool life.
- Optimized cutting edge and relief angles for enhanced cutting performance.
- Versatility with compatibility for multiple insert types.
Choose Reason:
Choose the S20R-SCKCR12 CNC boring bar tool holder for its robust construction, optimized design, and compatibility with a wide range of inserts, ensuring reliable and efficient machining operations.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
