S20R-SDJCR11 CNC Internal boring bar holders – Alloy Steel, 20mm Diameter, Precision Tooling
Price shown is a starting point. Contact us for a precise quote based on your requirements.

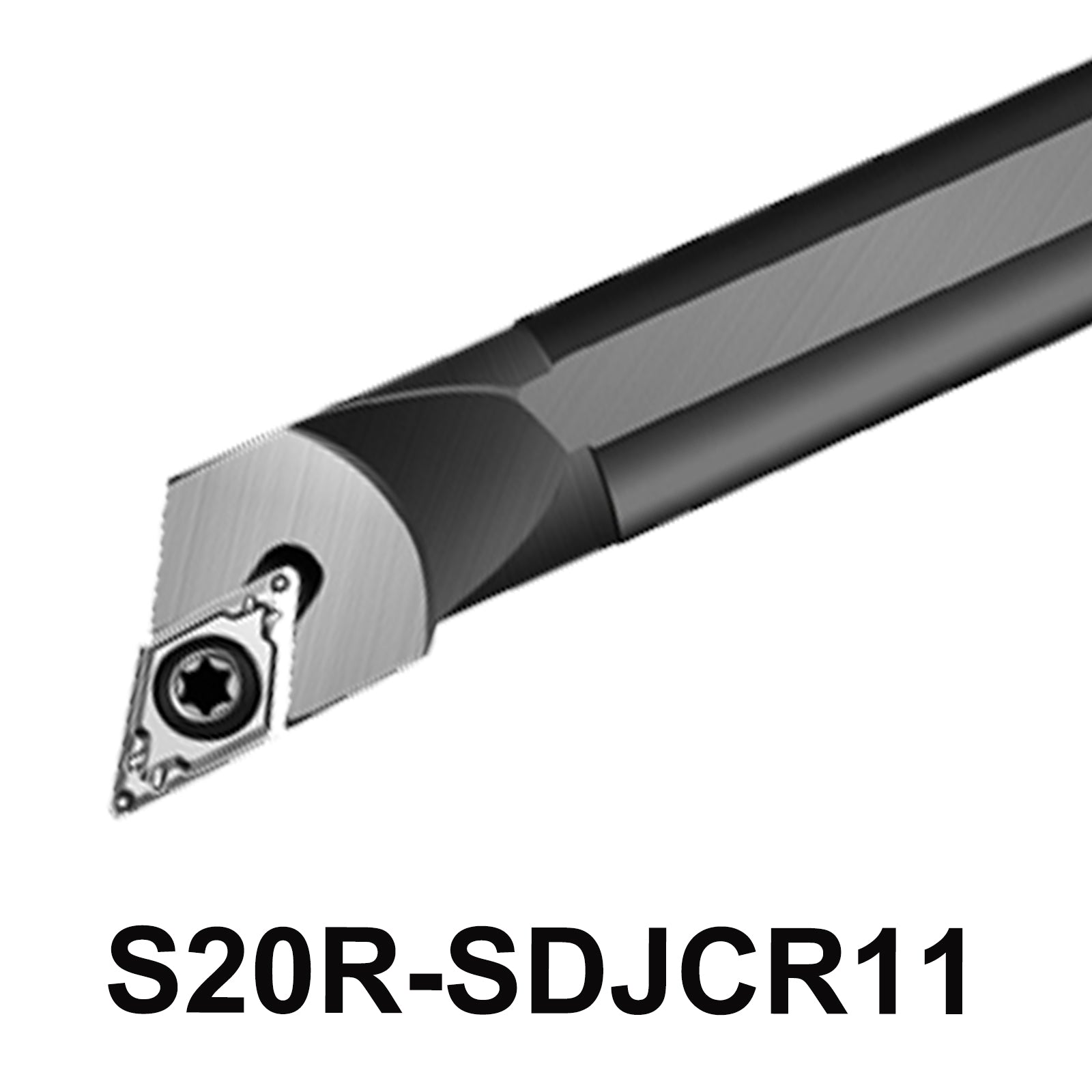

S20R-SDJCR11 CNC Internal boring bar holder lathe – Premium Alloy Steel Precision
-
Unmatched Precision and Durability with S20R-SDJCR11
Achieve exceptional internal turning results with the S20R-SDJCR11 CNC boring bar tool holder, designed for mechanical lathes and CNC machines
-

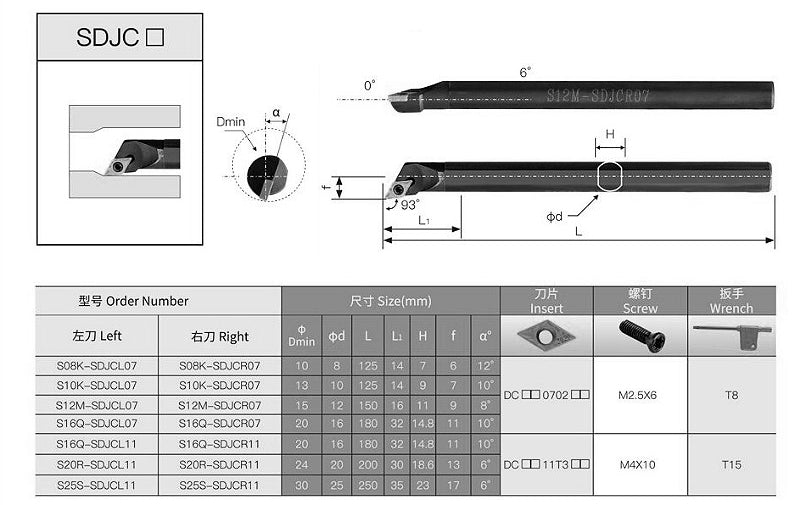

Comprehensive Specifications for Optimal Machining
Explore the detailed features of the S20R-SDJCR11, including a 93° cutting edge angle, 7° blade relief, and a robust 20mm handle diameter for superior performance
-
Versatile Tool Holder for Efficient Machining
Utilize the S20R-SDJCR11 with a range of DCMT carbide inserts for versatile and high-efficiency machining in CNC lathes and boring bar setups
-
Precision Engineering for Superior Results
-
Broad Compatibility for Various DCMT Inserts
-
Why the S20R-SDJCR11 Stands Out
5-Point Description:
- High Precision: Features a 93° cutting edge angle and 7° blade relief for accurate internal machining.
- Durable Alloy Steel: Constructed from premium alloy steel for long-lasting performance.
- Stable Design: 20mm handle diameter and 200mm length provide stability and control.
- Versatile Compatibility: Works with DCMT11T302, DCMT11T304, DCMT11T308, and other DCMT carbide inserts.
- Convenient Setup: Includes M4*10 screw and T15 wrench for straightforward installation and adjustments.
Overview:
The S20R-SDJCR11 CNC internal boring bar tool holder is engineered to deliver top-tier precision and durability for mechanical lathes and CNC machines. With a 93° cutting edge angle and a 7° blade relief, this tool holder provides accurate internal turning capabilities. The robust 20mm handle diameter and 200mm total length ensure stability and effective performance. It is designed to work with various DCMT carbide inserts, making it a versatile choice for diverse machining applications.
Key Features
- Cutting Edge Angle: 93°
- Relief Angle: 7°
- Material: Alloy Steel
- Handle Diameter: 20mm
- Total Length: 200mm
- Blade Length: 11mm
- Compatible Inserts: DCMT11T302,DCMT11T304,DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1,DCMT3(2.5)2
- Includes: M4*10 Screws, T15 Wrench
Application:
The S20R-SDJCR11 is perfect for internal boring and turning tasks in CNC machines and mechanical lathes. Its precise design ensures high-quality results in various machining environments.
Advantages:
- Enhanced Precision: Accurate internal turning with minimal error.
- Durable Construction: Alloy steel provides strength and longevity.
- Versatility: Compatible with a range of DCMT carbide inserts for flexible machining options.
- Stable Operation: Designed for stability and reliability during use.
- Ease of Use: Includes necessary accessories for quick and easy setup.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
